• Model NO.：HJJAS-500
• CNC or Not：CNC
• Voltage：380V,220V or Customer Need
• Motor Power：3kw
• Motor Rotary Speed：2800r,Min
• Working Air Pressure：0.5~0.8MPa
• Auto Feeding Length：5~700mm
• Cutting Width and Height：135X300
• Saw Blade Feeding Speed：0~3m,Min
• Saw Blade Specification：500X30 mm
• Color：Customized
• Transport Package：Woodn Package
• Specification：1800x1440x1300mm
• Trademark：Hiwoc
• Origin：Shandong, China
• HS Code：8461500090
• Production Capacity：40000PCS,Per Year

Basic Info.

Model NO. HJJAS-500 CNC or Not CNC Voltage 380V/220V or Customer Need Motor Power 3kw Motor Rotary Speed 2800r/Min Working Air Pressure 0.5~0.8MPa Auto Feeding Length 5~700mm Cutting Width and Height 135X300 Saw Blade Feeding Speed 0~3m/Min Saw Blade Specification 500X30 mm Color Customized Transport Package Woodn Package Specification 1800x1440x1300mm Trademark Hiwoc Origin Shandong, China HS Code 8461500090 Production Capacity 40000PCS/Per Year

Product Description

Window Machine Heavy duty Automatic CNC Corner Connector Cutting Saw
Feature
1. Used for aluminum corner connector cutting
2. Imported carbide saw blade is of accurate processing and high efficiency.
3. Only one time clamping, can achieve 6 meters corner section bar continuous cutting.
4. The use of imported control system, control system adopts the man-machine interface, high accuracy.
5. Imported carbide saw blade is of accurate processing and high efficiency.
6. Automatically cutting Aluminum Corner connector
7. Spraying cooling system
8. safety protection system.

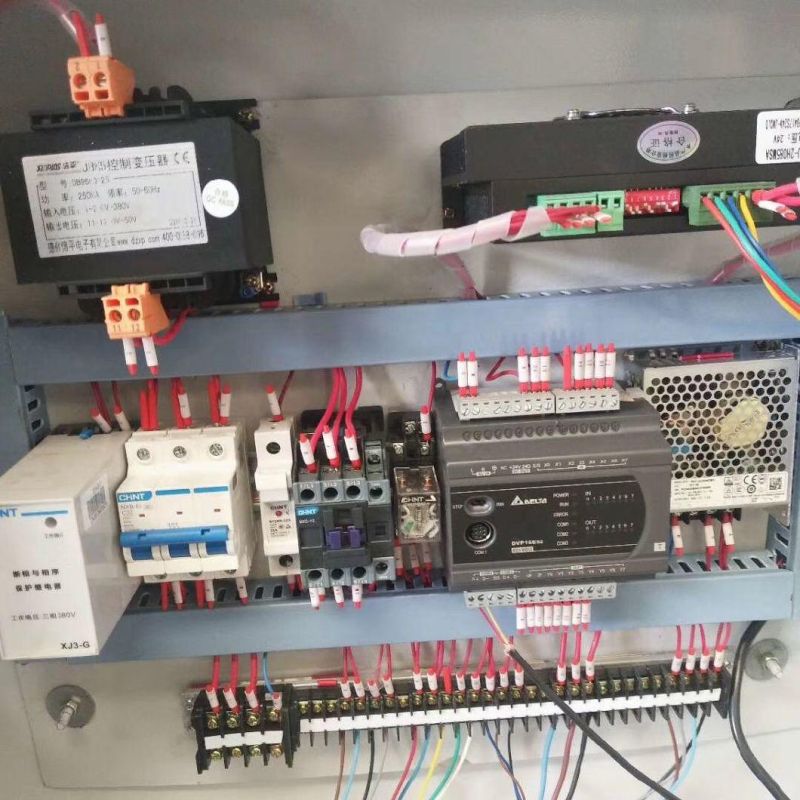

9. Taiwan Delta CNC control system with high efficiency and precision.
10. Feeding motion using linear motion bearing small movement resistance of high precision.
11. Feeding mechanism of automatic feeding system is stable and reliable with high efficiency.
12.With long holding profile bench
Parameters

Brand Name	Hiwoc
Power supply	380V 50Hz or Customer specification

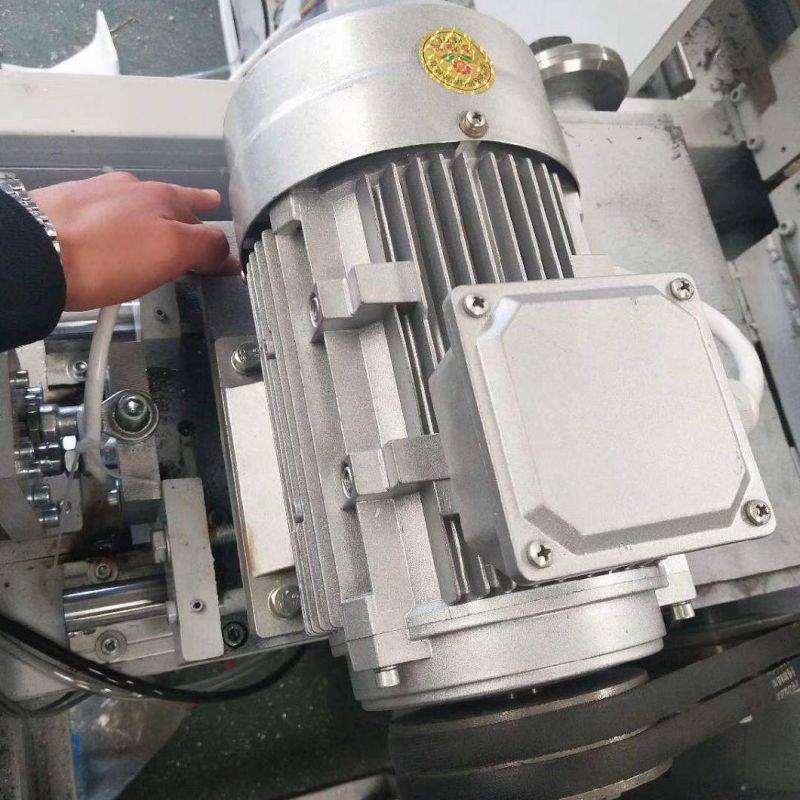

Main motor power:	3.0kw
Motor rotary speed	2880r/min
Air pressure	0.5-0.8Mpa
Air consumption	200L /min
Automatic feeding length	5~700mm
Saw blade dimension:	Φø500×ø30×4.4X Z120
Saw Cutting (W x H)	135x300mm
Cutting length	No limit
Cutting speed	0-3m/min
Repeat locating length	≤0.1mm
Angle cutting tolerance	±5′
Plane of cutting surface	≤0.10
Cutting profile surface roughness	Ra12.5µm
Overall dimension	1800x1440x1300mm
Weight:	860Kg



Standard accessory
Saw blade	1pc
piece supports	1set
Air Gun	1pc
Complete tooling	1set
Certificate	1pc
Operation Manual	1pc
Cooling Spray Device	2pcs



Optional Device

Dust Collector System
