• Model NO.：BX1600
• CNC or Not：CNC
• Voltage：Cutomized
• Input Power：7.5kw
• Work Speed：1.2-5.0m,Min
• Max. Glass Size：1600*2000mm
• Min. Glass Size：400*400mm
• Glass Thickness：<=40mm
• Oversize：3200*2100*1100mm
• Gross Weight：500kg
• Color：Customized
• OEM：Support
• Warranty Time：2 Years
• Transport Package：Film Plywood Case
• Specification：15000*1800*2630
• Trademark：Hiwoc
• Origin：China
• HS Code：84752990
• Production Capacity：500,Year

Basic Info.

Model NO. BX1600 CNC or Not CNC Voltage Cutomized Input Power 7.5kw Work Speed 1.2-5.0m/Min Max. Glass Size 1600*2000mm Min. Glass Size 400*400mm Glass Thickness <=40mm Oversize 3200*2100*1100mm Gross Weight 500kg Color Customized OEM Support Warranty Time 2 Years Transport Package Film Plywood Case Specification 15000*1800*2630 Trademark Hiwoc Origin China HS Code 84752990 Production Capacity 500/Year

Product Description

Feature1. Cleaing sector and water flow system adpots the stainless and rotproof material, which can be used long time.2. The central section divides into cleaning room, water absorbing room and dry room, it has excellent effect on cleaning and drying.3. Drying period adopts the sponge rollerwater absorption, heat drying.4. The transmission system adopts five level speed, which can realize the machine high efficiency application.

Parameter
Input Voltage	380V 50Hz /3P or As Customer need
Input Power	7.5Kw
Work  speed	1.2-5.0m/min
Max. glass size	1600*2000mm
Min. glass size	400*400mm
Glass thickness	<=40mm
Oversize	3200*2100*1100mm
Gross Weight	500KG



Main accessory
Solenoid valve	Germany FESTO
Motor	Anhui Sanyang (Best Chinese Motor Brand)
Electrical Button and Switcher	Schneider
AC Contactor and Circuit Breaker	Schneider
Approach Switch	Japan Omron
Water pump	China brand
Fan	China brand
temperature-controlled meter	Japan Ormon



Standard accessory
Heating stick.	1pcs
Sponge roller/Brush	1set
Electrical Button and Switcher	Schneider
Complete tooling	1set
Certificate	1pc
Operation Manual	1pc

Remarks
1. All the electrical elements, Circuit breaker protection and AC contactors are schneider or other world famous brand.
2. International CE standard high flexibility, high shielding cables.
3. Warranty time: 1 year
4. Quotation Valid: 90 days
5. Payment terms: 30%T/T as deposit, 70% balance made before shipment by T/T
6. Delivery time: 30 days upon receipt of 30% deposit by T/T

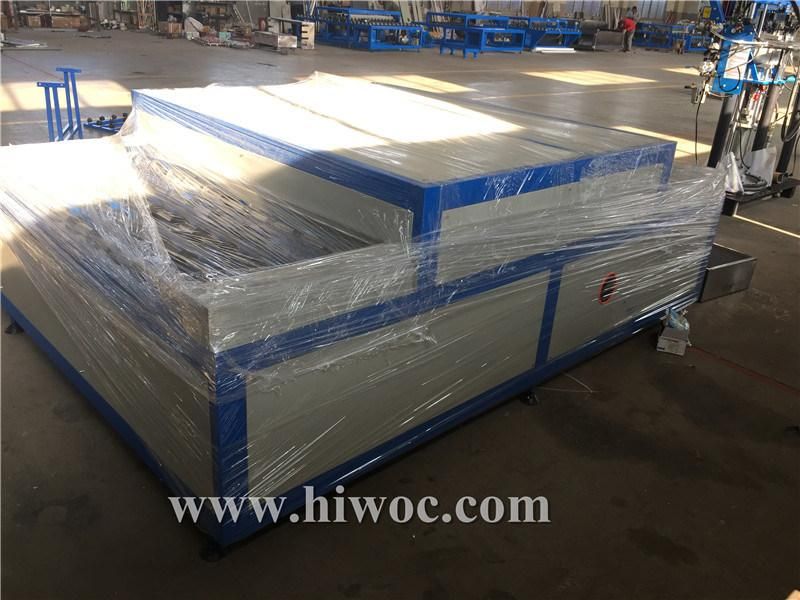

7. Packaging: Film packaging and fumigation-free wooden case(if delivery by full container load, then without wooden box, just use the tray)
8. After sales service:
1)24 hours service on Internet and Telephone, free instructions and problem solving
2) Free training to make sure a master of the operating of cnc router for the person who come to our factory
3)User-friendly English manual or operating video for machine using and maintaining
4) on-the-spot training, installation and repairing can be met if required.(If so, need the buyer afford the visa and air ticket and 100USD/DAY Salary)
