• Model NO.：LXF3A-CNC-2500

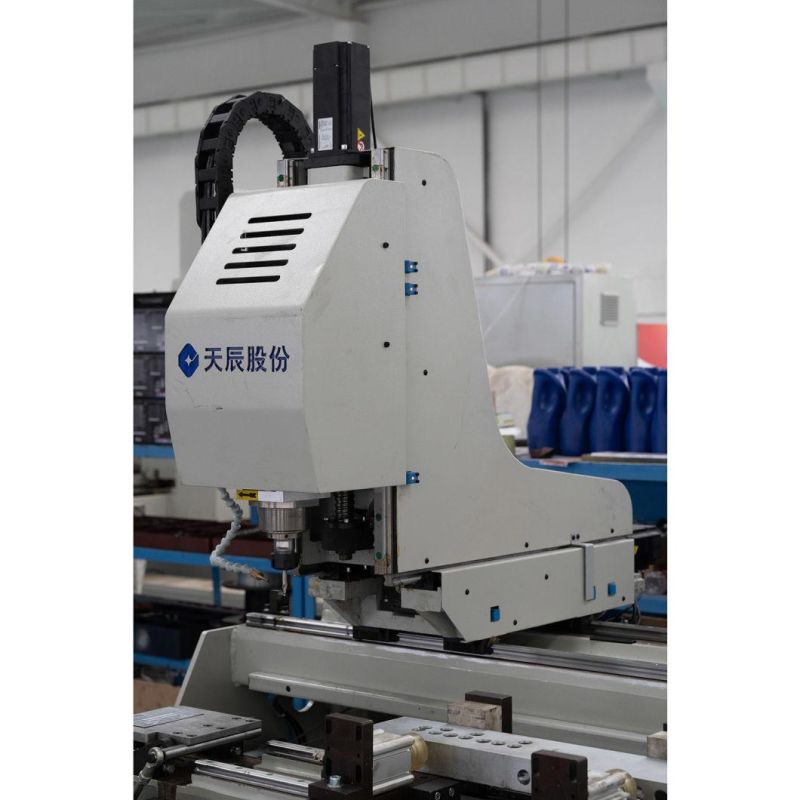

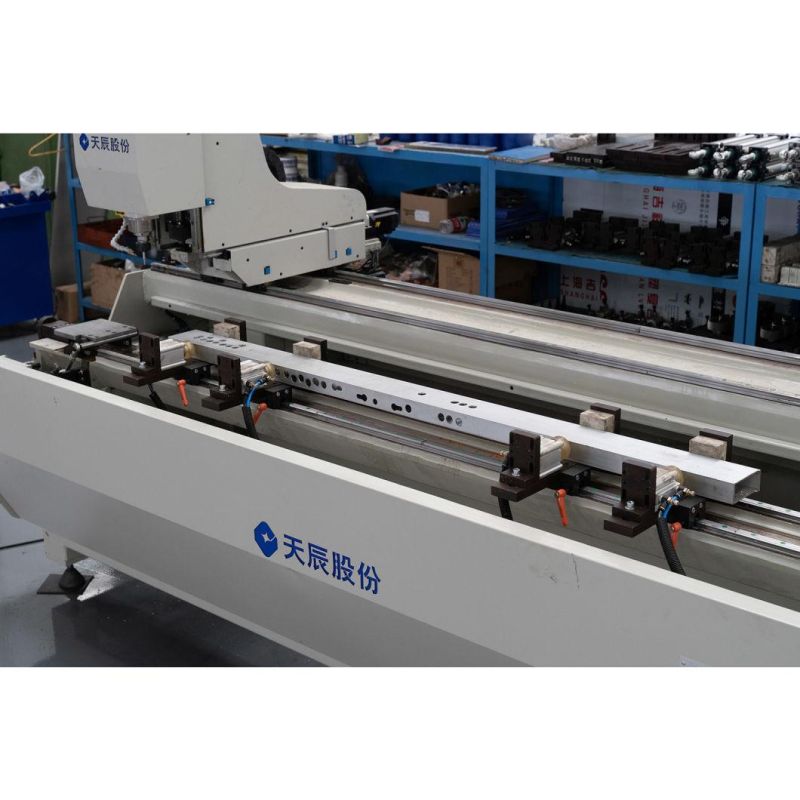

• Product Name：Aluminium CNC Copy Router Milling Machine
• Work Material Type：Aluminium Profile
• Material′s Workable Section Size：100X100mm (Widthx Height)
• Maximum Workable Length：2500mm
• CNC Axis Number：3
• Spindle Rpm：18000
• Spindle Power：4.5 Kw
• PLC：Schneider
• Transport Package：Iron Pallet, Container
• Specification：2800x1850x2050
• Trademark：Tianchen
• Origin：Jinan, Shandong, China
• HS Code：84614090
• Production Capacity：50 Sets Per Month

Power supply380V 50Hz or as per customized valueAir supply0.5~0.8MPaAir consumption40L/minMain spindle rotating speed18000rpmSpindle power4.5kWMachine total power11kWTool chuckER25-Ø8Processing size range(for 3 surfaces in one time's clamping)100x100x2500(mm)
Working position-90°,0°,90°X way travel2500mmY way travel330mmZ way travel300mmX axis movement speed0~60m/minY axis movement speed0~30m/minZ axis movement speed0~30m/minMachine overall dimension
(LxWxH)2800X1850X2050mmWeight about 1400 KG Machine Features
X axis is driven by rack and pinion, Y and Z axis is driven by guide rail and ball screw. All with very high precision, ensure accurate performance.

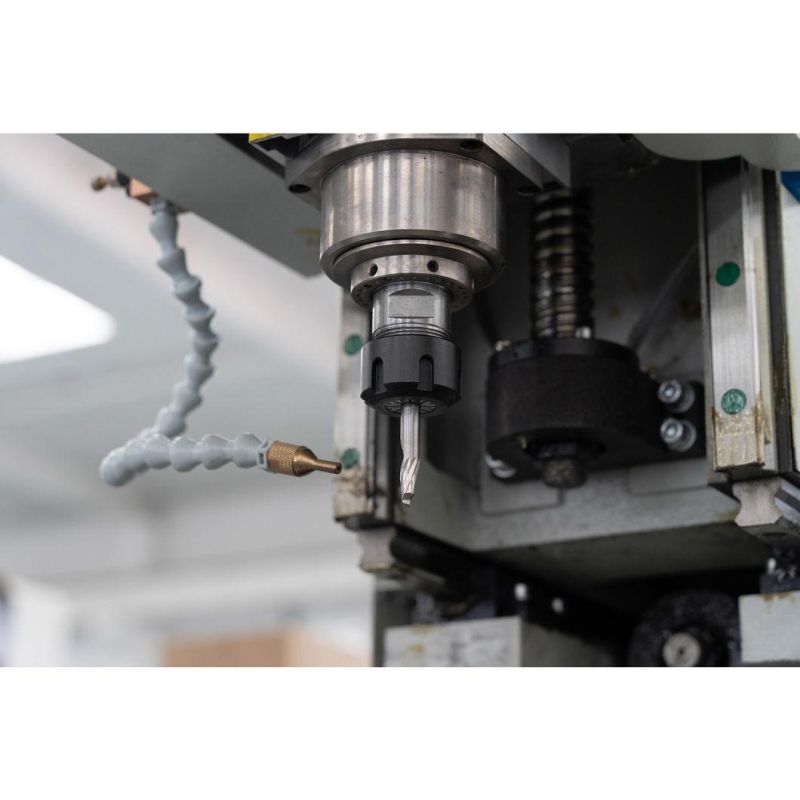

 High speed motorized spindle, stable rotating, low noise, and strong milling ability.
