Aluminium Double Mitre Saw Window Door Making Machine
Jinan Tianchen Smart Machine Co., Ltd.- Condition：New
- Certification：ISO, CE
- CNC or Not：CNC
- Voltage：380V
- Saw Head Motor Power：2X3kw
- Transport Package：Wooden Cases or Pallet
Base Info
- Model NO.：LJZ2XII-500x4200
- Trademark：TIANCHEN
- Origin：China
- HS Code：84614090
- Production Capacity：400 Sets,Year
Description
Basic Info.
Model NO. LJZ2XII-500x4200 Trademark TIANCHEN Origin China HS Code 84614090 Production Capacity 400 Sets/YearProduct Description

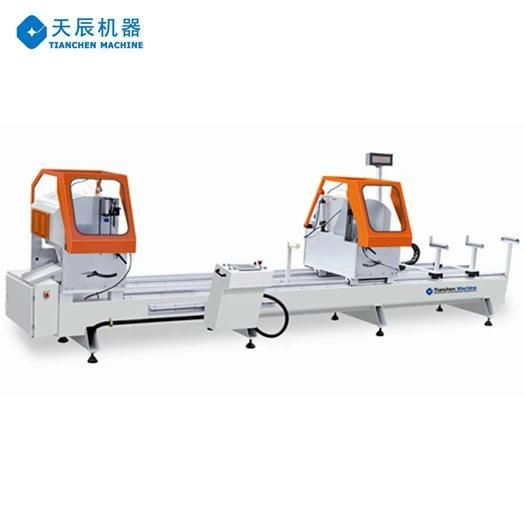

Digital Display Double-head Precision Cutting SawModel: LJZ2XII-500X4200
Product Description
Features & Advantages
- Applicable for cutting profile of aluminum windows and doors and curtain walls
- Imported cutting motor connects with saw blade; the saw blade feed adopts gas-liquid damping cylinder drive, with smooth cutting
- Easy to operate and maintain, with reliable performance and advanced technology
- Adopting SIEMENS control system, stable and reliable
- Using magnetic system for length scaling and digital display, with high precision
- Imported carbide saw blade gives accurate processing and high efficiency
- The follow-up supporter is space saving
Technical Parameters
| Saw Head Motor Power | 2X3.0KW |
| Cutting Length | Max 4200mm, min 400mm |
| Cutting Width | Max 150mm |
| Cutting Height | Max 210mm 45° max 150mm 90° |
| Cutting Angle | 90°, 45° |
| Cutting Speed: Stepless speed regulation | 0-3m/min |
| Blade Specification | φ500mm x 4.4mm xφ30mm z=120 |
| Repeat Locating length tolerance | ±0.2mm |
| Cutting Angle tolerance | ±5' |
| Contour dimension | 6500x1700x1900mm |
| Weight | 2100KG |
