• Function：Milling and Drilling Aluminium Profile
• Transport Package：with Steel Pallet by Container
• Specification：20GPx1
• Trademark：Tianchen CNC
• Origin：Jinan, Shandong, China
• HS Code：8461409000
• Production Capacity：50 Sets Per Month

Basic Info.

Function Milling and Drilling Aluminium Profile Transport Package with Steel Pallet by Container Specification 20GPx1 Trademark Tianchen CNC Origin Jinan, Shandong, China HS Code 8461409000 Production Capacity 50 Sets Per Month

Product Description

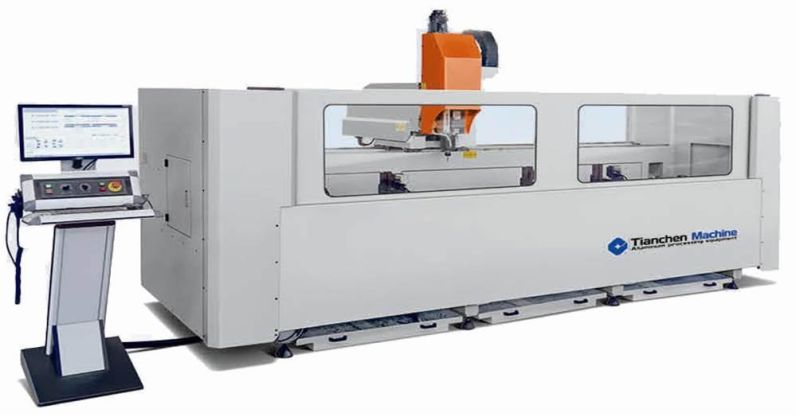

High-Speed CNC Drilling and Milling Center GSXZ3+1-CNC-3200

I. Main specification and technical parameter
X-axis range:3500mm
Y-axis range:450mm
Z-axis range:350mm
X-axis moving speed:0~60m/min
Y-axis moving speed:0~30m/min
Z-axis moving speed:0~30m/min
Spindle power:7.5kw/9kw
Spindle max rev:24000r/min
Spindle taper:ISO30
Tool type: Horizontal type

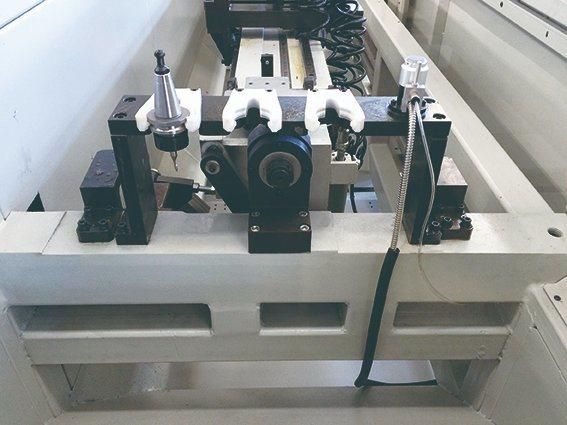

Tool magazine capacity:3pcs
Cooling type:atomization cooling(or water cooling)

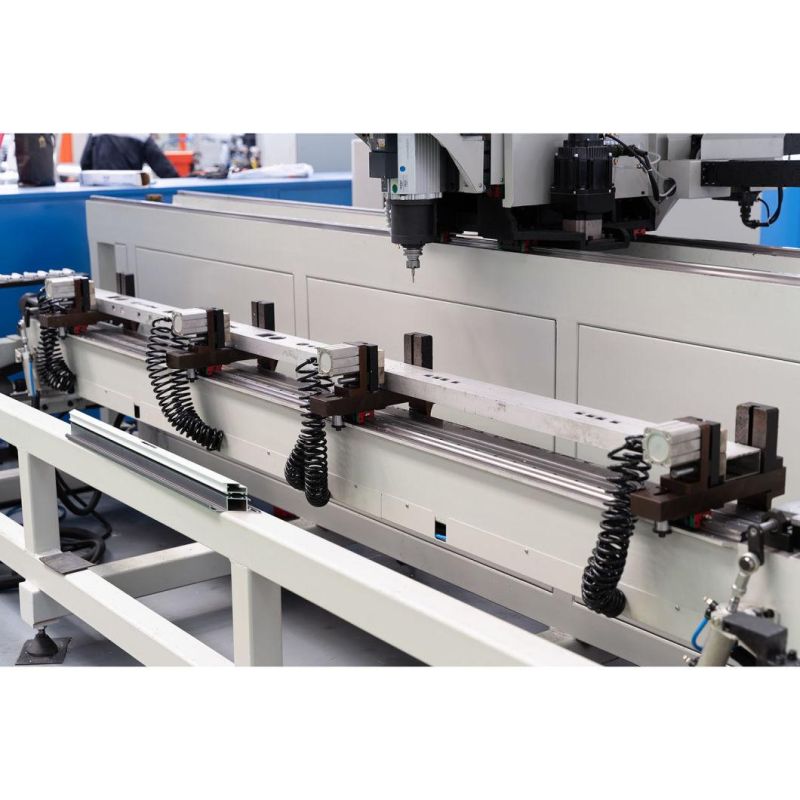

Quantity of clamp:4
Clamp moving type:manual
open mode of shield:pneumatic lifting
Power supply:380V 50Hz (or customized value)
Operation air pressure:0.5-0.8Mpa
Area:4500mm X 2300mm

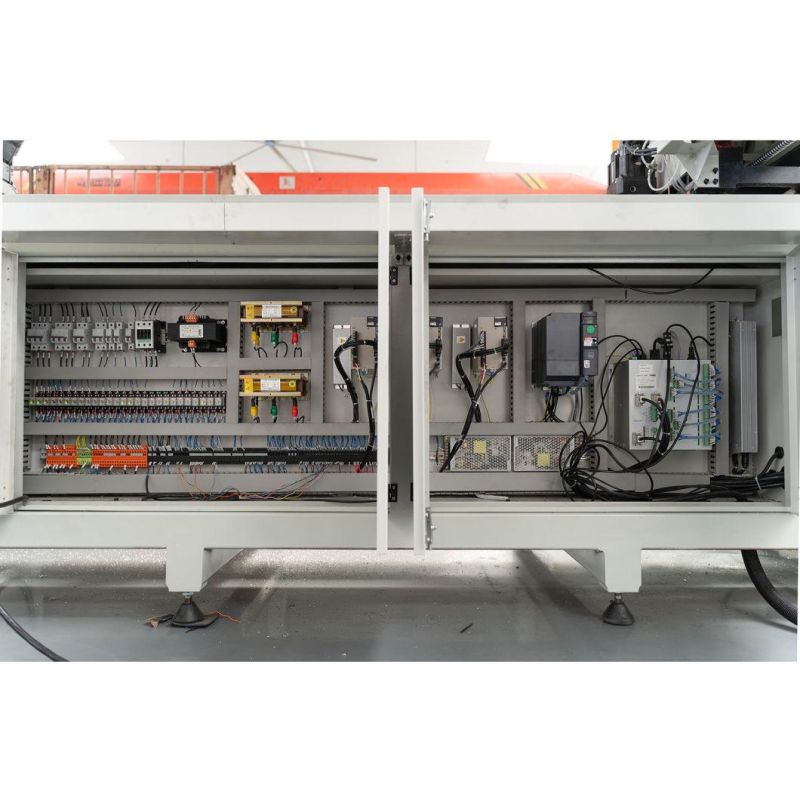

Weight:2500kgII. Main configurationsCNC system:PA, Germany
servo system:YASKAWA, Japan
Electric main spindle:HSD, Italy
Pneumatic component:SMC, Japan
Low voltage apparatus:Siemens, Germany
Linear guide:HIWIN, Taiwan
Rack:YYC
Decelerator:APEX
It is used for all kinds of CNC drilling and milling profiles and plates in aluminum, copper, PVC, and plates

1. With high precision linear guide, ball screw, gear, rack, and imported servo system, which ensure it runs smoothly, High accuracy for positioning and milling operation.

With high-speed and automatic tool-changing motorized spindle imported from Italy, it has stable and reliable performance

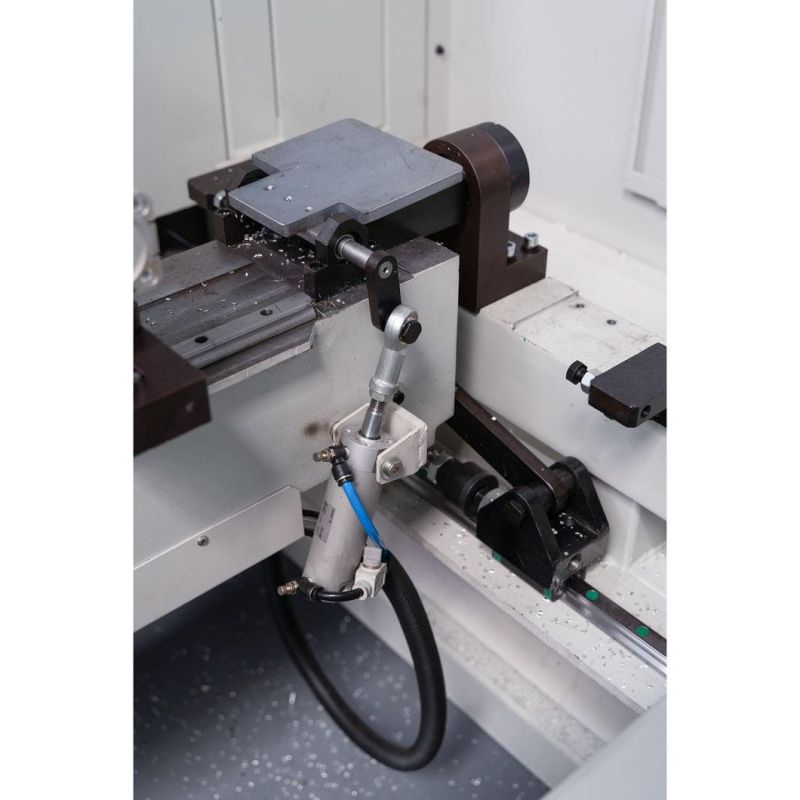

The rotary table can convert between the three positions in -90°, 0° and +90°, which realizes that three surfaces milling can finish within one time's clamping.

Both ends of worktable have separate positioning device, it can realize the dual processing of short profiles, which greatly improves the work efficiency.

The intelligent CNC system and the simple, intuitive interface make the operation more convenient
