Aluminium Window Making Machine 4 Head Corner Joint Production Line
Jinan Tianchen Smart Machine Co., Ltd.- Condition:New
- Certification:ISO, CE
- Automatic Grade:Automatic
- CNC or Not:CNC
- Voltage:380V
- Control System:Schneider
Base Info
- Model NO.:LM4XA-CNC-100x2200x3000
- Maximum Workable Frame Size:2200X3000mm
- Minimum Workable Frame Size:700X450mm
- Productivity:45 Seconds One Frame,Sash Can Be Done
- Crimping Tool Numbers:8
- Net Weight:About 5.5 Tons
- Application Field:Making Windows
- Crimping Accuracy:High
- Product Name:Window Making 4 Head Corner Crimping Machine
- Function:Crimping Corners to Make Window Frame or Sash
- Transport Package:by Container
- Specification:40FRx1
- Trademark:Tianchen
- Origin:Jinan, Shandong, China
- HS Code:8461409000
- Production Capacity:20 Sets Per Month
Description
Basic Info.
Model NO. LM4XA-CNC-100x2200x3000 Maximum Workable Frame Size 2200X3000mm Minimum Workable Frame Size 700X450mm Productivity 45 Seconds One Frame/Sash Can Be Done Crimping Tool Numbers 8 Net Weight About 5.5 Tons Application Field Making Windows Crimping Accuracy High Product Name Window Making 4 Head Corner Crimping Machine Function Crimping Corners to Make Window Frame or Sash Transport Package by Container Specification 40FRx1 Trademark Tianchen Origin Jinan, Shandong, China HS Code 8461409000 Production Capacity 20 Sets Per MonthProduct Description

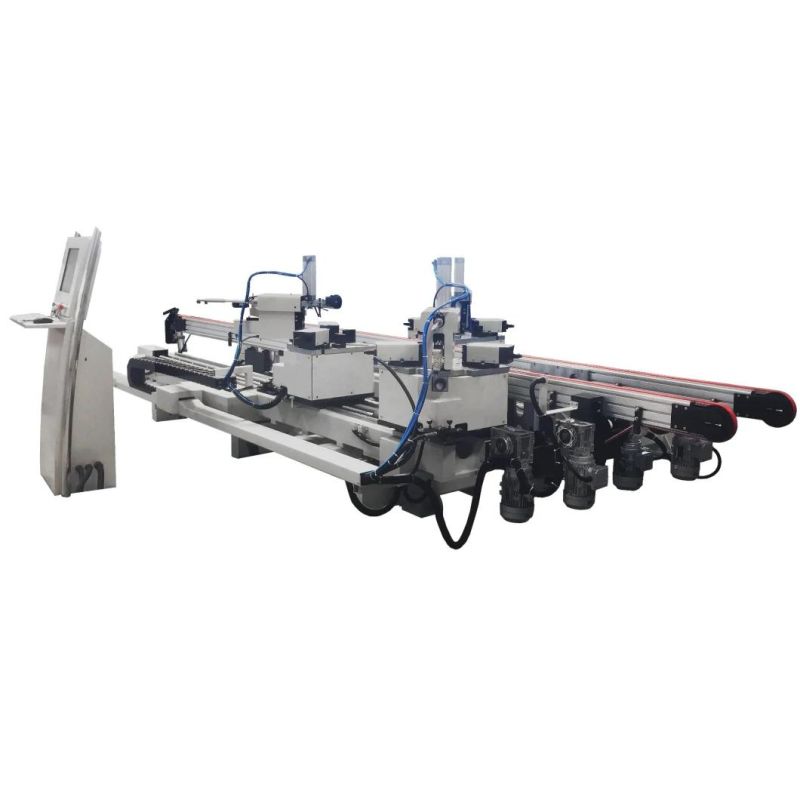

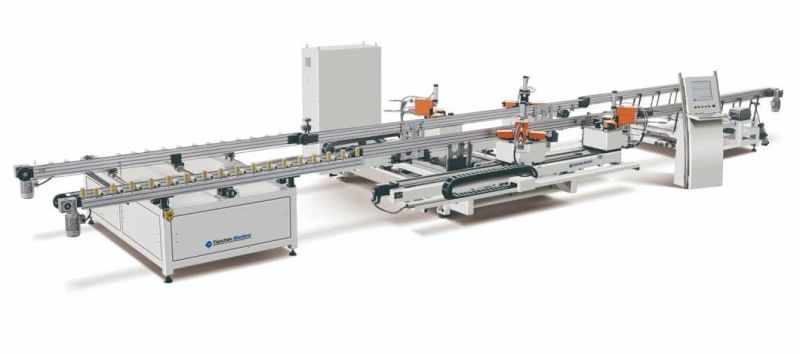

CNC Four Head Corner Crimping Production LineModel LM4XA-CNC-100*2200*3000
Main Technical Specifications:☆ Motor power of assembly station: 0.55kW
☆ Motor power of transmission station: 6×0.55kW
☆ Input voltage: 380V 50Hz
☆ Air pressure: 0.6-0.8MPa
☆ Max frame dimension: 2200×3000mm
☆ Min frame dimension: 700×450mm
☆ Rating oil pressure: 15MPa
☆ Capability of oil tank: 40L
☆ Diagonal line length error of finished product: ≤1mm
☆ Connection seam error: ≤0.15mm
☆ Contour dimension: About 16000×5000×1810mm
☆ Net Weight: About 3000kg
Main Outsourced Components List:
Item | Brand name |
Servo System | Schneider |
Air Pneumatic components | SMC and Airtac |
PLC | Schneider |
Low voltage electrical components | Siemens/Schneider |
Industrial Computer | HAIDE Combined computer |
Rack | YYC |
Guide Rail | Hiwin |
Ball Screw | PMI |

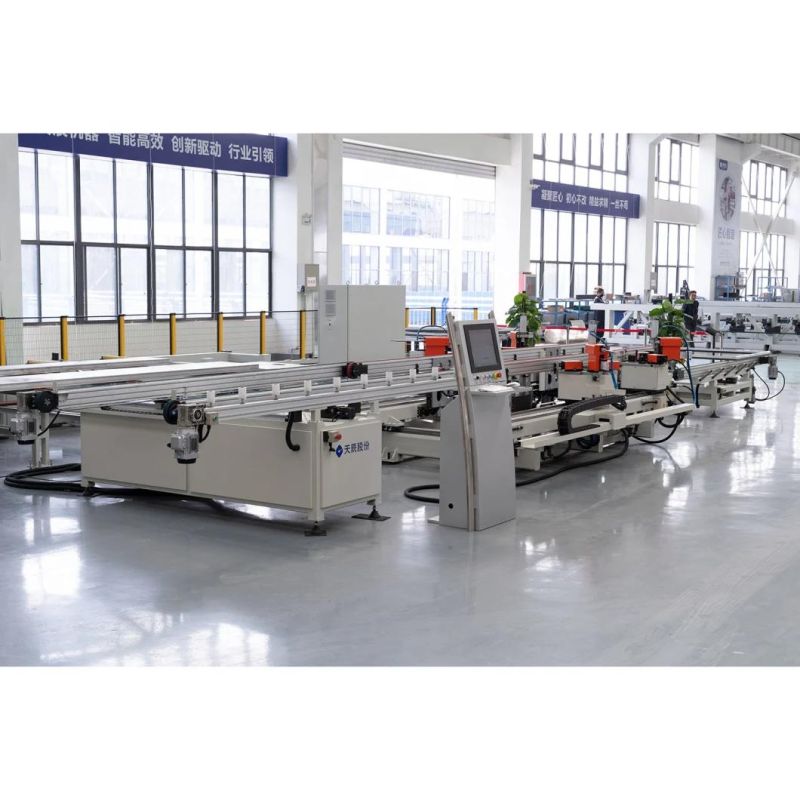

Machine FeaturesThe work efficiency is very high, in average it takes just about 45 seconds to finish the 4 corner crimping for one window. Namely, one window's 4 corner crimping can be done in 45 seconds only. Approximately in one shift (8 hours) 550 window frames/ sashes can be done.
This machine can greatly save your man power cost, the production capacity of one set of this machine equals to that of 6 sets of single-corner crimping machine.

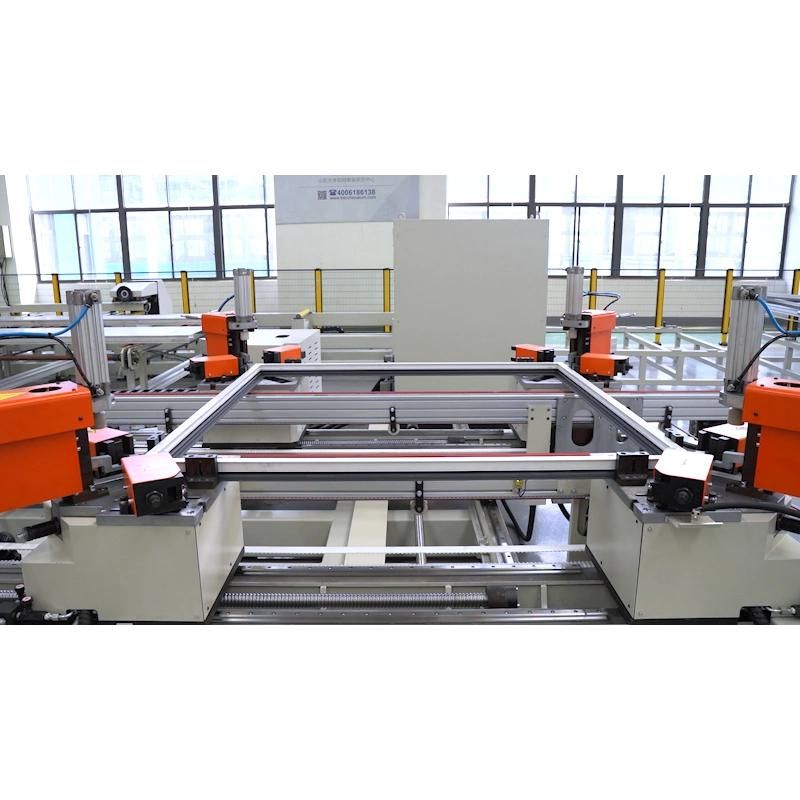

The 4 corners' crimping all are done at same height level, which can well assure very good flatness of the window. Compared the vertical corner crimping machine's structure, obviously this machine can get much better window flatness.

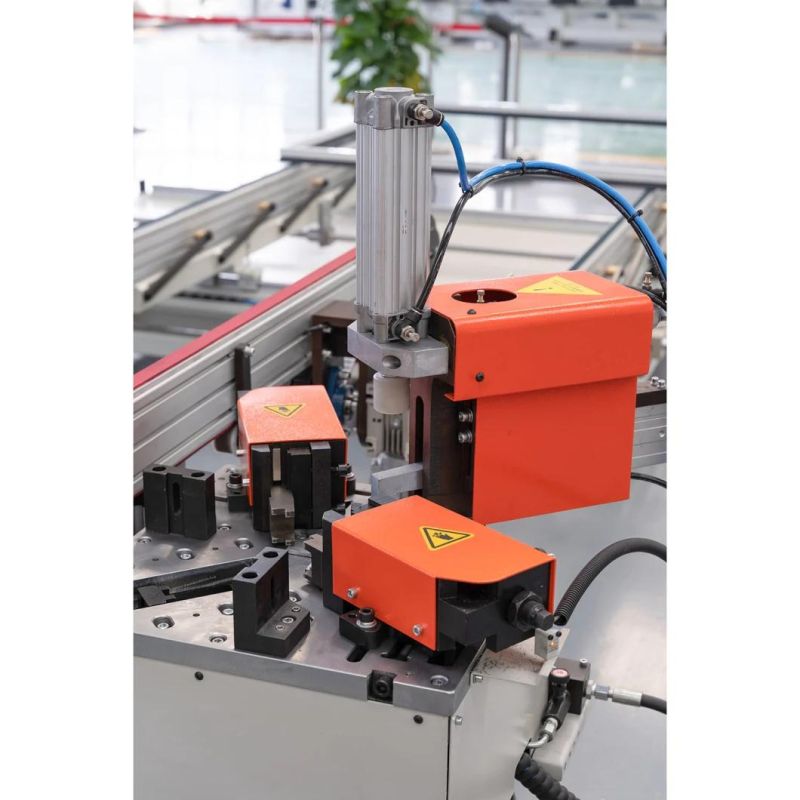

The crimping tool is especially customized made as per client's aluminium profile section structure, very easy to position and assemble, which can greatly save the time for adjusting the crimping tools.
