• Model NO.：LJZ2SA-500x5000
• Minimum Finished Length：450mm
• Control PLC：Schneider
• Type：CNC Automatic
• Cutting Angle：45 Degree and 90 Degree
• Repeat Locating Length Tolerance：+-0.2mm
• Cutting Angle Tolerance：+-5′
• Product Name：Aluminium Automatic Double Head Cutting Saw
• CNC Axis Numbers：1
• Advantage：High Efficiency and High Accuracy
• Production Efficiency：20 Seconds Per One Piece of Finished Profile
• Transport Package：Container
• Specification：40GPx1
• Trademark：TIANCHEN
• Origin：China
• HS Code：8461409000
• Production Capacity：2000sets,Year

Basic Info.

Model NO. LJZ2SA-500x5000 Minimum Finished Length 450mm Control PLC Schneider Type CNC Automatic Cutting Angle 45 Degree and 90 Degree Repeat Locating Length Tolerance +-0.2mm Cutting Angle Tolerance +-5′ Product Name Aluminium Automatic Double Head Cutting Saw CNC Axis Numbers 1 Advantage High Efficiency and High Accuracy Production Efficiency 20 Seconds Per One Piece of Finished Profile Transport Package Container Specification 40GPx1 Trademark TIANCHEN Origin China HS Code 8461409000 Production Capacity 2000sets/Year

Product Description

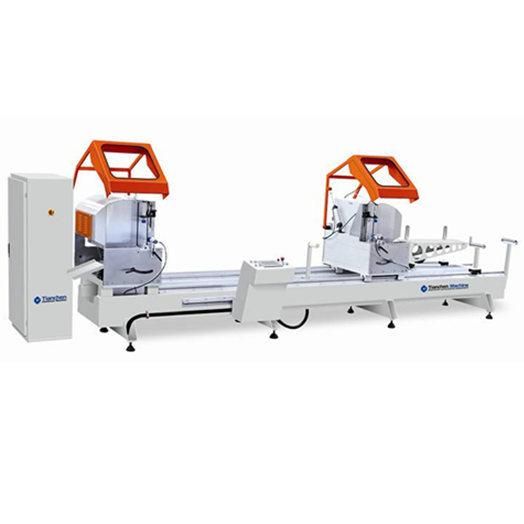

Double head precision cutting sawModel: LJZ2SA-500X5000



Features & Advantages

• Applicable for cutting profile of aluminum windows and doors and curtain walls
• Imported cutting motor connects with saw blade; the saw blade feed adopts gas-liquid damping cylinder drive, with smooth cutting
• Equipped with cooling devices, high precision cutting saw rotates stably and cutting surface smooth.
• The movable cutting head is driven by imported servo driver, adopts gear rack transmission, full close loop control, with high precision positioning.
• The movable cutting head adopts high precision linear guide rail pair, operating stable and reliable.
•  The follow-up supporter is space saving

Technical Parameters

Cutting Motor Power	2X3.0KW  rotary speed:2800r/min
Cutting Length	450-5000mm
Cutting angle	45°, 90°
Cutting Range(W*H)	90°:150x210mm
	45°: 150x150mm
Cutting Speed: Stepless speed regulation	0-3m/min
Blade Specification	φ500xφ30x4.4x3.8
Repeat Locating length tolerance	±0.2mm
Cutting Angle tolerance	±5'
Contour dimension	7700x1700x1900mm
Weight	about 2500KG

Machine Description

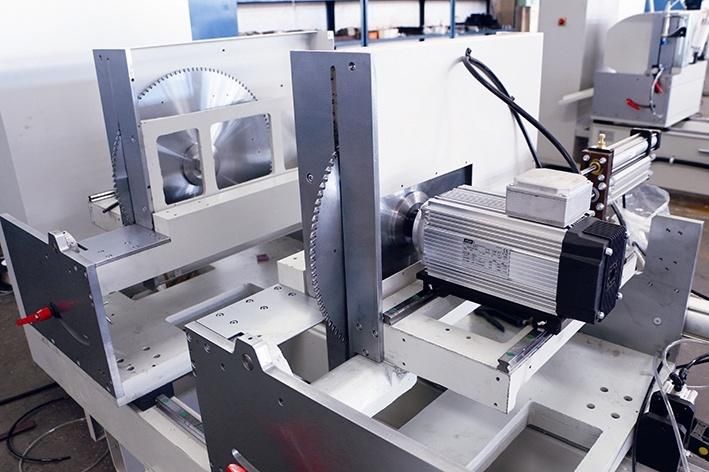

Imported cutting motor directly connects with the sawing blade

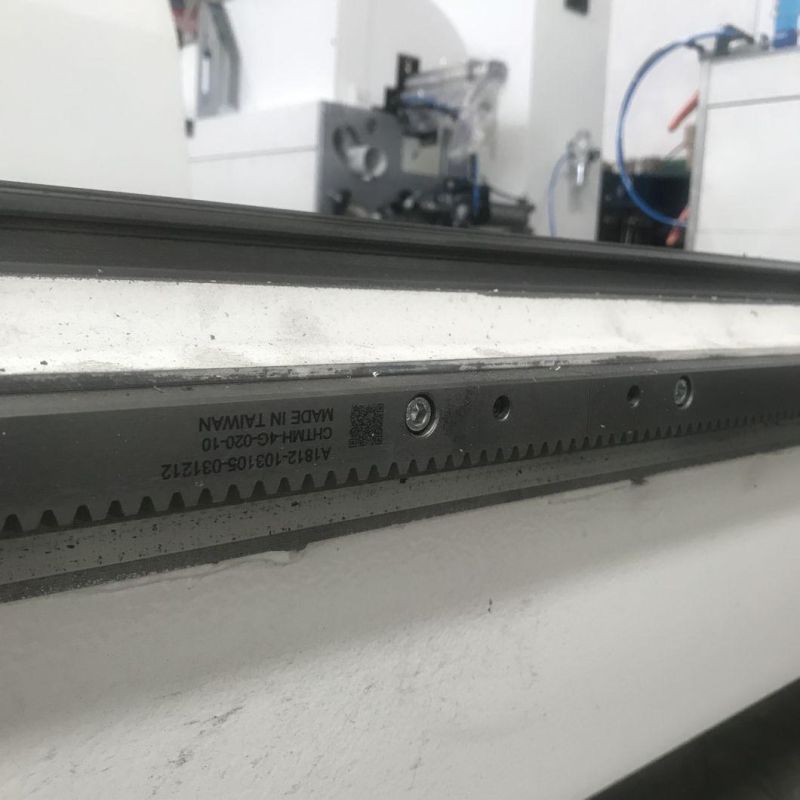

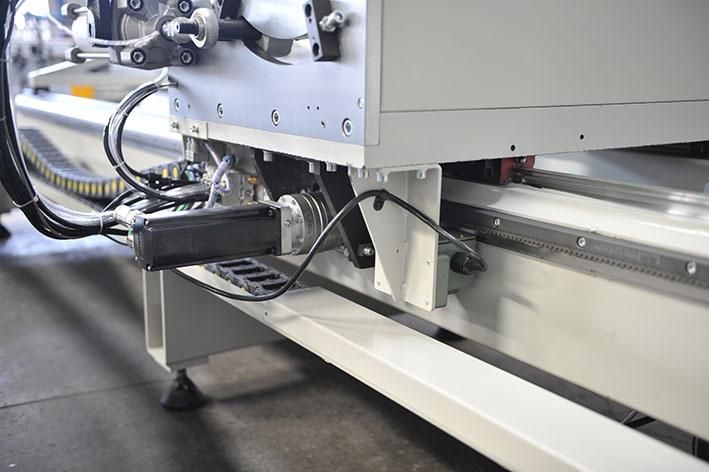

Right head feeding driven by imported servo device, gear and rack transmission, full close-loop control, with high accuracy


Imported linear guiding pair ensures steady processing accuracy

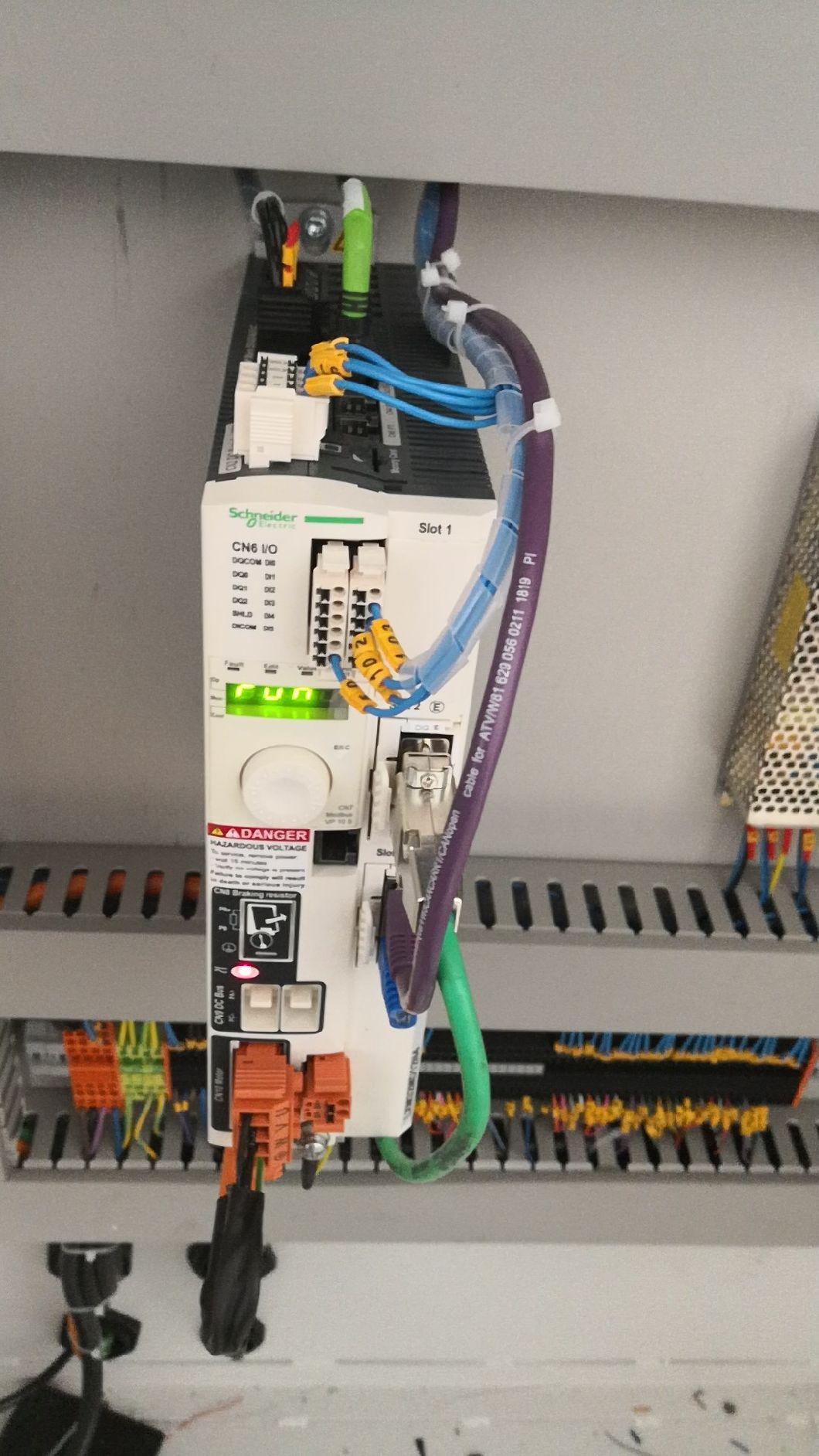

Adopts CNC control, imported PLC Schneider from France, can achieve various profiles auto cutting off
