• Model NO.：JYW-2500
• Color：Red , Customers′ Request
• Work Pressure：0.5-0.8MPa
• Min.Glass Size：280*450mm
• Max.Glass Size：2500*3000mm
• Working Direction：Right-Left , Left-Right
• Transfer Speed：8-45m,Min
• Usage：Making Insulating Glass
• Application：Building Glass
• Transport Package：Carton Packing,Wooden Packing and Simple Packing O
• Specification：21500*2000*3700mm
• Trademark：Truepro
• Origin：Jinan, Shandong
• Production Capacity：10 Set,Sets Per Month Double Glazed Line

Basic Info.

Model NO. JYW-2500 Color Red / Customers′ Request Work Pressure 0.5-0.8MPa Min.Glass Size 280*450mm Max.Glass Size 2500*3000mm Working Direction Right-Left / Left-Right Transfer Speed 8-45m/Min Usage Making Insulating Glass Application Building Glass Transport Package Carton Packing,Wooden Packing and Simple Packing O Specification 21500*2000*3700mm Trademark Truepro Origin Jinan, Shandong Production Capacity 10 Set/Sets Per Month Double Glazed Line

Product Description

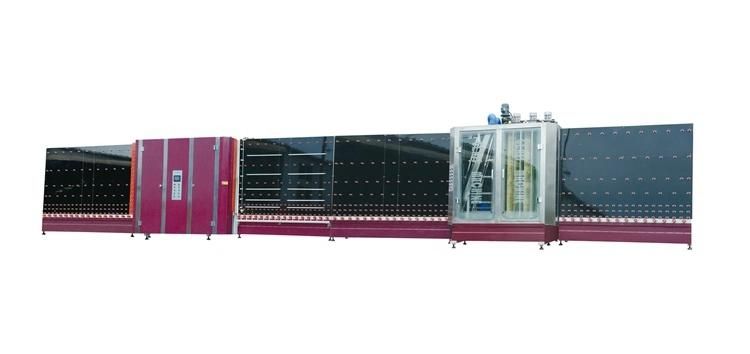

Factory Direct Sales Insulating Glass Production Line Machine

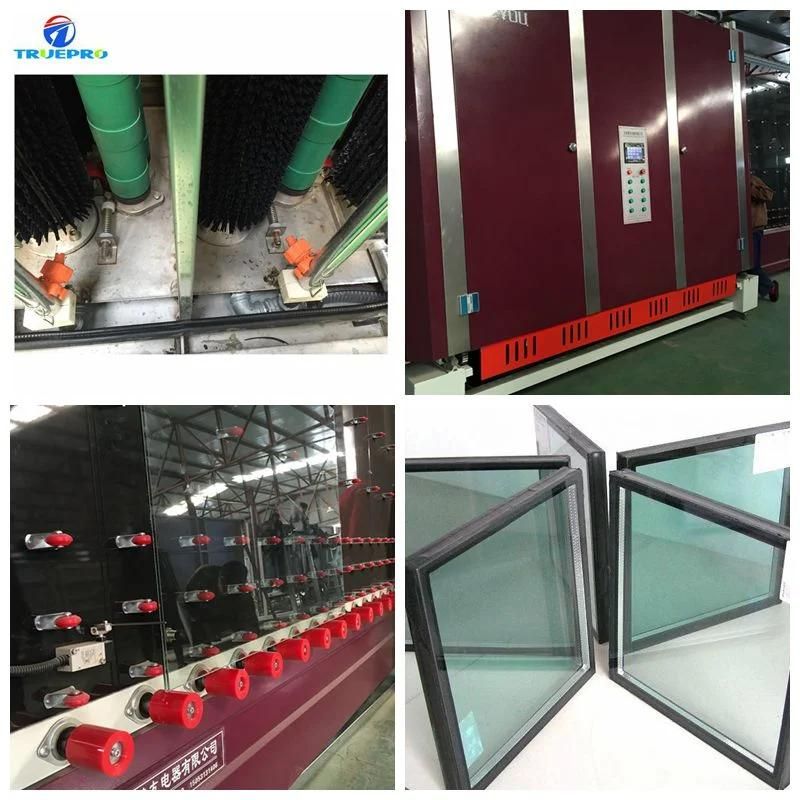

Equipment Features:

1.Automatic numerical control insulating glass production line,

   automatic LOW-E,coating glass identify,inginsulating glass used machine.

2.PLC control,touch sensitive screen man machine interface.

3.Adopt imported vacuum generator and sucker resulted in perfect suction

  effect to the glass.

4.Produce the Step IG Unit and three Piece IG production according to the
  customers' different  request.

5.Full distance automatic changeable frequency speed adjustment,

  which can save work waiting time and improve production efficiency.


Main Pharameter

Model	JYW-2500
Power Supply	380V 50Hz
Input Power	28.0Kw
Working Speed	8-45m/min
Max glass Size	3000*2500mm
Min Glass Size	280*450mm
Glass Thickness	3-18mm
Outside Dimension	21800*2400*3400mm
Weight(about)	7000kgs

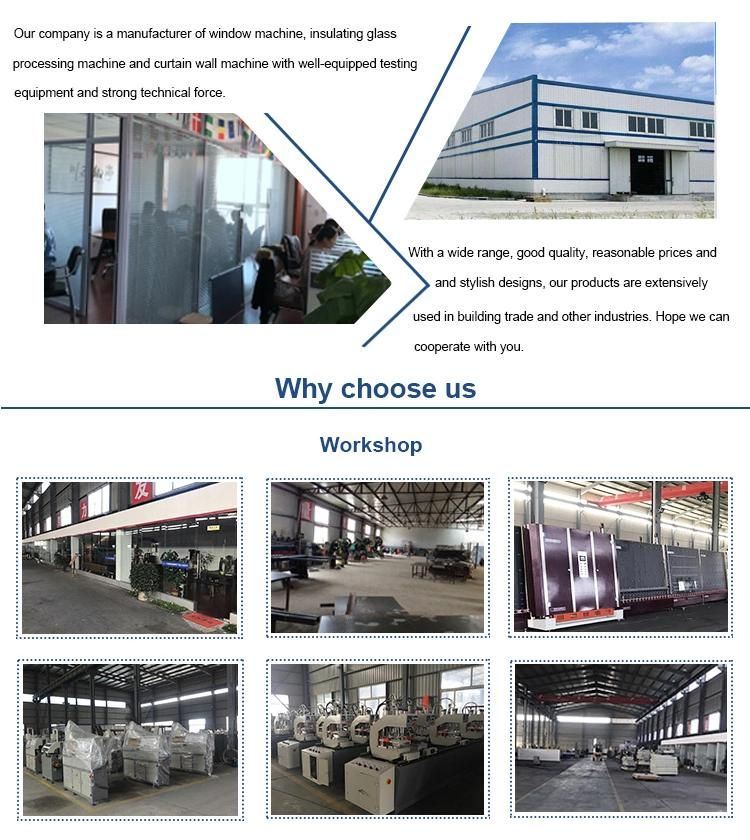

Company Information

FAQ

1. When can we arrange shippment?

We usually arrange shippment  within 15 days after getting deopsit,

but customized machines should be more than 25 days.

2.What you can do if my machines have problems??

1) We can send you free components to you if your machines are in guarantee time.

2) We can send our engineers to repair your machines

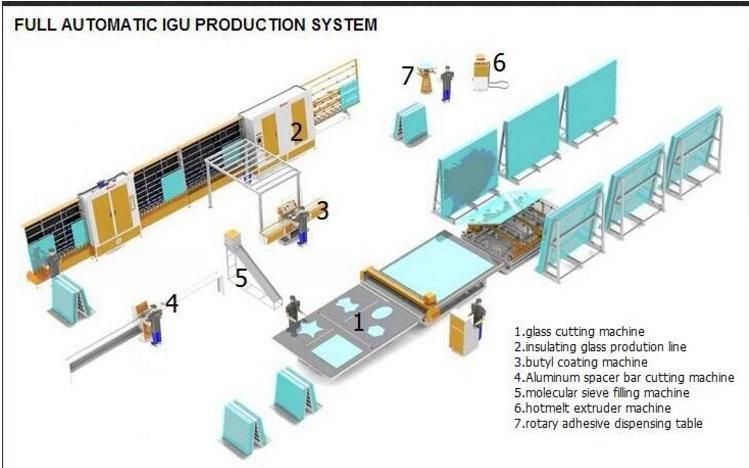

3.If i want to established a new Insualting glass workshop ,what other machine we need
