• Model NO.：DX1000
• Certification：CE, CCC, ISO9001
• Condition：New
• Customized：Customized
• Usage：Roof
• Transmission Method：Machinery
• Type：Rolling Machine
• Power Source：Hydraulic Pressure
• Feature：Automation
• Advantage：Work Flexible
• Forging Forming Method：Mold Forging
• Name：Aluminium Coated Step Tile Roofing Sheet Making Ma
• Material Thickness：0.3-0.8mm
• Rolling Speed：8-10m,Min
• Roller Station：15stations
• Transport Package：Water-Proof Packaging, Covered with Plastic Film
• Specification：CE ISO
• Trademark：DIXIN
• Origin：Botou Hebei China
• HS Code：845522
• Production Capacity：20 Set Per Year

Basic Info.

Model NO. DX1000 Certification CE, CCC, ISO9001 Condition New Customized Customized Usage Roof Transmission Method Machinery Type Rolling Machine Power Source Hydraulic Pressure Feature Automation Advantage Work Flexible Forging Forming Method Mold Forging Name Aluminium Coated Step Tile Roofing Sheet Making Ma Material Thickness 0.3-0.8mm Rolling Speed 8-10m/Min Roller Station 15stations Transport Package Water-Proof Packaging, Covered with Plastic Film Specification CE ISO Trademark DIXIN Origin Botou Hebei China HS Code 845522 Production Capacity 20 Set Per Year

Product Description

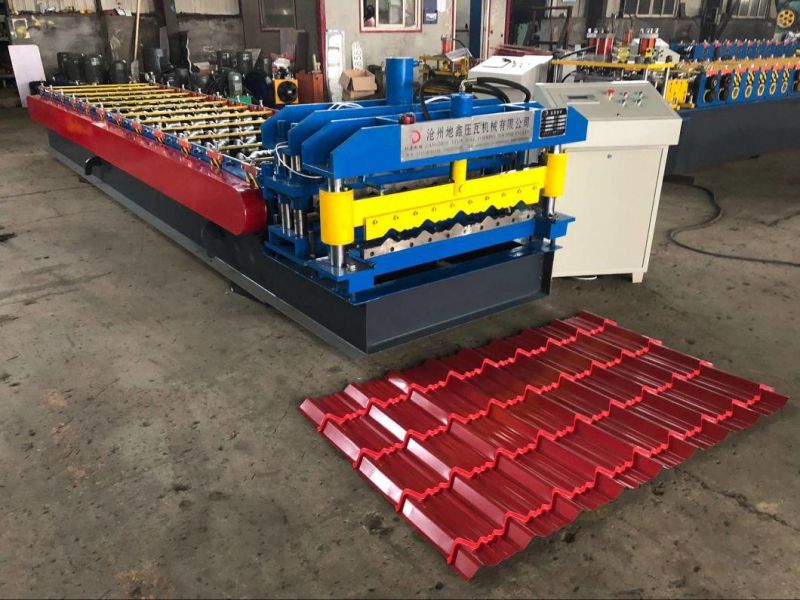

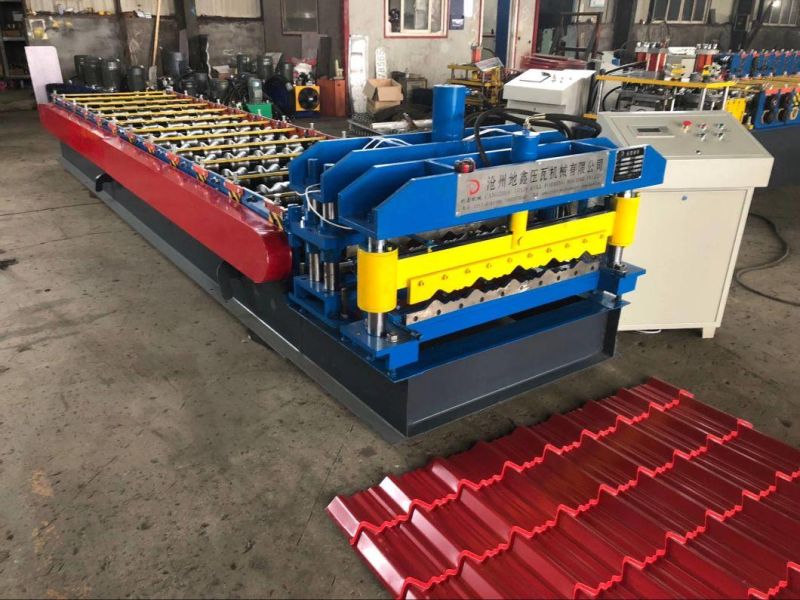

Glazed Roof Tile Roll Forming Machine for Africa market
1)Color steel glazed tile is made by pressing horizontal color steel plate through color steel forming equipment.

2)Colored steel glazed tiles are generally used as roof plates and laid on the roof built of steel structure, which not only ensures the beauty of the building, but also prolongs the service life of the building.
Specifications

1	Material Thickness	0.3-0.8mm
2	Rolling Speed	8~10m/min
3	Roller Station	13Stations
5	Control system	PLC Panasonic
6	Roller material	#45 steel with hard chrome
7	Roller shaft material	#45 hard steel
8	Main motor power	4KW
9	Electric Source	380V, 50HZ, 3Phase, Neutral
10	Hydraulic station power	4KW
11	Material of cutter	Cr12, Quench HRC58-62
12	Cutting	Post-Hydraulic cutting
13	Driving	Chain driving

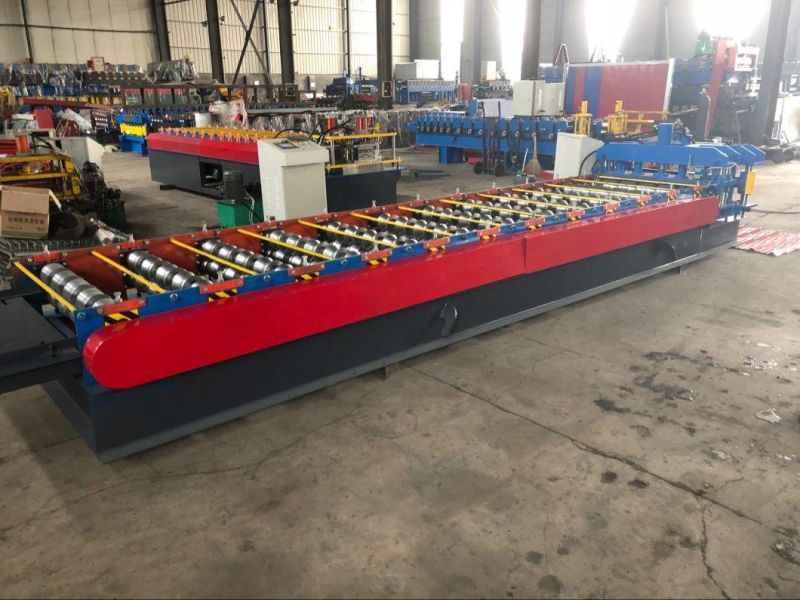

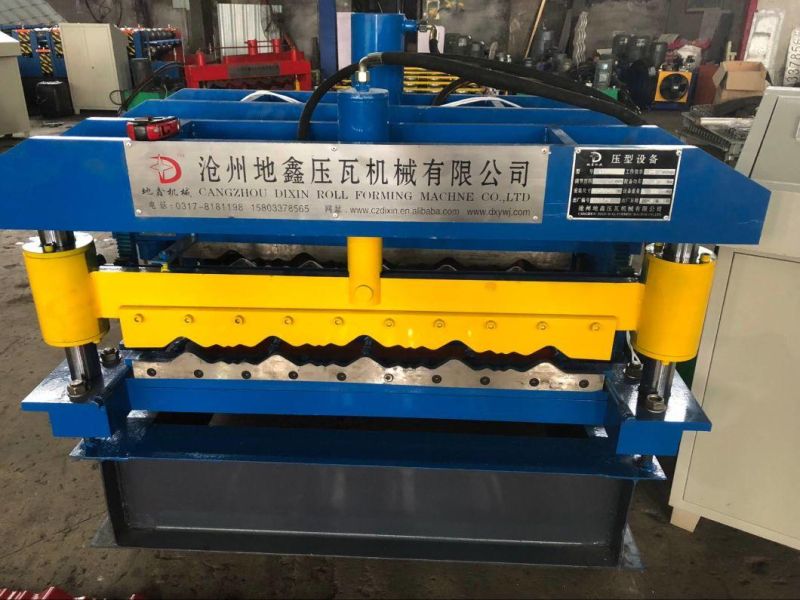

Some machine details photos

Main Parameters:
1.  Customized design according to specific profile
2.  Working speed: 12m -15m/min (not including cutting time)
3.  Forming step: 13 -25 steps
4.  Material of roller: GCr15, quench processed HRC58-62, hard chromium plated
5.  Material of main shaft: fine quality 45# steel finishing machining and then slack quench processed,
6.  Main power:  4 -7.5KW
7.  Hydraulic station power:  3 -5Kw
8.  Hydraulic station pressure:  12 Mpa
9.  Electrical control system: using industry computer PLC frequency conversion control; transducer used Japan Panasonic brand, encoder used Omron brand.
10.  Machine dimension: about 6500×800×1100 mm
11.  Material of cutter: Cr12Mov
12.  Material thickness: 0.25mm-1.2mm
13.  Length tolerance: + 1 -1.5 mm
14.  Driving mode:  chain driving

2,Technological Process:Uncoiling---Feeding---Leveling---Punching---Roll Forming---Cutting---Stacking

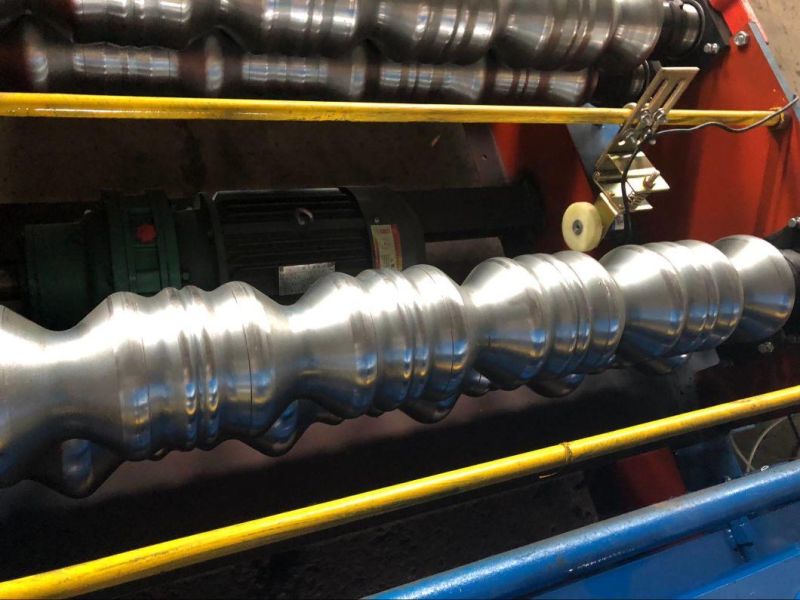

Roll Forming System:
Roll forming system consist of machine frame, transmission system, electrical motor and roll forming system.
A. Machine frame adopts welding structure with shot blasting and painting treatment
B. All rollers material adopt high quality No. 45 steel, with hard chrome coated on surface, all treatment by full CNC machines, to make sure the rollers with good rigidity and precision, and form perfect roofing sheet as per design.
C. All rolling shafts are made by high quality No. 45 steel with quench and temper treatment, so the shafts with good rigidity which could use for long tern without deformation.
D. Rolling shafting supporting structure type is steel wall and welded with the basement together to have rigidity.
E. Cycloidal pin gear speed reducer motor driven, the back/forward roller driven by chain, part of upper/lower rollers driven by gear
F. Adjust the screw bar manually to adjust the distance between upper/lower rollers for difference thickness of sheet.
Roll Forming System:
Roll forming system consist of machine frame, transmission system, electrical motor and roll forming system.
A. Machine frame adopts welding structure with shot blasting and painting treatment
B. All rollers material adopt high quality No. 45 steel, with hard chrome coated on surface, all treatment by full CNC machines, to make sure the rollers with good rigidity and precision, and form perfect roofing sheet as per design.
C. All rolling shafts are made by high quality No. 45 steel with quench and temper treatment, so the shafts with good rigidity which could use for long tern without deformation.
D. Rolling shafting supporting structure type is steel wall and welded with the basement together to have rigidity.
E. Cycloidal pin gear speed reducer motor driven, the back/forward roller driven by chain, part of upper/lower rollers driven by gear
F. Adjust the screw bar manually to adjust the distance between upper/lower rollers for difference thickness of sheet.
Manual decoiler
It is passive type could load coil by expend the blots fix at coil inner diameter. It's easy to operate and economical solution.
