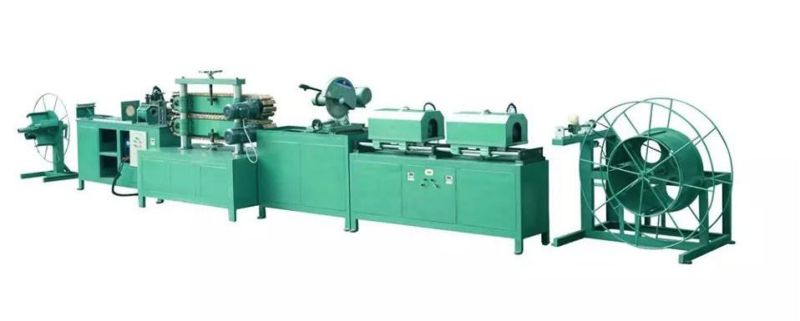

Flexible Metal Hose Mechanical Forming Machine
Comflex Industrial Co., Ltd.- Condition:New
- Customized:Customized
- Theory:Mechanical
- Application:Natural Gas and Water Hose
- Type:Flexible Hose Forming Line
- Product Name:Hose Forming Machine
Base Info
- Model NO.:HLT
- Diameter:Dn8-32mm
- Material:SUS304, 321, 316L
- Type of The Hose:Annular or Helical
- Control:PLC Control
- Length:25meters,Roll
- Forming Type:Mechanical
- Forming Speed:2.5-3.5m,Min
- Wall Thickness:0.18-0.3mm
- Strip Thickness:0.18-0.3mm
- Transport Package:Standard Sea Package for Flexible Metallic Hose Ma
- Specification:SGS, ISO
- Trademark:HLT
- Origin:Jiangsu, Wuxi
- HS Code:844790900
- Production Capacity:15 Sets Per Year
Description
Basic Info.
Model NO. HLT Diameter Dn8-32mm Material SUS304, 321, 316L Type of The Hose Annular or Helical Control PLC Control Length 25meters/Roll Forming Type Mechanical Forming Speed 2.5-3.5m/Min Wall Thickness 0.18-0.3mm Strip Thickness 0.18-0.3mm Transport Package Standard Sea Package for Flexible Metallic Hose Ma Specification SGS, ISO Trademark HLT Origin Jiangsu, Wuxi HS Code 844790900 Production Capacity 15 Sets Per YearProduct Description
Hose forming machine1. Product description of mechanical hose forming machine*Diameter: DN8-32mm
*Type of the hose: annular hoses
*Applications: natural gas/ water hose
*Wall thickness: 0.18-0.3mm
*Strip thickness: 0.18-0.3mm
*Forming speed: 2.5-3.5m/min
*Material: SUS304, 321 and 316L
2. Machine details

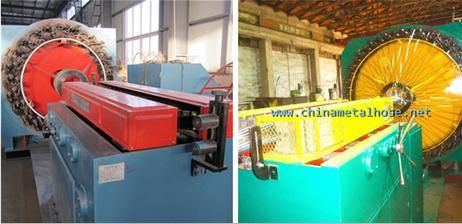

Decoiler Tube welder

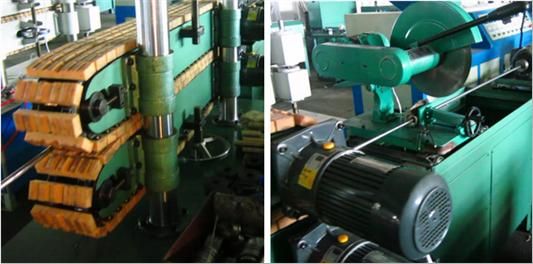

Caterpillar Flying cutter

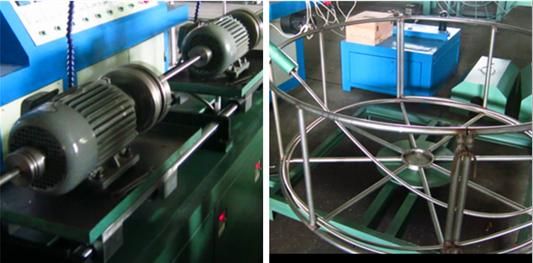

Forming head Take up

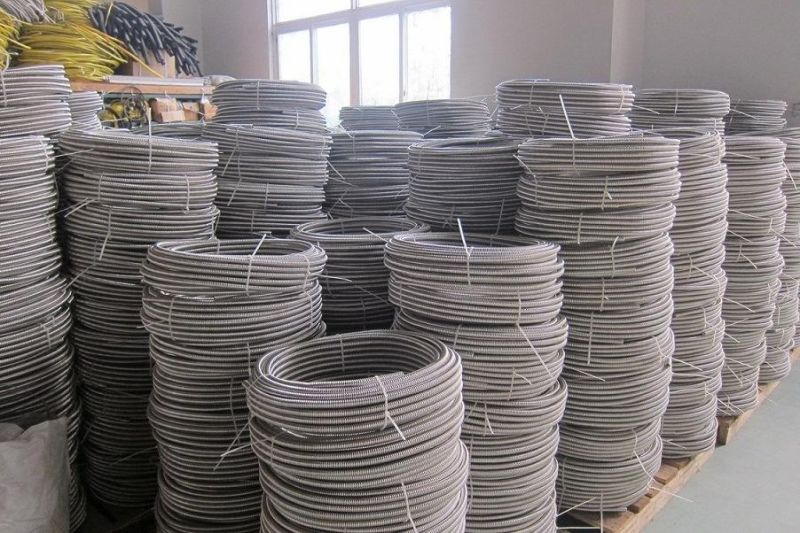

4. Related productsFlexible metal hose
No. | Size | Tube OD (mm) | Wall thickness (mm) | Hose ID (mm) | Hose OD (mm) | Pitch distance (mm) | Width of the strip (mm) |
1 | DN 8 | 10.3 | 0.18 | 8 | 11.3 | 2.7 | 31.8 |
2 | DN10 | 12.3 | 0.18 | 10 | 13.5 | 2.9 | 38.1 |
2 | DN 12 | 15 | 0.18 | 12.3 | 16.3 | 3.2 | 46.6 |
3 | DN 16 | 20 | 0.2 | 16.2 | 21.3 | 4.5 | 62.2 |
4 | DN 20 | 23.5 | 0.25 | 20 | 25 | 4.5 | 73.0 |
5 | DN 25 | 30 | 0.3 | 25 | 31.5 | 4.5 | 93.3 |
6 | DN 32 | 39.5 | 0.3 | 33 | 41 | 4.5 | 123.2 |
7 | DN50 | 55.7 | 0.35 | 50 | 56.7 | 6 | 173.2 |
Q: Why choose us for metal hose forming machine?
A: We are most professional manufacturer of hose making machine with more than 25 years of experience
Q: What size can you make?
A: All the sizes from DN8 up to DN400 can be made on different machines
Q: How many different types of machine can you make?
A: Hydraulic metal hose forming machine
a:DN16-65mm b:DN25-DN100mm c:DN32-150mm d:DN50-300mm e:DN80-400mm
B: Mechanical hose making machine
DN8-50mm
C:PU/ Elastomer Metal Hose Making Machine
a:DN12-100 b: DN50-150 c:DN12-65
Q:Can the hose forming machine be used for bellow making?
Yes, all above hose forming machine can be used for bellow making as well
We need to know following information to quote you correct machineries:
1.Size range you want to make
2.The application of the hose you need, for instance, natural gas hose, water hose, air conditional hose, etc..
3.Wall thickness
