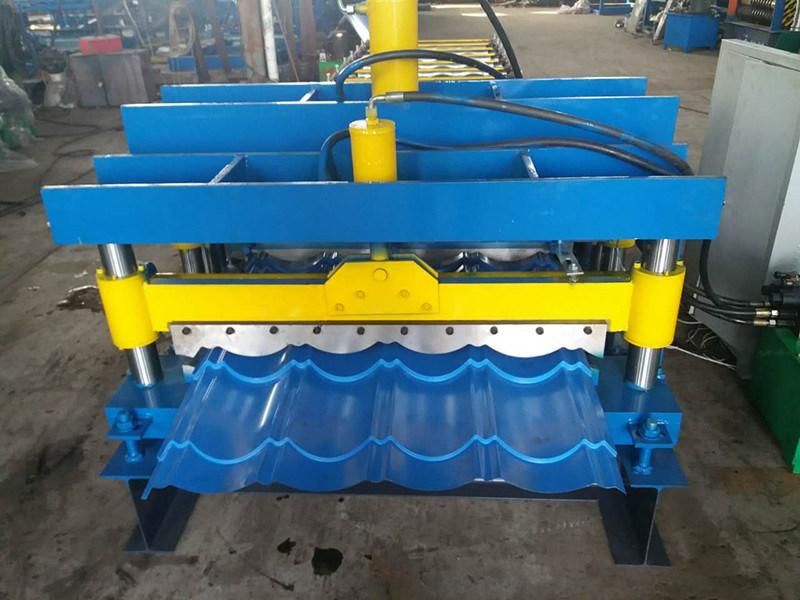

Dx 828 Glazed Steel Tile Forming Machine
Cangzhou Dixin Roll Forming Machine Co., Ltd.- Warranty:2 Years
- Tile Type:Glazed Steel
- Certification:CE, ISO, ISO9001: 2000, CE, SGS
- Condition:New
- Customized:Customized
- Usage:Roof, Wall, Floor
Base Info
- Model NO.:828
- Transmission Method:Electric
- Payment:Tt
- Type:Concrete Iron Strengthen Machinery
- Method:Roll Forming Machine
- Processing:Brick Production Line
- Product:Tile
- Brick Raw Material:Steel
- Automation:Automatic
- Tolerance:1.0mm
- Effective:Easy Operation
- Transport Package:No
- Specification:CE
- Trademark:DIXIN
- Origin:Cangzhou City, Hebei Province, China
- HS Code:84552210
- Production Capacity:15sets,Per Month
Description
Basic Info.
Model NO. 828 Transmission Method Electric Payment Tt Type Concrete Iron Strengthen Machinery Method Roll Forming Machine Processing Brick Production Line Product Tile Brick Raw Material Steel Automation Automatic Tolerance 1.0mm Effective Easy Operation Transport Package No Specification CE Trademark DIXIN Origin Cangzhou City, Hebei Province, China HS Code 84552210 Production Capacity 15sets/Per MonthProduct Description
Dx 828 Glazed Steel Tile Forming MachineTechnique parameters(1) Processing material: Aluzinc/galvanized steel/colored steel coil
(2) Material thickness: 0.3-0.8mm
(3) Effective width: 828mm
(4) Feeding width: 1000mm
(5) Main motor power: 5.5 kw
(6) Pump power: 4kw
(7) Shaft diameter: 75mm
(8) Forming steps: 13 steps
(9) Roller material: 45# forged steel, with hard chrome plating
(10) Main frame: 300H steel
(11) Medium plate thickness: 14mm
(12) Control systerm: PLC computer control with inverter
(13) Power supply: 240V, 3 Phase, 60Hz
(14) 0veral sized: 6500mm*1500mm*1500mm
(15) Weight: About 3.5tons
Work flow
Manual decoiler- Roll forming machine- PLC control- Hydraulic system - Post cut- Stacking
Specific description
(1) Manual decoiler
Un-powered, single head, max capacity: 5000kg
(2) hydraulic pump station
It is controlled by gear wheel oil pump, after filling the hydraulic oil into the hydraulic oil tank, the pump drive the cutting machine to begin the cutting job.
(3) Computer control cabinet
It adopts TaiDa PLC to control, the target sheet length is adjustable.
Computed mode has two modes: Automatic and manual.
Touch screen.
(4) Output table
It is used to load the finished sheet. This kind is convenient for shipment.
(5) Spare parts
No. | Name | Unit | Qty |
1 | Manual decoiler | set | 1 |
2 | Main forming machine | set | 1 |
3 | PLC control system | set | 1 |
4 | Hydraulic pump station | set | 1 |
5 | Post cut | set | 1 |
6 | Electric motor | set | 1 |
7 | Output table | set | 1 |
If u have any interest ,please contact me any time
