• Model NO.：NM202
• Raw Material：PPGI Sheet
• Thickness Range：0.3-0.8mm
• Machine Power：5.5kw+3kw
• Machine Weight：About 5 Tons
• Warrenty：12 Months
• Transport Package：Plastic Film & Steel Wire Fixed
• Specification：6500mm*1500mm*1500mm(L*W*H)
• Trademark：NEXUS MACHINERY
• Origin：China
• HS Code：8455221000
• Production Capacity：30 Sets , Months

Manual decoilerCapacity5tonFeeding widthMAX 1300mmExpanding range460-520mm Fully Automatic Corrugated Roofing Tile Roll Forming Machine PriceMain motor power5.5kwDrive1'' single chainType:Wall boardMain shaft dia¢70mmmaterial45# forge steel and quenchedRoller material45# high grade forge steel ,chrome coated 0.05mmRoll station18 groupsRaw material0.3-0.7mmCoil width 1200mmWorking speed10m--15m/min(Exclude cutting time)Length Tolerance±1.5mmWeight of machineAbout 5 tonSize of machineAbout 7500×1800×1500mm L x W x HColor of machineYellow and BlueCoderOmron, made in JapanControlPLC Panasonic, made in Japan. 380V 50HZ,3phase (Also depend on client)Computer operating paneltouching screenOther electrical elementSchneiderCuttingHydraulic cutting. Auto cutting when reach the set lengthHydraulic power3KWBlade materialCr12mov,quenched 58°-62°Working pressure16mpaCutting tolerance+/- 1.0mm
4. Equipment list :


No.	Product Name	QTY
1	5T Manual decoiler	1
2	Fully Automatic Corrugated Roofing Tile Roll Forming Machine Price  (Includes Hydraulic cutting, PLC computer, Electrical cabinet, Hydraulic system)	1
3	Passive Output table	2
Sum		4

5. Character of main structure:

1. The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and most of the connectors are screw which make the machine flexible and stronger.
2. All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
3. We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .
4. It is very easy to install the equipment and suitable for producing in the factory.
5. Low noise with high efficiency.

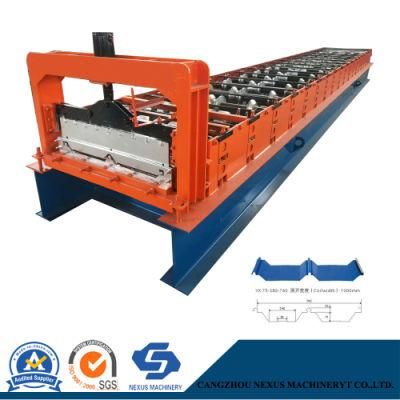

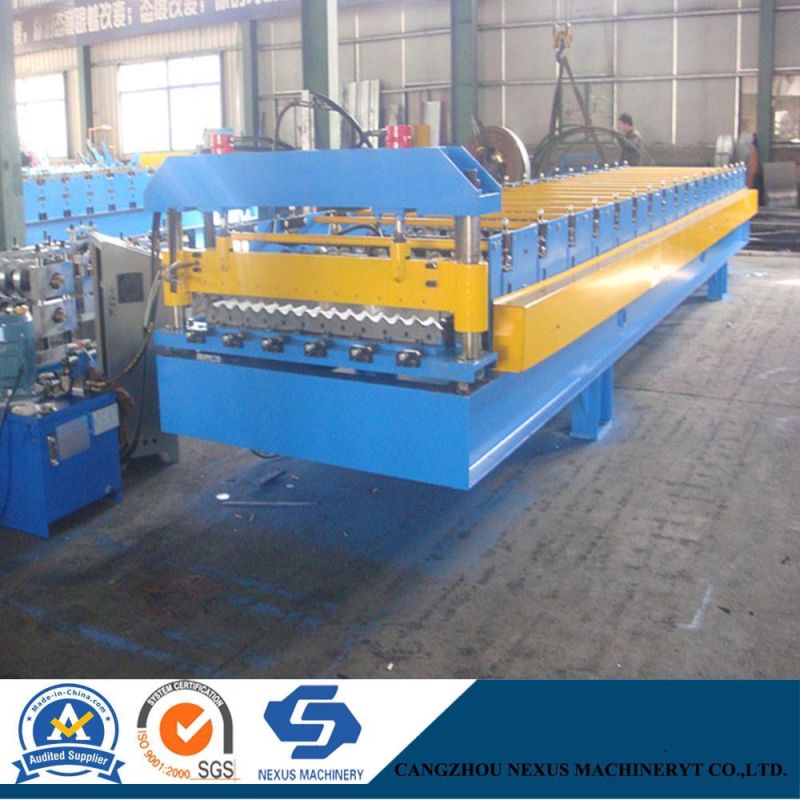

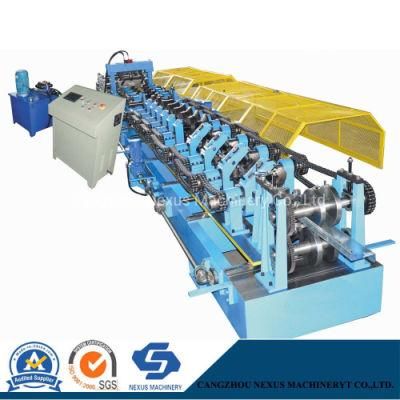

6. Photos of Fully Automatic Corrugated Roofing Tile Roll Forming Machine Price for Reference:




7. Why Choose US?
1. More than 10 years experiences in manufacturing roll forming machines.
2. We use Automatic control software to manage productive information makes the whole automatic control system has an improvement in automaticity.
3. High performance in operation, maintenance, and debugging. Easy to load and unload.
4. Good machine quality, Competitive price and Fast delivery time and superior service.
