• Model NO.：GCGZ-CNC-7000
• Trademark：TIANCHEN
• Origin：China
• HS Code：8461409000
• Production Capacity：2000sets,Year

Basic Info.

Model NO. GCGZ-CNC-7000 Trademark TIANCHEN Origin China HS Code 8461409000 Production Capacity 2000sets/Year

Product Description

High Speed Aluminium  3 axis CNC Machine Center
Model: GCGZ-CNC-7000
Product DescriptionApplicable for milling and cutting processing for various holes and slots of aluminum window and door curtain wall or industrial aluminum profile.
Features & Advantages

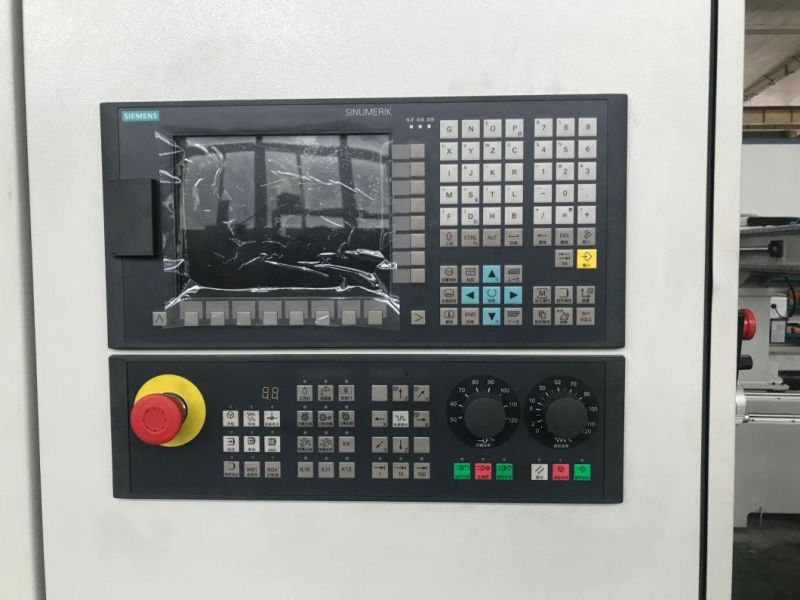

• Adopting SIEMENS high performance CNC system, coordinated with three-dimensional programming software, perfectly realized the milling process.
•


• Adopting original imported high quality control system, servo motor, high quality ball screw,
• linear guide rail pair, bearing and other parts to make sure a high processing accuracy.
•

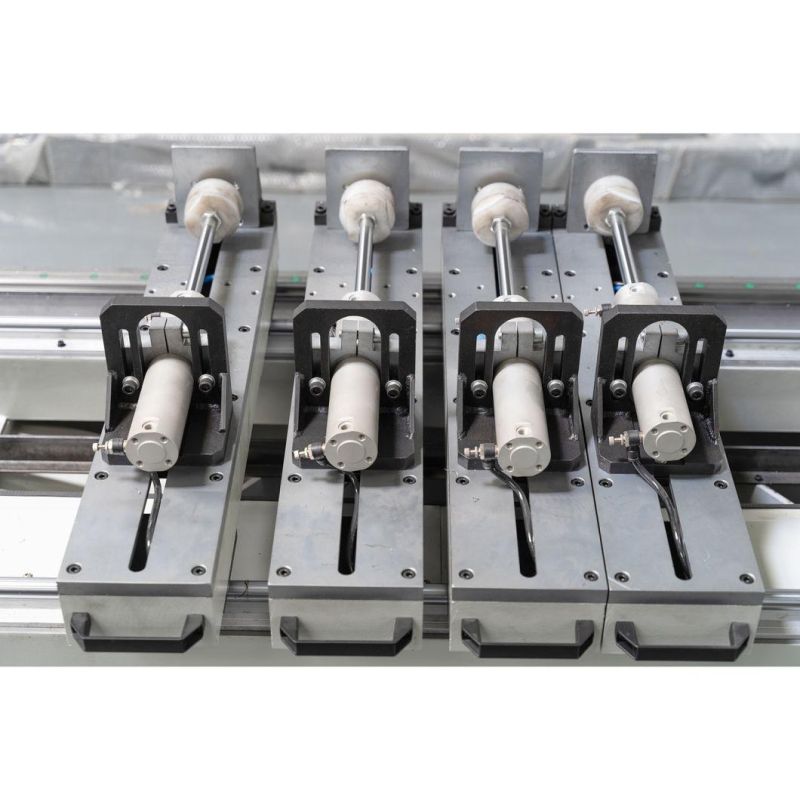

• The fixture can be located freely.
•

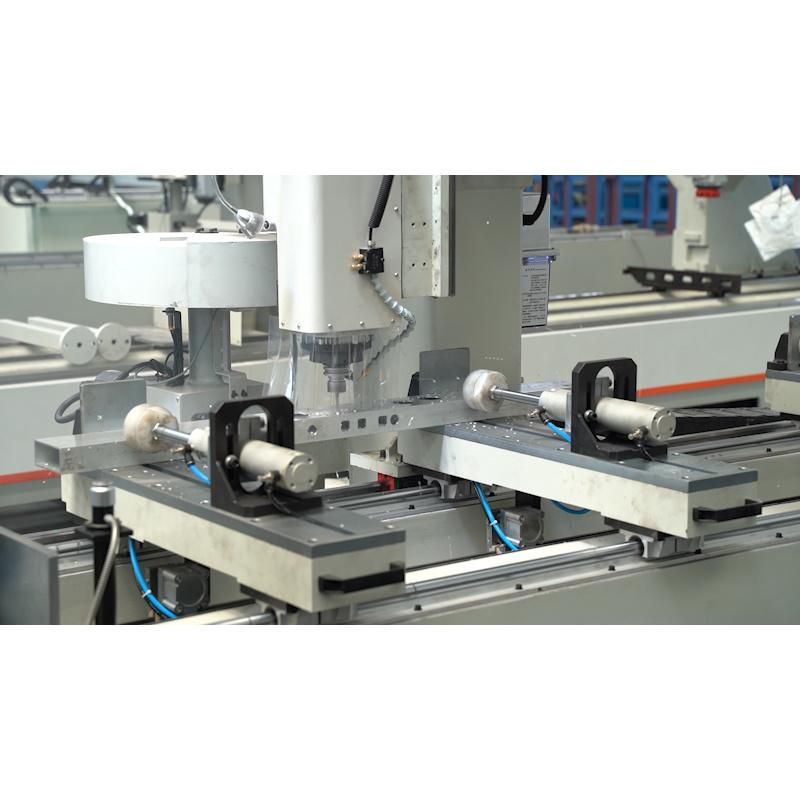

• Double worktable can process two pieces or two types of profile, interactive loading without interfere each other.
•
• Equipped with 12 position cutting tool, and able to automatically changing tools.
•

• Adopting high speed electrical spindle imported from Italy, able to finished the process of various hole slots of aluminium profile, with extremely high working efficiency.
•
• A 9 meter extra length model can be customized.

Technical Parameters

X-axis Range	7000mm
Y-axis Range8	800mm
Z-axis Range	320mm
X-axis Speed	0~60m/min
Y-axis Speed	0~24m/min
Z-axis Speed	0~16m/min
Main shaft Rev./power	0~18000rpm/7.5kw
Cutter Magazine	12 cutter positions, cutters auto-change is available in the program
Cutter Max length	135mm
Total Power	12KW
Clamp Station	8
Work Area(W x H x L)	500x250x7000mm
Contour Dimension (W x H x L)	11300x2350x2550mm
Weight	about 4500kg
