• Model NO.：LJVE-CNC-2X6000
• Voltage：380V
• Cutting Motor Power：3×3.0 Kw
• Total Power：18kw
• Operation Air Pressure：0.6-0.8MPa
• Air Consumption：150L,Min
• Blade Specification：Dia550X30X4.4;120t
• Cutting Height：30-140 mm
• Cutting Width：30-100 mm
• Transport Package：Fixed on Steel Pallet
• Specification：14000x5000x2500 mm
• Trademark：Tianchen
• Origin：Jinan, Shandong, China
• Production Capacity：2000PCS,Year

Basic Info.

Model NO. LJVE-CNC-2X6000 Voltage 380V Cutting Motor Power 3×3.0 Kw Total Power 18kw Operation Air Pressure 0.6-0.8MPa Air Consumption 150L/Min Blade Specification Dia550X30X4.4;120t Cutting Height 30-140 mm Cutting Width 30-100 mm Transport Package Fixed on Steel Pallet Specification 14000x5000x2500 mm Trademark Tianchen Origin Jinan, Shandong, China Production Capacity 2000PCS/Year

Product Description

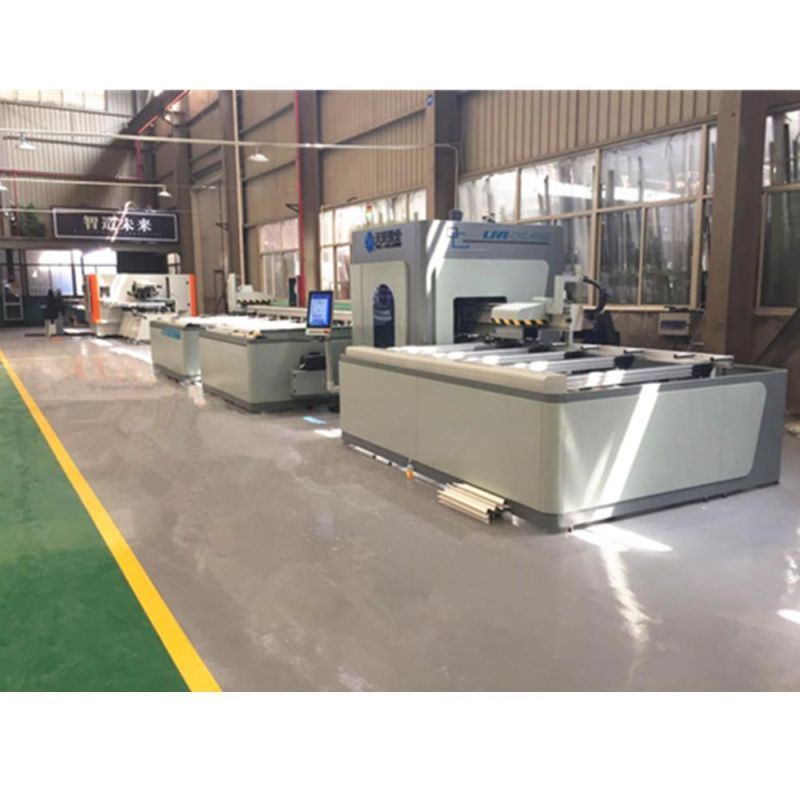

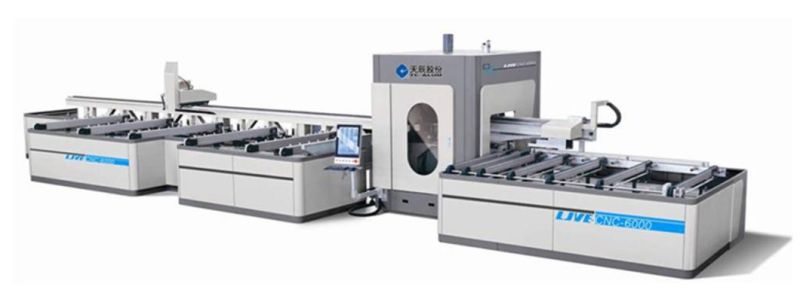

Aluminum Profile CNC Sawing Machine Center
Model: LJVE-CNC-6000

Product Description
It is used for high effective cutting aluminum profile at 45°or 90°



Features & Advantages

1. The auto worktable continuous feeding and clamping profile.
2. It adopts high precision straight guide rail pair to ensure stability and reliable operation.

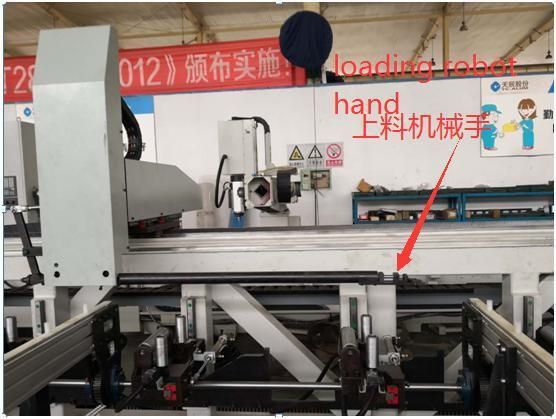

3. Load mechanical arm adopts Siemens servo drive can reach to three axis (X, Y, Z) auto control. Imported high precision gear rack drive to ensure reliable feeding.
4.



5. Blade connected with imported motor. Cut smooth, steady and high precision.
6. Siemens control system makes machine working steady and reliable.

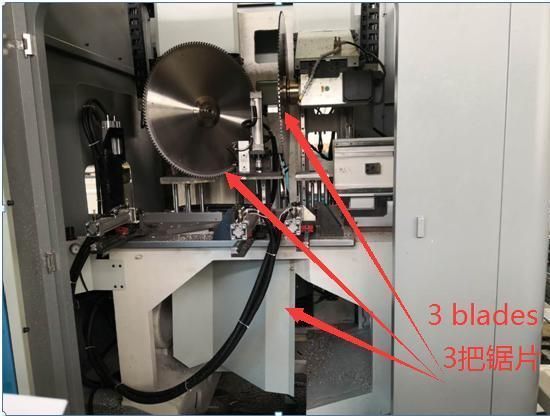

7. It can complete the 45°cutting through up and down saw blade respectively cutting, high cutting precision, which can avoid partial breakage of profile.
8. It can continuously complete profile ±45° or 90° cutting, high processing efficiency.
9. Unload mechanical arm adopts servo driver, which can realize fast unloading, positioning function and be able to reach the auto output of the shortest profile 260mm.
10. Roller linear guide pair and ball screw equipped with auto lubrication system, improve the precision and service life.
11. Hinge type constantly conveys scrap and aluminum scrap to the outside.
12. The totally enclosed safety cover to ensure the personal security.
13. Option: Profile lifting platform to achieve the single person feeding operation
14. Option: Bar code printer for E-works.

Technical Parameters

Cutting motor power	3×3.0 kW
Total power	18kW
Power supply	380V 50Hz
Operation air pressure	0.6~0.8MPa
Air consumption	150L/min
Blade specification	Ф550×Ф30×4.4×120T
Cutting height	30~140 mm
Cutting width	30~100 mm
Raw materials	260~5800 mm
Cutting angle deviation	±5′
Length deviation	±0.15mm
Repeat locating length deviation	±0.05mm
Contour dimension	14000×5000×2500 mm
Weight	7000 kg

Certificates




Service and Warranty
1.24hr online customer service
2. Offering customized service and OEM service
3. Engineers available to service machinery overseas
4. 12 months warranty for whole machine, excepting the wearing parts.

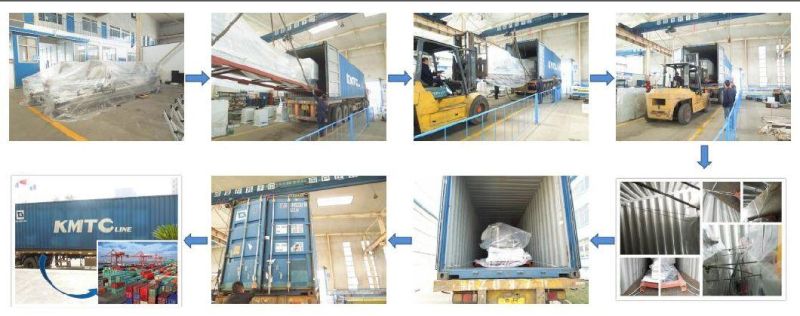

Packing and Shipping
Packaging: Clean and lubricate the machine and necessary parts before delivery; carefully packed them with protective film, and stably fixed in the container.
Shipping: sea transportation, air transportation
