• Model NO.：SJSZ65,132
• Condition：New
• Customized：Customized
• Automation：Automatic
• Computerized：Computerized
• Screw：Double-Screw
• Material：Stainless Steel
• Power Supply：380V Three Phase
• Inverter：ABB
• Intelligent Temperature Controller：Omron From Japan
• Control System：PLC Control System
• After Sale Service：Life Long with Professional After Sale Team
• Transport Package：PE Film and Wooden Package
• Specification：CE ISO9001
• Trademark：suke
• Origin：Qingdao, China
• HS Code：84775900
• Production Capacity：25sets,Year

I. Machine IntroductionCertificate: CE, ISO9001:2008, SGS,
Brand Name: SUKE

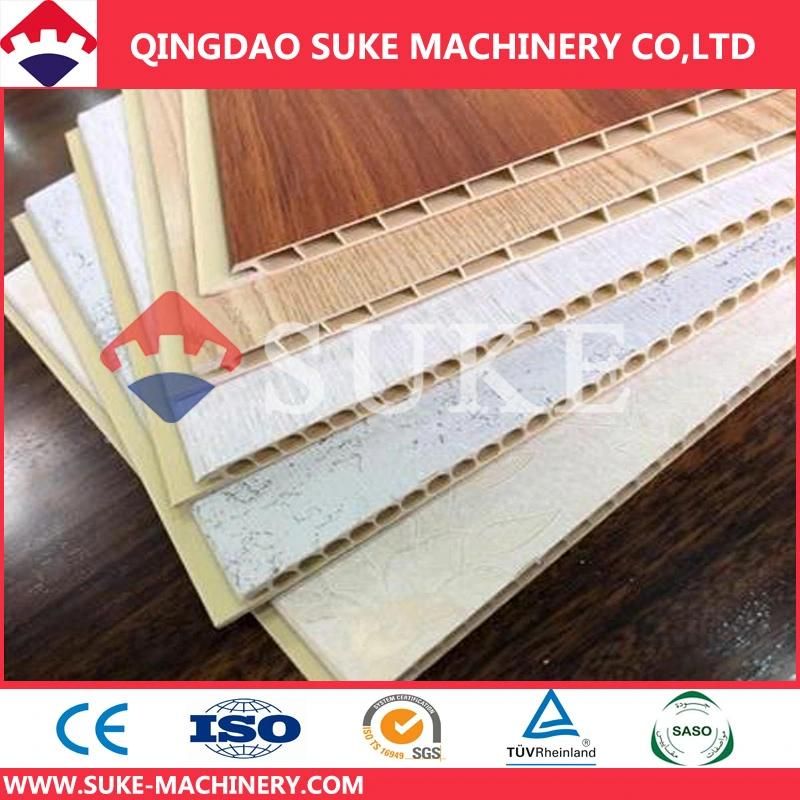

This line is used to produce pvc ceiling panel which used in decoration.
It needs twin screw extruder with power material.
Raw material is PVC power, or with wood power and additives.

II. Production Process FlowRaw materials--- Mixing --- Feeding --- Extruding ---Molding --- Calibrating --- Haul-off --- Cutting--- Stacking--- Printing or Hot stamping(optional) --- Package.
 III. Machine FeaturesConical Twin Screw Extruder:
Adopting specially screw designs according to different materials make the high polymer micro-foam uniform plasticization, high extrusion. Imported famous brands AC inverter makes the rotation speed stable to ensure the main extruder and accessory machines move synchronously.

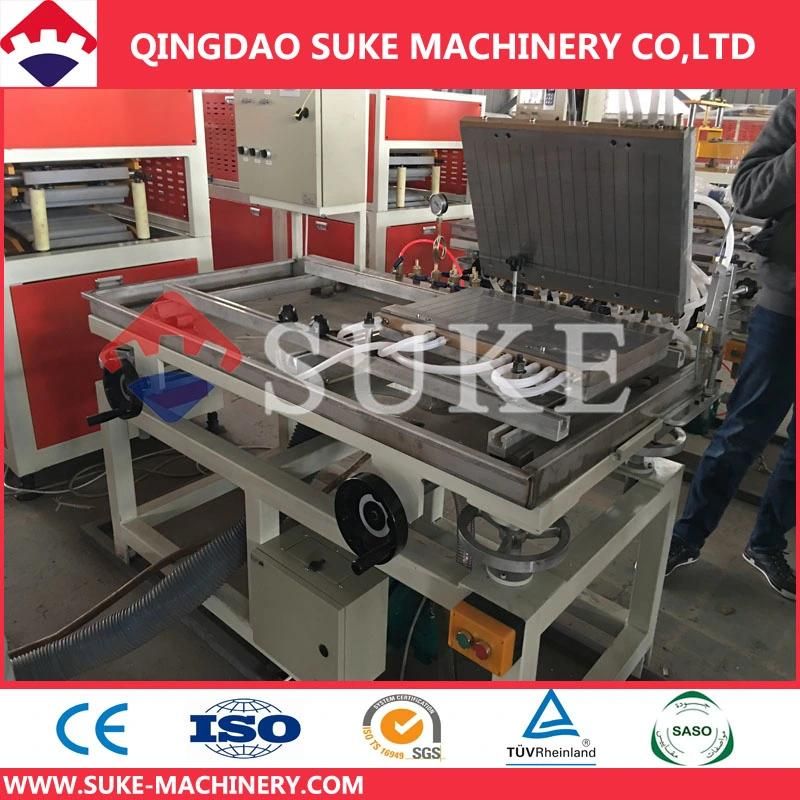

Vacuum calibrating table:
Adopts powerful turbo cooling system, easy to achieve satisfactory cooling effect. According to different moulds and different customer requirements, the vacuum calibrating table can be optional as 4m, 6m.
Haul off machine:
Adopts special lifting technology, and has the features of stable running, reliable working, powerful hauling etc,
Cutting machine:
the moving speed of the cutting unit is synchronized with hauling speed. Through prseting,the cutting unit is capable for automatic cutting with fixed length. Dust recycling device is also equipped.IV. Equipment List:Double Screw Extruder                1 unit
Mould                               1 set
Shaping Machine                     1 unit
Haul-off Machine                     1 unit
Cutting Machine                      1 unit
Stacker                             1 unit
Optional Auxiliary Machine;
Crusher                           1 unit
Mixer                             1 unit
Pulverizer                         1 unit
Air Compressor                    1 unit


 V. Trade TermsPayment Term: 30% for prepayment by T/T, 70% for balanced payment by T/T, or L/C can be acceptable
Delivery Time: 40 days after receipt of prepayment.
Packing Method:  Packing film or wooden case
Guaranteed Time:  12 monthsVI. Machine Test and After ServiceWhen machine finished, we will invite client come to our factory to check the machine and do the machine test. If machine is ok, then client pay for the balance. And inspect machine load the container.
When machine arrives client's factory, if client needs, we will send 1-2 engineer to client's factory do the machine installation and running test, and also train the local worker how to operate and maintain the machine. It is chargeable.

MACHINE TYPE

Model	Output	power	Products thickness	Products width
SJSZ-51/105	50-120kgs/h	60KW	6mm-12mm	60mm-250mm
SJSZ-65/132	80-200 kgs/h	80KW	8mm-20mm	200mm-600mm
