• Model NO.：Comflex
• Structure：Horizontal
• Automatic Grade：Automatic
• Warranty：1 Year
• Carrier Rotation Speed (R/Min)：4.56r,Min
• Braiding Angle：54, 44"
• Product Name：48-Carrier Wire Braiding Machine
• No of Carrier：48-Carrier
• Model：Gbg-48
• ID of The Braids：4mm-600mm
• Wire Diameter：0.3-0.8mm
• Transport Package：Standard Seaworthy Package
• Specification：ISO9001
• Trademark：Comflex
• Origin：Jiangsu, China
• HS Code：844790900
• Production Capacity：5000sets Per Year

Basic Info.

Model NO. Comflex Structure Horizontal Automatic Grade Automatic Warranty 1 Year Carrier Rotation Speed (R/Min) 4.56r/Min Braiding Angle 54, 44" Product Name 48-Carrier Wire Braiding Machine No of Carrier 48-Carrier Model Gbg-48 ID of The Braids 4mm-600mm Wire Diameter 0.3-0.8mm Transport Package Standard Seaworthy Package Specification ISO9001 Trademark Comflex Origin Jiangsu, China HS Code 844790900 Production Capacity 5000sets Per Year

Product Description



 48-carrier wire braiding machine
 Product description of wire braiding machine

* Braiding ID/OD of the hose: 30-75mm
* Rotation speed of the carrier:7.25r/min.
* Braiding angle:54°44″
* Pitch distance:66-166mm
* Pulling speed:29-72m/h
* No.of carriers:48 carriers
* Motor power:Y132M1-6   7.5KW




Machine description

Wire braiding machine
The wire braiding machines we can make as follows:
Wire diameter:0.3mm to 0.8mm
No.of spindles:16 to 112 spindle braiding machine
ID of the braids:4mm to 600mm
Material of wires:stainless steel,galvanized carbon steel, copper wire

Technical data
Single decker steel wire braiding technical data

Description	Braiding diameter(mm)	Carrier Rotation Speed (r/min)	Carrier Rotation Speed (r/min)	Braiding Pitch (mm)	Pulling Speed M/H	No.carrier	Motor Power KW
GBG16-carrier wire braiding machine	4-10	24.8	54°44"	9-22	13-33	16	Y100L1-4 2.2KW Y100L2-4 3.0KW
GBG20-carrier wire braiding machine	6-16	19.8	54°44"	13-29	15-34.5	20	Y100L1-4 2.2KW Y100L2-4 3.0KW
GBG24-carrier wire braiding machine	10--31	14.25	54°44"	22-69	21-66	24	Y100L1-4 2.2KW Y100L2-4 3.0KW
GBG36-carrier wire braiding machine	15--45	10	54°44"	33-100	22-66	36	Y100L2-4 3.0KW Y100L2-4 3.0KW
GBG48-carrier wire braiding machine	30--75	7.25	54°44"	66-166	29-72	48	Y132M2-6 5.5KW Y112M-4 4.0KW
GBG64-carrier wire braiding machine	51-110	4.56	54°44"	67-240	18.6-102	64	Y160M-6 7.5KW Y112M-4 4.0KW
GBG72-carrier wire braiding machine	80-150	4.25	54°44"	170-330	44-83	72	Y160M-6 7.5KW Y112M-4 4.0KW
GBG96-carrier wire braiding machine	150-300	2.75	54°44"	240-750	50-120	96	Y180L-6 15KW Y160M-6 7.5KW
GBG112-carrier wire braiding machine	115-400	2.778	54°44"	310-800	42-130	112	Y132M1-6 4.0KW Y180L-6 15KW
GBG128-carrier wire braiding machine	200-400	2.088	54°44"	500-1300	72-300	128	Y132S-4 5.5KW Y180L-6 15KW


Double decker steel wire braiding technical data

Description	Braiding Diameter (mm)	Carrier Rotation Speed (r/min)	Braiding angle	Braiding Pitch (mm)	Pulling Speed M/H	Carrier NO.	Motor Power KW
GBG-2S16	4-10	24.8	54°44"	9-22	13-33	32	Y100L1-4 2.2KW Y100L2-4 3.0KW
GBG-2S20	6-16	19.8	54°44"	13-29	15-34.5	40	Y100L1-4 2.2KW Y100L2-4 3.0KW
GBG-2S24	10--31	14.25	54°44"	22-69	21-66	48	Y100L1-4 2.2KW Y100L2-4 3.0KW
GBG-2S36	15--45	10	54°44"	33-100	22-66	72	Y100L2-4 3.0KW Y100L2-4 3.0KW

Product showing

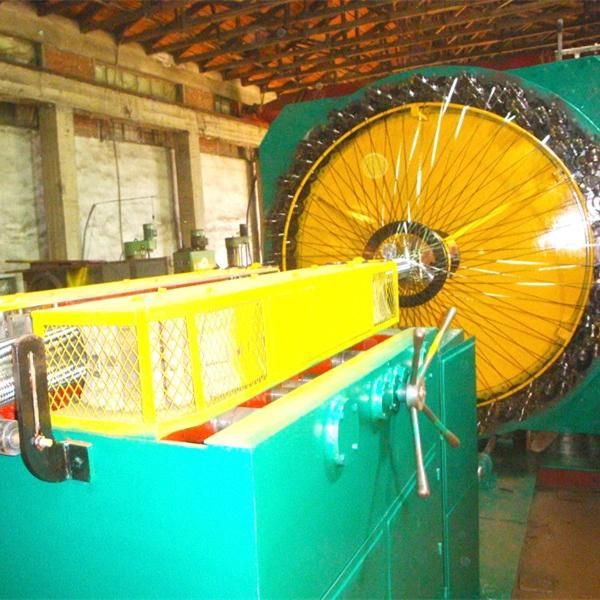

                                   128-carrier single decker wire braiding machine

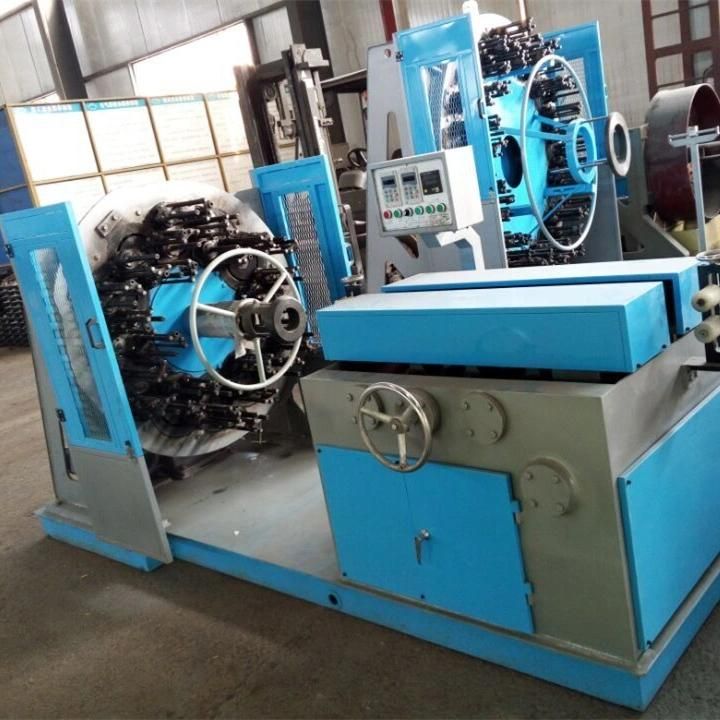

                 96-carrier single decker wire braiding machine

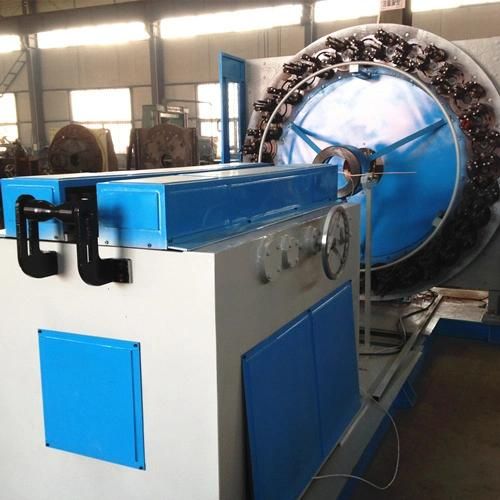

24-carrier double decker steel wire braiding machine

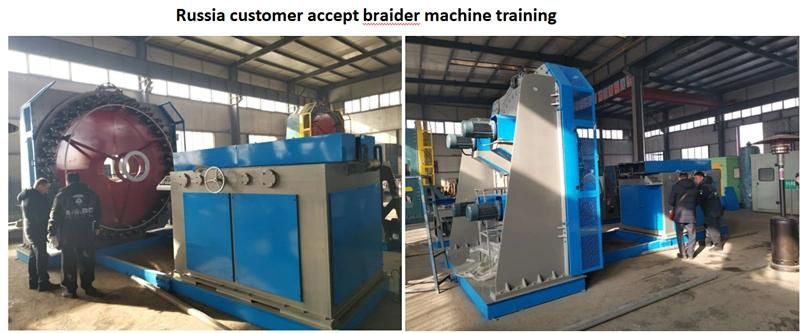

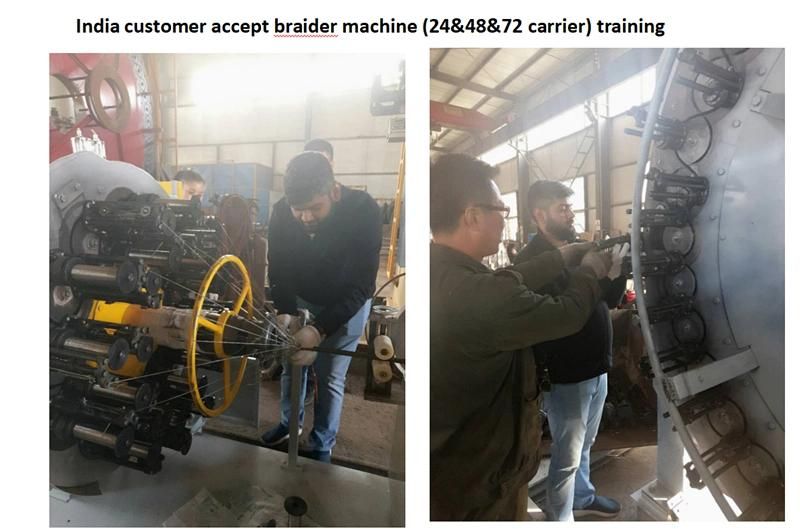

Customer visiting&training




                                                                                      96 carrier wire braiding machine

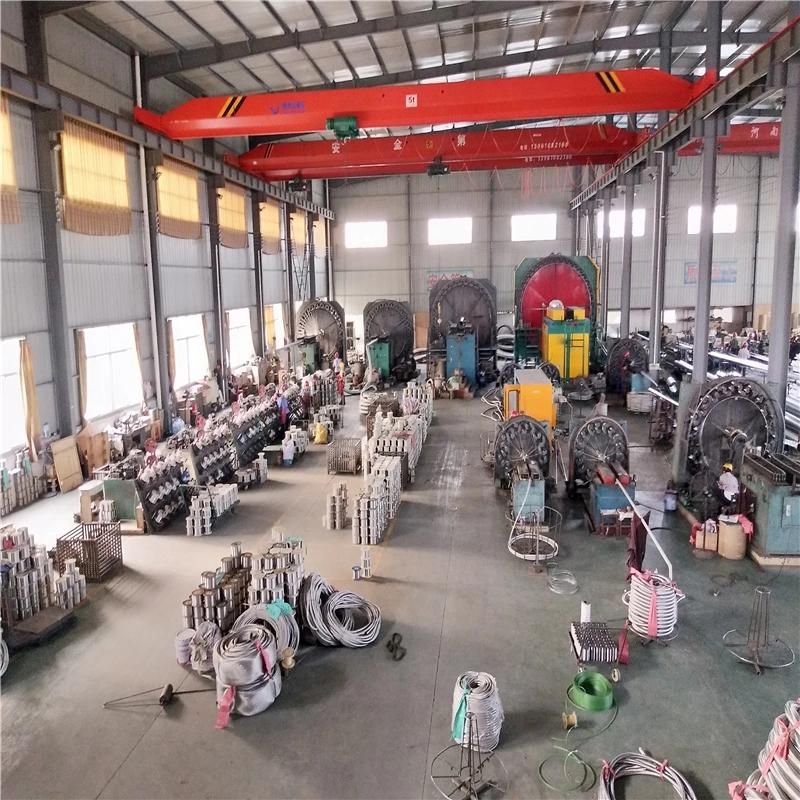

Workshop Show



FAQ for steel wire braiding machine

1.  Why choose us as your supplier?
    We are most professional in steel wire braiding machine with more than 30 years of experience

2.  What wires can you machine braid?
   A. Stainless steel wire
   B. Copper lad steel wire
   C. Copper wire
3. What application of your braiding machine?
Popular for both rubber hose and metal hose manufacturing

We need to know the following information to quote you correct machineries:

1. What outer diameter of the hose you want to braid?
2. Structure of the braid?
3. How many carriers/bobbins you need for braiding your hose? For instance, 24, 36,64,72,96,128 carrier, etc..
