• Model NO.：LMB-120
• Contour Dimension：1850*1680*1210mm
• Transport Package：Standard Export Package
• Specification：About300kg
• Trademark：Tianchen
• Origin：Jinan, Shandong Province
• HS Code：84614090
• Production Capacity：2000 Sets,Year

Basic Info.

Model NO. LMB-120 Contour Dimension 1850*1680*1210mm Transport Package Standard Export Package Specification About300kg Trademark Tianchen Origin Jinan, Shandong Province HS Code 84614090 Production Capacity 2000 Sets/Year

Product Description

Purpose:

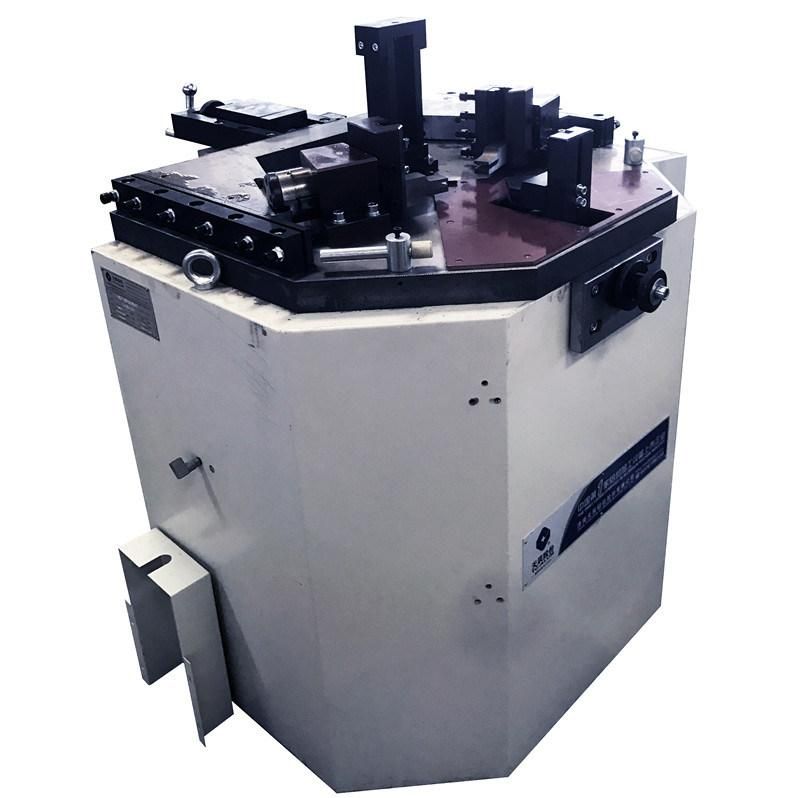

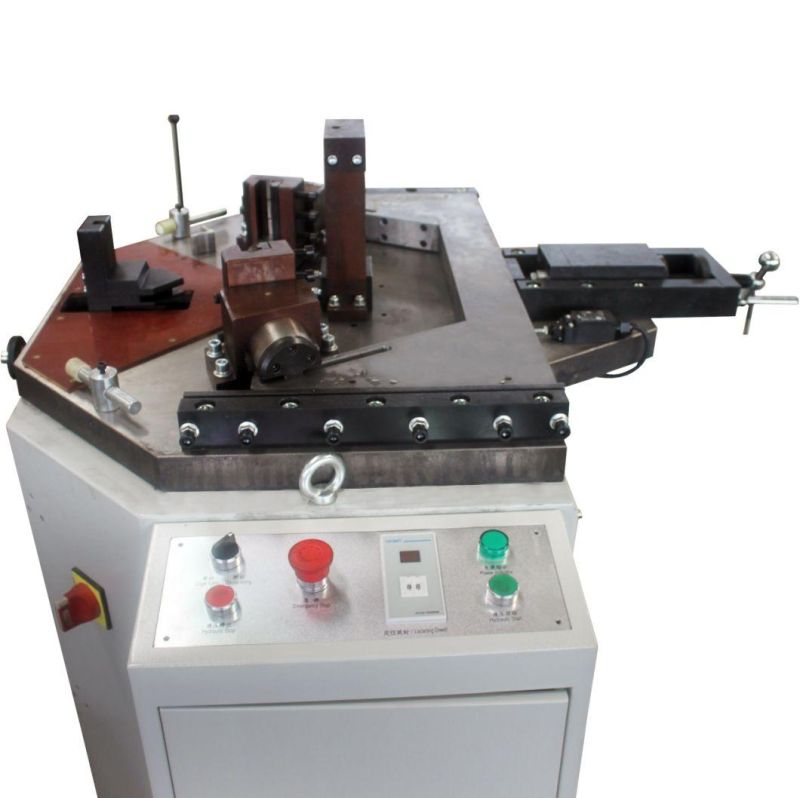

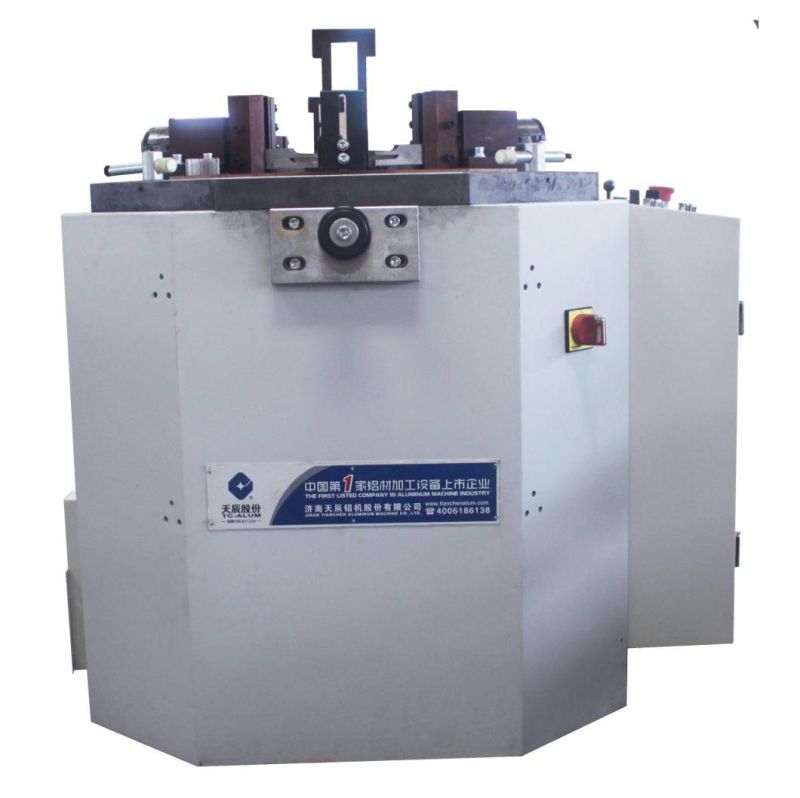

It's used for corner crimping of aluminum windows and doors at 90° With corner connectors.

Product Features:

1. This machine used for connection of 90° angle structure of aluminum doors and windows.
2. The power is controlled by the hydraulic system to make the working stable.
3. The feeding of left/right stamping head is synchronous and avoids the deformation.
4. The synchronous feeding device makes the machine easy to adjust.
5. Singe cutter more points corner crimping cutter can be installed to ensure corner crimping of heat insulting off-bridge aluminum win-door more reliable.
6. The machine body is made of famous brand steel by the professional welding. The steel has passed the aging treatment.
7. It is collocate single cutter if many points crimping cutter ensure reliably crimping heat aluminum windows and doors.

Power supply	380V 50Hz
Motor power	1.5KW
Rated oil pump pressure	16Mpa
Motor rotational speed	1400r/min
Profile processing height	120mm
Profile processing width	90mm
Total combining pressure	0.5~0.8Mpa
Air consumption	0.1L
General pressure of corner combining	48KN
Corner combining casing movement journey	85mm
The adjustable range of the main location block	70mm
Contour dimension	1850× 1680× 1210
Weight	300kg
