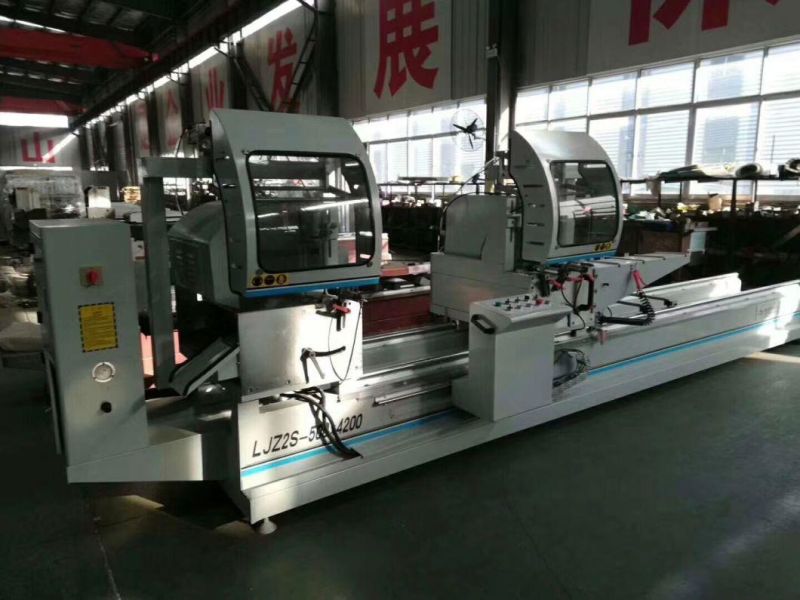

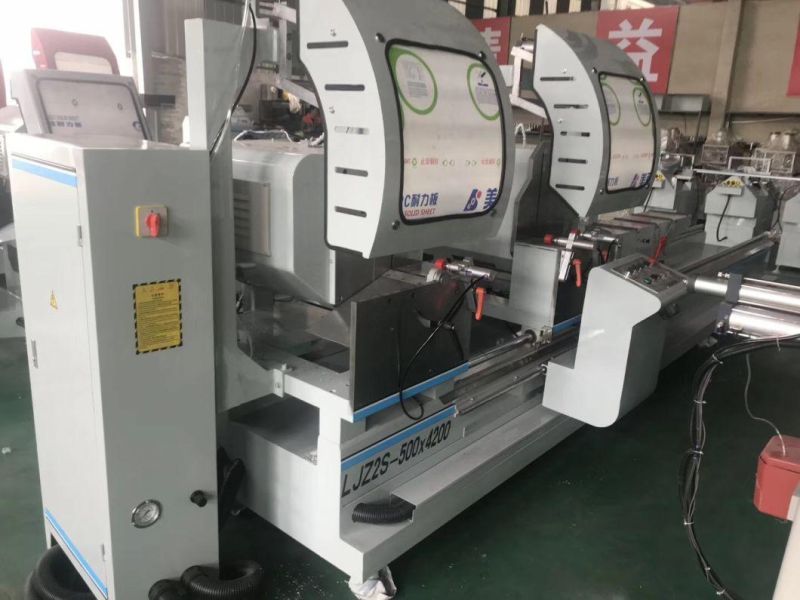

• Model NO.：LJZ2S-500X4200
• CNC or Not：not CNC
• Voltage：Customized
• Air Pressure：0.5~0.8MPa
• Input Voltage：380V 50Hz or as Customer Need
• Input Power：2.2X2kw
• Air Consumption：80L,Min

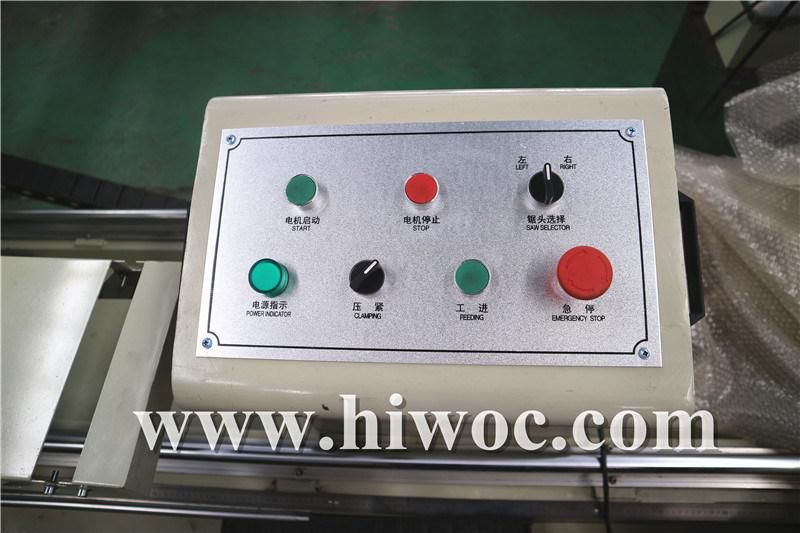

• Motor Rotary：2800r,Min
• Cutting Width*Height：135X200mm
• Cutting Length：400-4200mm
• Saw Blade Specification：500mm, 30mm
• Cutting Angle：90° 67.5° 45°
• Overall Size：5530*1650*1950mm
• Transport Package：Film and Plywood Case
• Specification：5530*1650*1950mm
• Trademark：Hiwoc
• Origin：China
• HS Code：84659200
• Production Capacity：1000,Year

Basic Info.

Model NO. LJZ2S-500X4200 CNC or Not not CNC Voltage Customized Air Pressure 0.5~0.8MPa Input Voltage 380V 50Hz or as Customer Need Input Power 2.2X2kw Air Consumption 80L/Min Motor Rotary 2800r/Min Cutting Width*Height 135X200mm Cutting Length 400-4200mm Saw Blade Specification 500mm, 30mm Cutting Angle 90° 67.5° 45° Overall Size 5530*1650*1950mm Transport Package Film and Plywood Case Specification 5530*1650*1950mm Trademark Hiwoc Origin China HS Code 84659200 Production Capacity 1000/Year

Product Description

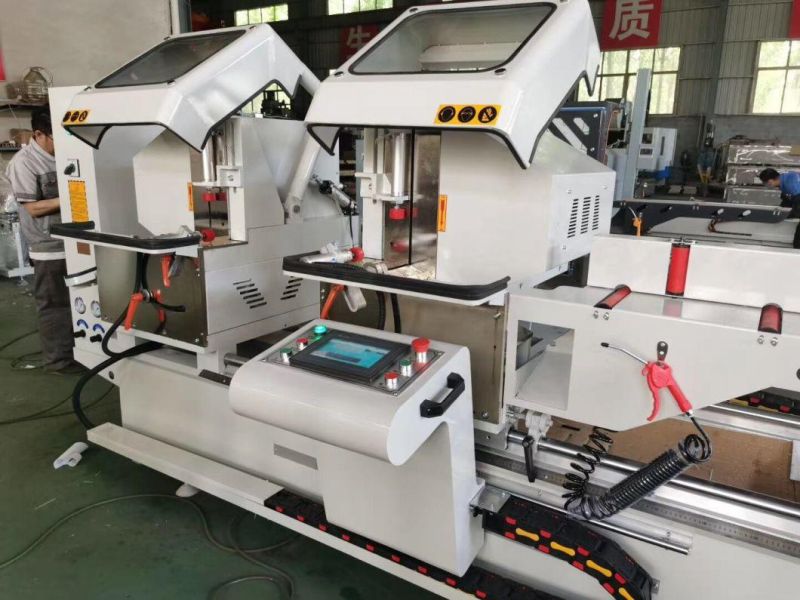

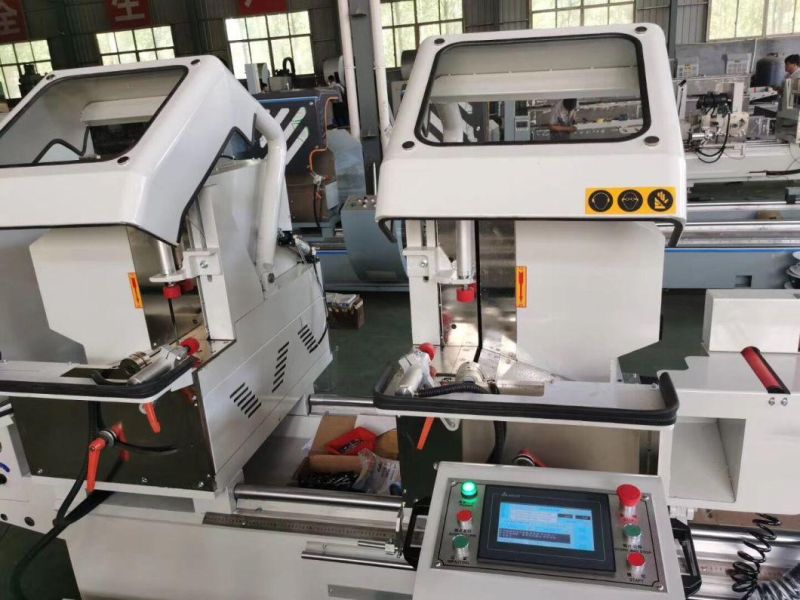

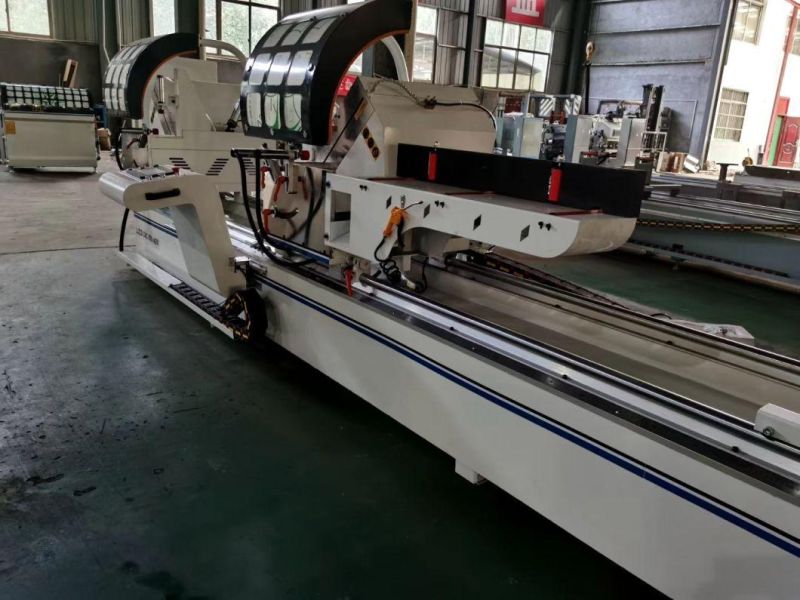

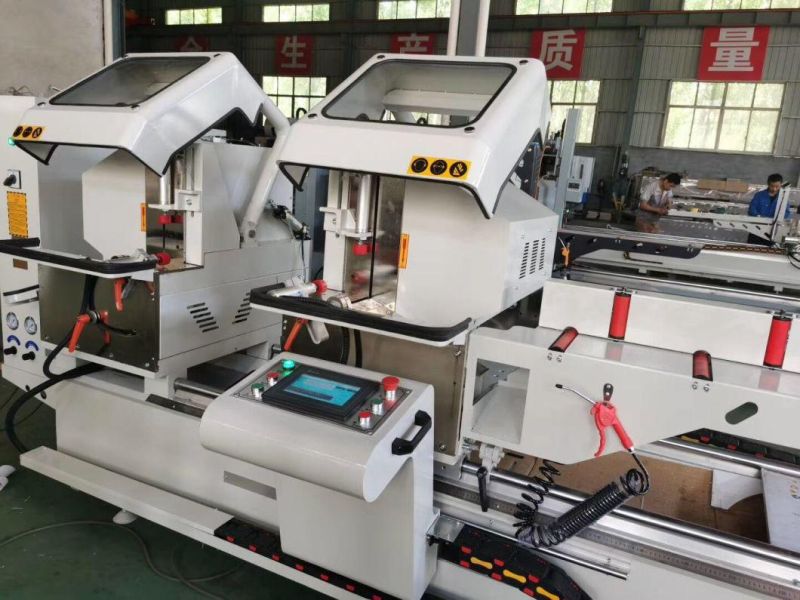

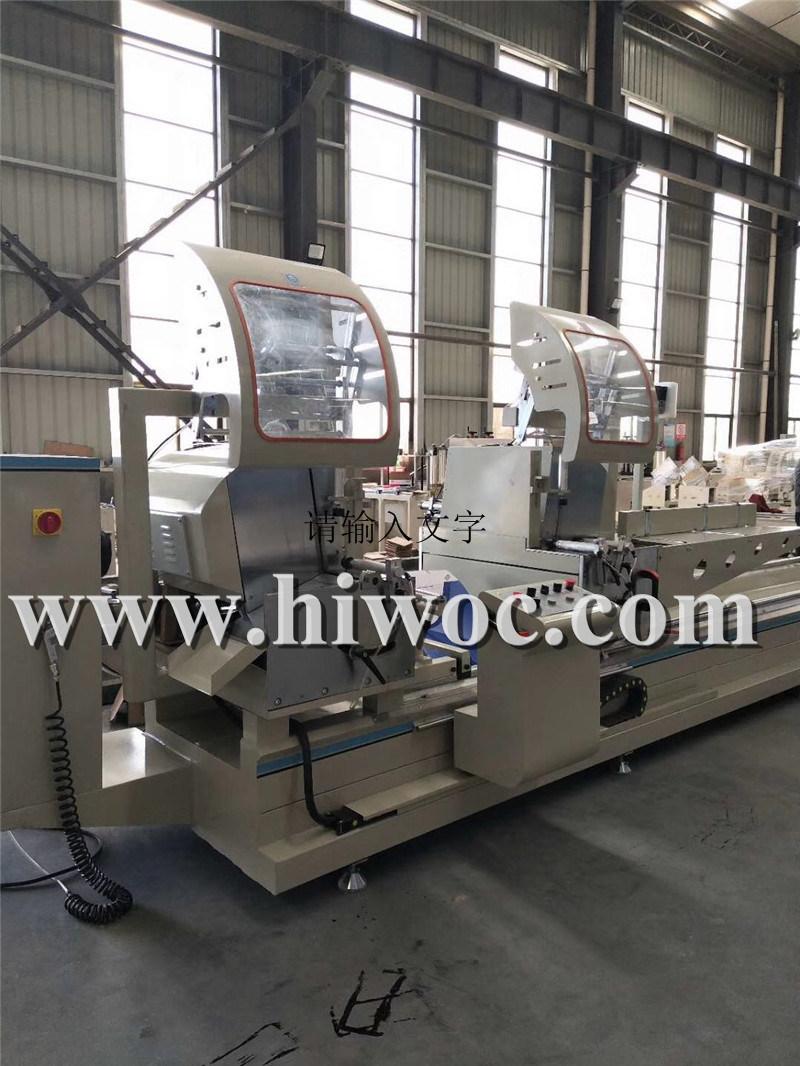

This machine can cut both pvc and Aluminum profile.

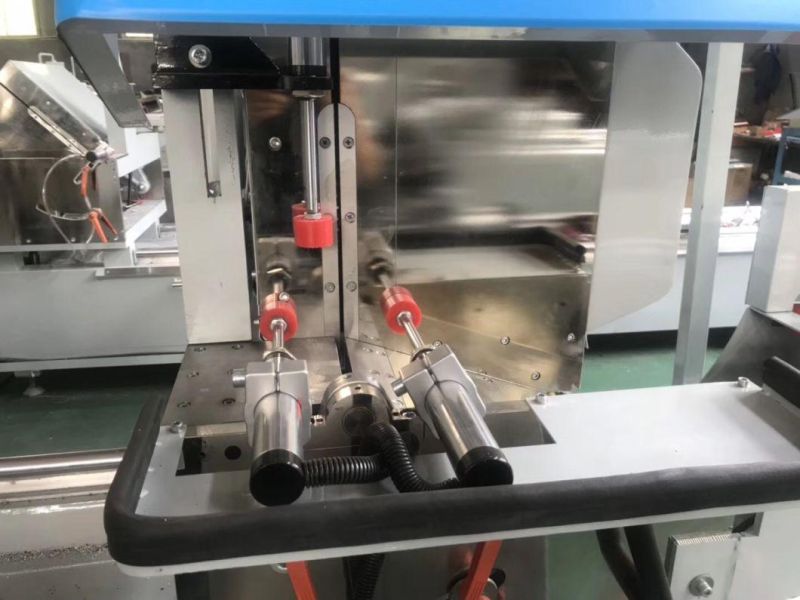

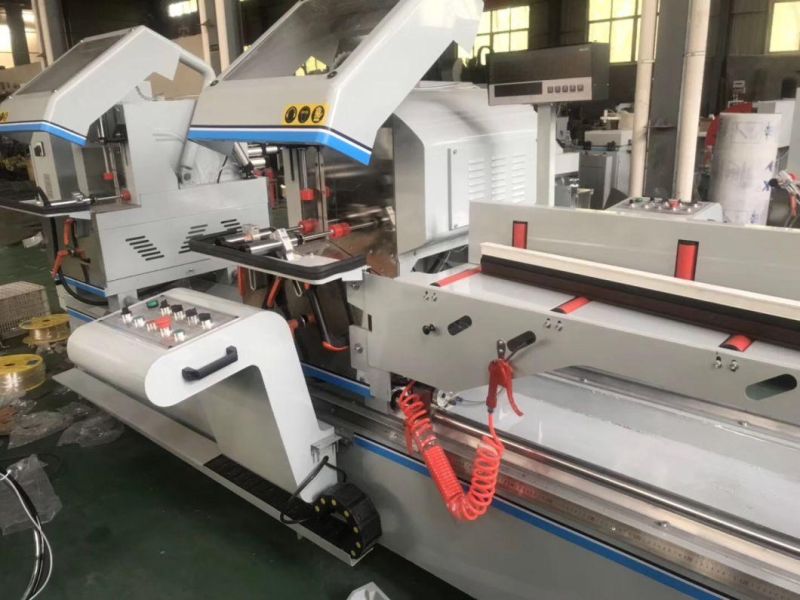

 Feature1. Imported carbides blade is of accurate processing and high endurance.2. Saw blade rotates smoothly due to the high accurate spindle3. Uniform speed feeding and smooth motion is due to air hydraulic damping cylinder.4. The feeding system adopts the imported linear guide pair, with high accuracy and stability5. Two saw heads are adjustable and cut the profiles in -45 ° -67.5 ° 90 °6. Auto open and close shield marked the operation safety.7. Right head feeding adopts high lead ball screw with high accurate driving, locating and smooth working.8. This machine uses the digital display device.9. Vertical and horizontal clamping cylinder.
10. Spraying cooling system.

Parameter
Air Pressure	0.5~0.8MPa
Input Voltage	380V 50Hz or As Customer need
Input Power	2.2x2Kw
Air consumption	80L/min
Motor rotary	2800r/min
Cutting width*height	135X200mm
Cutting length	400-4200mm
Saw blade specification	Ø500×Ø30
Cutting angle	90°  67.5°  45°
Overall size	5530*1650*1950mm
Weight	1450kg



Main accessory
Saw blade	Japan Wagen
Solenoid valve	Airtec
Cylinder	Huatong
Motor	Anhui Sanyang (Best Chinese Motor Brand)
Air Filter Device	STNC
Electrical Button and Switcher	Schneider
AC Contactor and Circuit Breaker	Schneider
Approach Switch	Japan Omron



Standard accessory
Saw blade	2pcs
Work piece supports	2set
Air Gun	1pc
Complete tooling	1set
Certificate	1pc
Operation Manual	1pc
