Steel Sheet High Pressure Floor Deck Roll Forming Machine in Botou Dixn Factory
Cangzhou Dixin Roll Forming Machine Co., Ltd.- Certification：Ce, SGS
- Condition：New
Base Info
- Model NO.：720
- Customized：Customized
- Usage：Floor
- Transmission Method：Hydraulic Pressure
- Machine Name：Floor Deck Roll Forming Machine
- Color：Blue
- Roller Material：High Grade 45# Steel
- Control System：PLC Computer
- Hydraulic Pump Station：3kw
- Electric Motor：3kw
- Voltage：380V, 3phase, 50Hz
- Middle Plate：14mm
- Main Frame：300h Steel
- Forming Steps：11
- Transport Package：Covered with Plastic Film
- Specification：CE, SGS
- Trademark：DIXIN
- Origin：Botou, Hebei, China
- HS Code：845522
- Production Capacity：30 Sets,Month
Description
Basic Info.
Model NO. 720 Customized Customized Usage Floor Transmission Method Hydraulic Pressure Machine Name Floor Deck Roll Forming Machine Color Blue Roller Material High Grade 45# Steel Control System PLC Computer Hydraulic Pump Station 3kw Electric Motor 3kw Voltage 380V, 3phase, 50Hz Middle Plate 14mm Main Frame 300h Steel Forming Steps 11 Transport Package Covered with Plastic Film Specification CE, SGS Trademark DIXIN Origin Botou, Hebei, China HS Code 845522 Production Capacity 30 Sets/MonthProduct Description

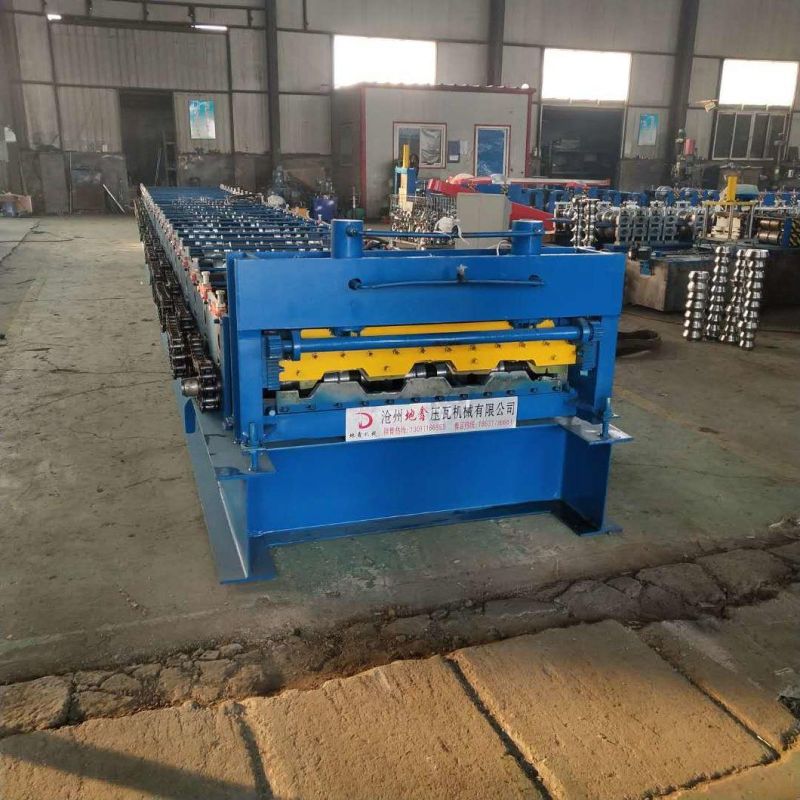

Steel Sheet High Pressure Floor Deck Roll Forming Machine in Botou Dixn factory

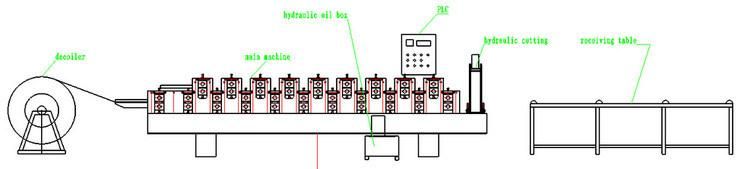

Roll forming machien components:Man-made decoiler---Color steel coil feeding & guiding device---Main forming machine---Computer Control system---Hydraulic pump station---Cutting head---Output table

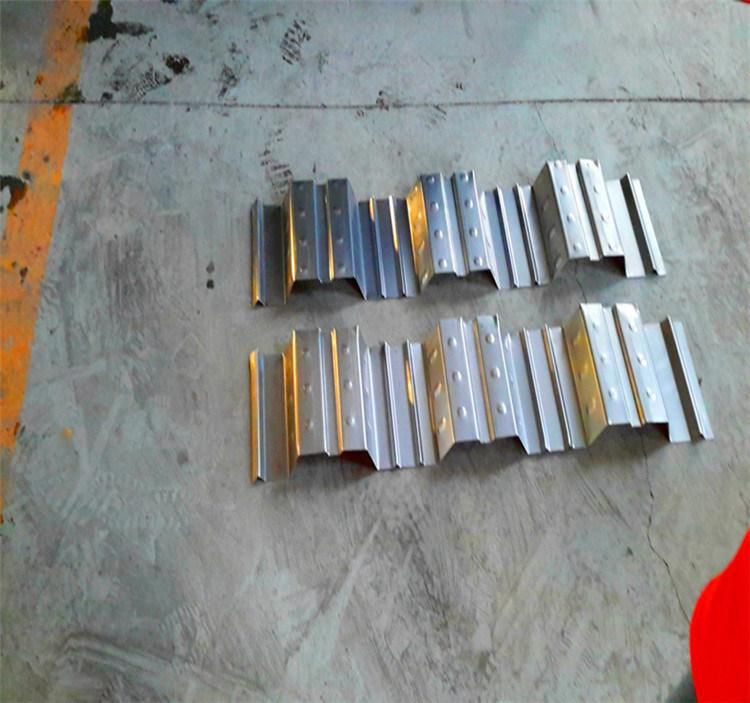

Samples
Application:Color steel sheet which are produced by our roll forming machine are widely used in gardens, factories, resorts, hotels, exhibition halls, vacationlands, ancient architectures and modern villas. With advantages of long life time, stable performance and high efficiency, it is warmly welcomed by our customers. Our service:1. We provide 1 year warranty for our customers.2. Any parts damaged because of quality problem will be changed for free within the first year.3. Technical support is provided for free in the whole life of the machine. FAQ:1. What's your payment terms?T/T, 30% T/T in advance and balance 70% after testing confirm well before shipping.2. The delivery time?We deliver the machine within 30 days after receiving the deposit.3. What services do you provide?We provide our customers with 1 year warranty and technical support in the whole life time of the machine. DIXIN have a professional design team, can manufacture machine exactly according to customer's requirement.Recently, our roll forming machine have been exported to more than 40 countries and regions over the world.And maintained good cooperate relationship with customers. To ensure the production of top quality precision gears, our manufacturing techniques are upgrated constantly.
If you need our roll forming machine, pls don't hesitate to contact me. We can design according to your requirements. Looking forward to cooperate with you sincerely! | No. | Name | Unit | Qty |
| 1 | Manual decoiler | set | 1 |
| 2 | Main forming machine | set | 1 |
| 3 | PLC control system | set | 1 |
| 4 | Hydraulic pump station | set | 1 |
| 5 | Post cut | set | 1 |
| 6 | Electric motor | set | 1 |
| 7 | Output table | set | 1 |
