• Model NO.：312 ridge cdap roll forming machine
• Customized：Customized
• Usage：Roof
• Transmission Method：Hydraulic Pressure
• Color：Blue or as Request
• Machine Name：Dx 312 Color Steel Ridge Cap Roof Profile Roll for
• Processing Material：Galvanized Steel,Colored Steel Coil
• Material Thickness：0.3-0.8mm
• Main Motor Power：5.5 Kw
• Pump Power：4kw
• Shaft Diameter：75mm
• Forming Steps：13 Steps
• Roller Material：45# Forged Steel, with Hard Chrome Plating
• Main Frame：300h Steel
• Transport Package：Nude, Covered with Plastic Film, by Carton Box
• Specification：CE
• Trademark：DIXIN
• Origin：Botou, Hebei, China
• HS Code：84552210
• Production Capacity：20 Sets,Month

Basic Info.

Model NO. 312 ridge cdap roll forming machine Customized Customized Usage Roof Transmission Method Hydraulic Pressure Color Blue or as Request Machine Name Dx 312 Color Steel Ridge Cap Roof Profile Roll for Processing Material Galvanized Steel/Colored Steel Coil Material Thickness 0.3-0.8mm Main Motor Power 5.5 Kw Pump Power 4kw Shaft Diameter 75mm Forming Steps 13 Steps Roller Material 45# Forged Steel, with Hard Chrome Plating Main Frame 300h Steel Transport Package Nude, Covered with Plastic Film, by Carton Box Specification CE Trademark DIXIN Origin Botou, Hebei, China HS Code 84552210 Production Capacity 20 Sets/Month

Product Description

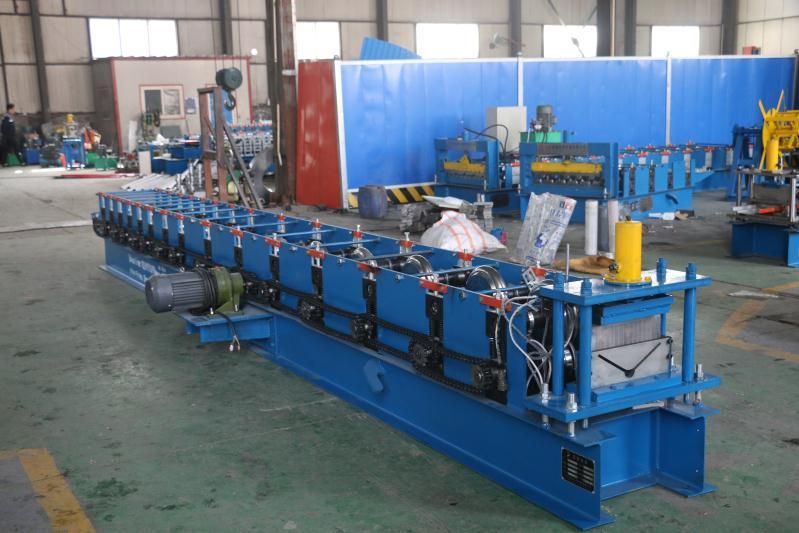

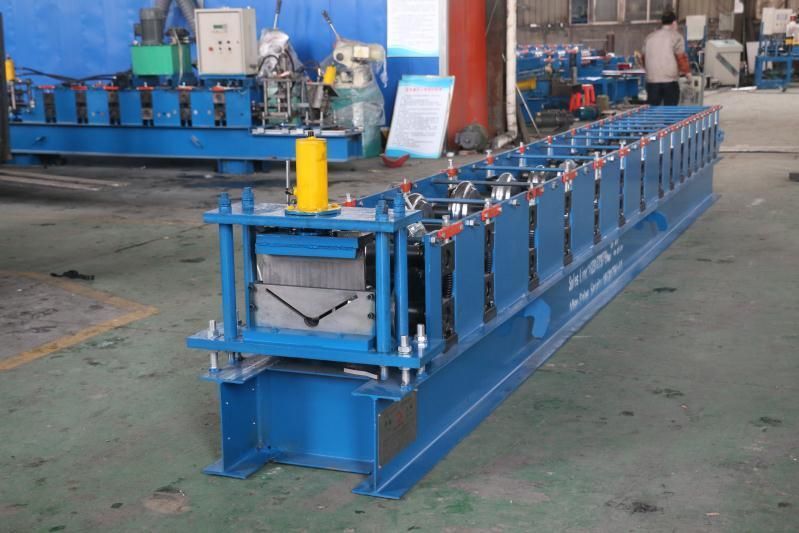

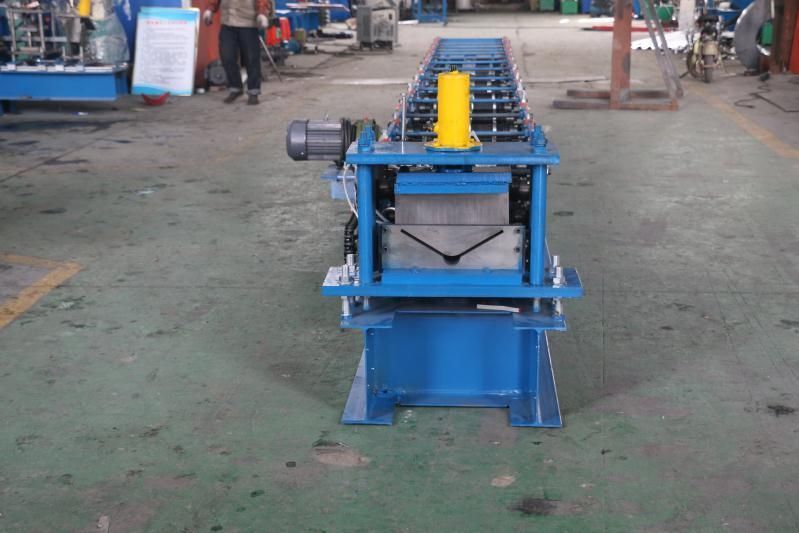

DX 312 Color Steel Ridge Cap Roof Profile Roll Forming Machine



We are manufacturer of roll forming machine for 8 years, and ever sold machines to many countries, such as: US, UK, Canada, Russia, Zambabwe, Italy, Azerbaijan. etc.

1. Technique parameters
(1) Processing material: Aluzinc/galvanized steel/colored steel coil
(2) Material thickness: 0.3-0.8mm
(3) Main motor power: 3 kw
(4) Pump power: 3 kw
(5) Shaft diameter: 65mm
(6) Forming steps: 13 steps
(7) Roller material: 45# forged steel, with hard chrome plating
(8) Main frame: steel frame
(9) Medium plate thickness: 12mm
(10) Control systerm: PLC computer control with inverter
(11) Power supply: 380V, 3 Phase, 50Hz
(12) 0veral sized: 4500mm*1000mm*1500mm
(13)Total weight: 1.5 tons

2. Specific description
(1) Manual decoiler
Un-powered, single head, max capacity: 5000kg

(2) hydraulic pump station
It is controlled by gear wheel oil pump, after filling the hydraulic oil into the hydraulic oil tank, the pump drive the cutting machine to begin the cutting job.

(3) Computer control cabinet
It adopts TaiDa PLC to control, the target sheet length is adjustable.
Computed mode has two modes: Automatic and manual.
Touch screen.

(4) Output table
It is used to load the finished sheet. This kind is convenient for shipment.


3. Payment term
TT, you should pay 30% as the deposit on the order day, then pay 70% before delivery when you inspect goods well in factory or by video

4. Warranty
24 months, and lifelong technical support service

5. Installation
If you need, we will send one technician to your factory to install & testing the machine. You should assist the technician to get Visa and pay for flight tickets and local accommodation, and pay 80 USD/day for salary.

6. Package
Standard export package, water-proof package, covered with plastic film

No.	Name	Unit	Qty
1	Manual decoiler	set	1
2	Main forming machine	set	1
3	PLC control system	set	1
4	Hydraulic pump station	set	1
5	Post cut	set	1
6	Electric motor	set	1
7	Output table	set	1

Welcome to our company: Cangzhou Dixin Roll Forming Machine Co.,Ltd.

ADD: Fuzhuang Development Zone, Botou City, Cangzhou, Hebei Province, China

Welcome to have a visit !

We can design according to our customers' requirements and we will do our best to meet your needs. For the above reasons, our products not only have a ready sale in domestic market but are also exported to Armenia, Russia, Kazakhstan, Iran and other countries and regions

Please contact me now !!!!
