• Model NO.：AAC block production line
• Customized：Customized
• Automatic Grade：Automatic
• Type：Autoclave Aerated Concrete
• Transport Package：Shipping
• Specification：customer require
• Trademark：HongFa
• Origin：China
• HS Code：8474802000
• Production Capacity：500000 PCS
• Package size per unit product：300.00cm * 30.00cm * 90.00cm
• Gross weight per unit product：1000.000kg

Basic Info.

Model NO. AAC block production line Customized Customized Automatic Grade Automatic Type Autoclave Aerated Concrete Transport Package Shipping Specification customer require Trademark HongFa Origin China HS Code 8474802000 Production Capacity 500000 PCS

Packaging & Delivery

Package size per unit product 300.00cm * 30.00cm * 90.00cm Gross weight per unit product 1000.000kg

Product Description

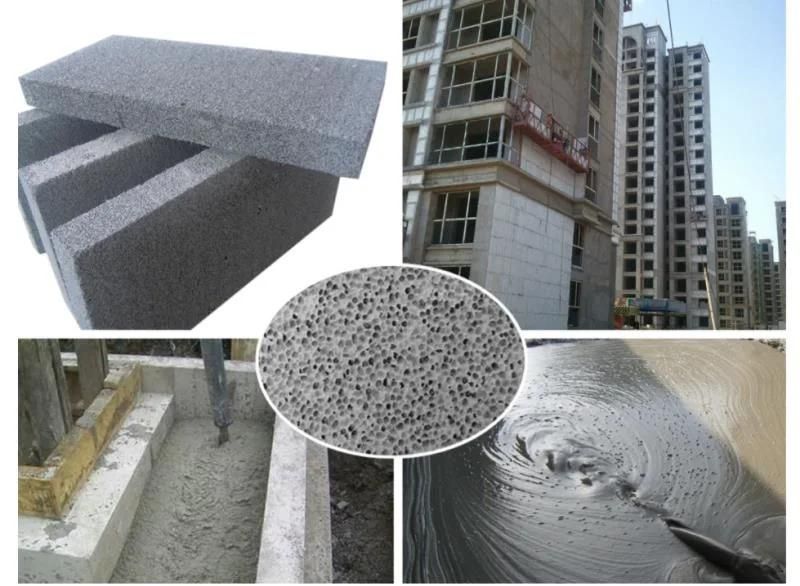

what's AAC/ALC ?

Autoclaved aerated concrete concrete block/autoclaved lightweight concrete panel is high intensive lightweight artificial stone through the autoclaved curing with the basic composition of calcareous and siliceous materials,porous structure formed by chemical gas generation method .Autoclaved aerated concrete block is,as it were,autoclaved cellular silicate concrete adopted a special method of chemical gas . Currently,the product of autoclaved aerated concrete block is one of the important raw materials of all kinds of high - rise building structure in domestic,and no other product is to replace and is in the ascendant in the future,with no risk ,matured technology,no investment risk,and accord with the state industrial policy .

The technology that Hongfa AAC block AAC production line mainly adopts the Germany Yitong process to realize the green body turning in the air ,the fixed - step cutting of the green body walking ,the hydraulic lifting and conveying ,the bottom turning in the air ,and the defoaming treatment of the steam drum.





Hongfa is a complete solution supplier and a complete set of equipment production line supplier

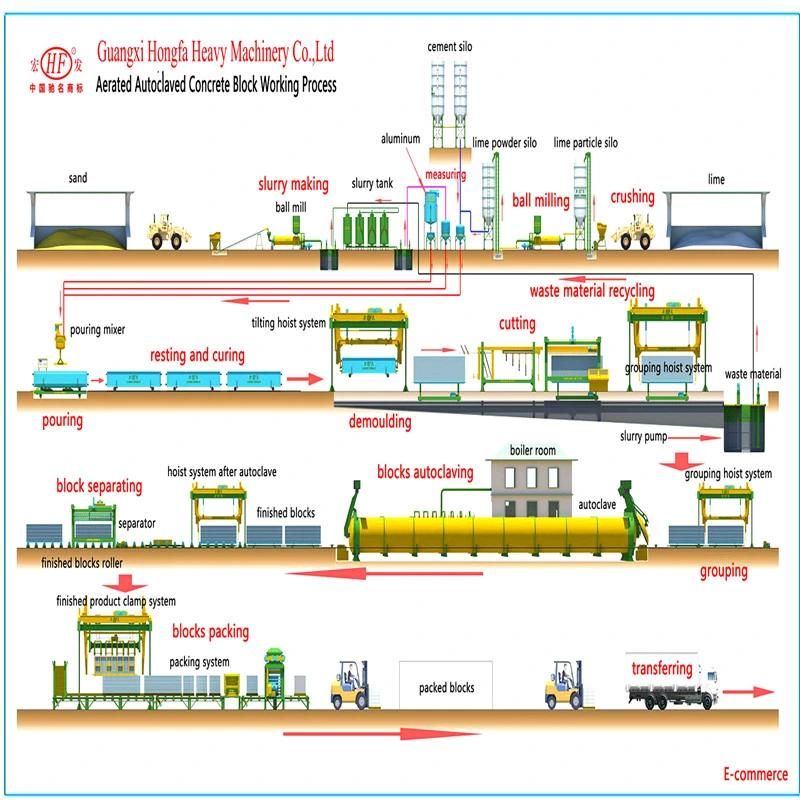

Hongfa Autoclaved Aerated Concrete(AAC) Block Production Line /gas concrete block machine layout

Hongfa AAC production line includes:raw material preparation → mixing & pouring → molding → curing & cutting → steam generating system → autoclaving → finished products upload & packing


I .Raw material preparation for AAC plant


1. Milling sand (fly ash no need mill) and to make slurry

2. Lime:crushing - milling (or to buy lime power directly)

3. Gypsum : to mill with sand or input with fly ash then to make slurry directly

II .Dry and wet ball mill for lime and sand

III . Slurry  batching
The prepared and stored raw materials to be used are metered ,adjusted for temperature and concentration,and a small amount of dosing materials are metered on-site,and then fed to the stirring equipment in turn according to the process requirements .

IIII. Pouring
In this process ,the materials that are put into the mixer after the previous batching prosess are measured and adjusted if necessary,and the materials that meet the time,temperature,and consistency requirements of the process are made,then pouring into the mold.the pouring process is an important process that can form a good pore structure,and it constitutes the core link of aerated production as the batching process





The advantages of Hongfa AAC block production line

1.It can realize the mixed grinding to prepare the cementitious material and effectively improve the pouring stability;the flow - tube type pouring stirring can shorten the stirring time and greatly improve the uniformity of stirring.

2.Raw material processing can realize the hydrathermal ball milling process and improve the stability of fly ash and mortar.

3.Staggered batching process.the batching building is divided into two and staggered .It simpliifies the layout of equipment and building structure,and meets the requirements of staff space and equipment layout .

4.Integrated layout technology,which arranges the batching,pouring,pre-cultivation,cutting ,bottom removal,marshalling and other processes in the same workshop.Uses hydraulic lifting and conveying equipment to sparate the walking guide from the main body of the workshop and reduce the height of the workshop .Layout ,avoiding dead corners in the building,shortening the return path of waste slurry,reducing the moving space of operators and improving work efficiency.

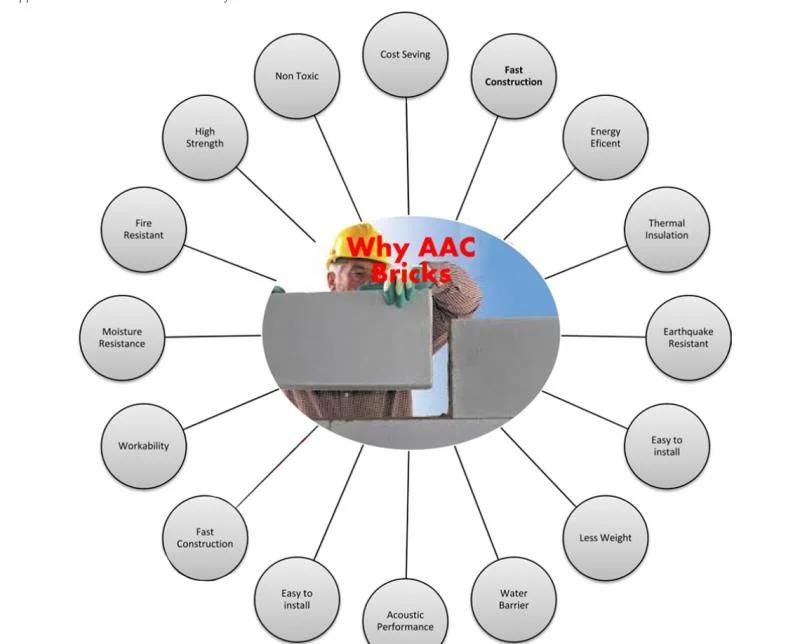

Why AAC brick?
Compressive strength of autoclaved aerated concrete block is different due to its bulk weight and production process. Compressive strength is also generally higher when bulk weight is larger and products of the same bulk weight has also different strength due to the difference of the production process.Provisions in China standard 2-3 strength grades in a volume-weight grade, to facilitate the selection of design, application of the unit or more flexibility.

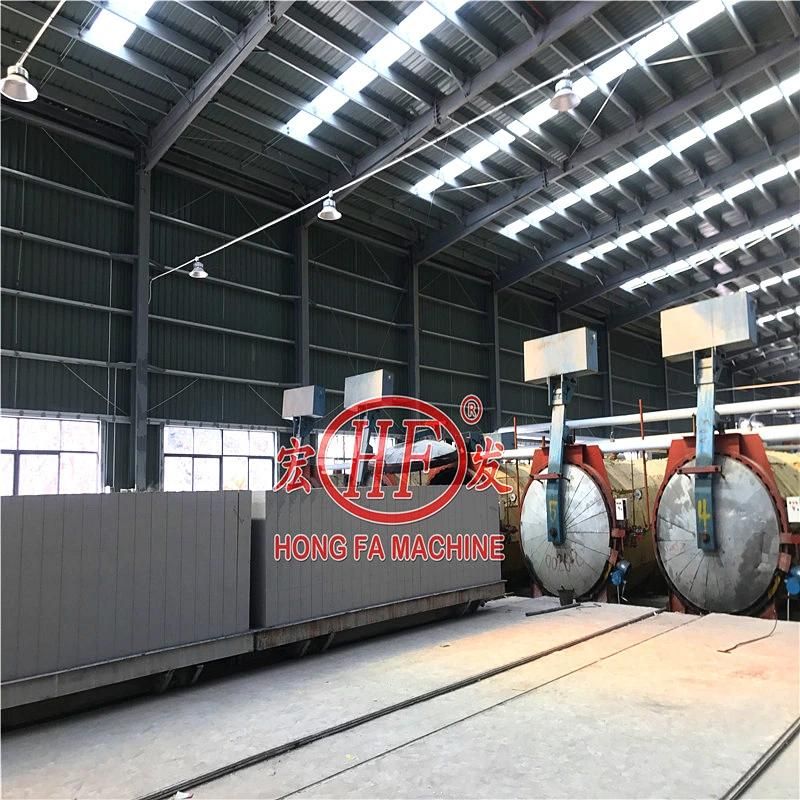

Finished AAC blocks






Hongfa Machinery Service to all over the world  , the strength , the industry model , meet yours demand
