• Model NO.：Concrete Culvert Pipe Moulding Machine for sale
• Application：Industry, Decoration
• Type：Pipe Molding Machine
• Transport Package：Container
• Specification：customer require
• Trademark：HongFa
• Origin：China
• HS Code：8474802000
• Production Capacity：50000 PCS

Basic Info.

Model NO. Concrete Culvert Pipe Moulding Machine for sale Application Industry, Decoration Type Pipe Molding Machine Transport Package Container Specification customer require Trademark HongFa Origin China HS Code 8474802000 Production Capacity 50000 PCS

Product Description

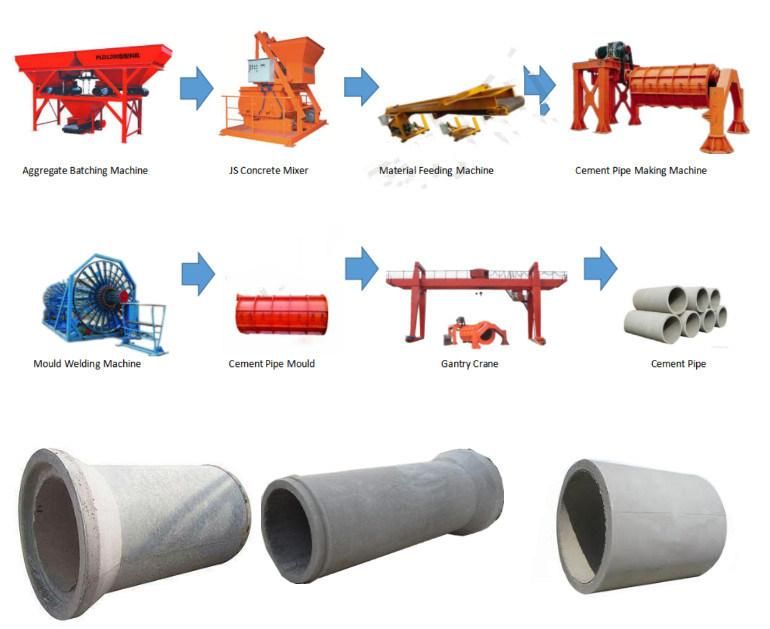

Machines and Equipment for a Concrete Pipe Production Line

1, Concrete Pipe Forming Machine:

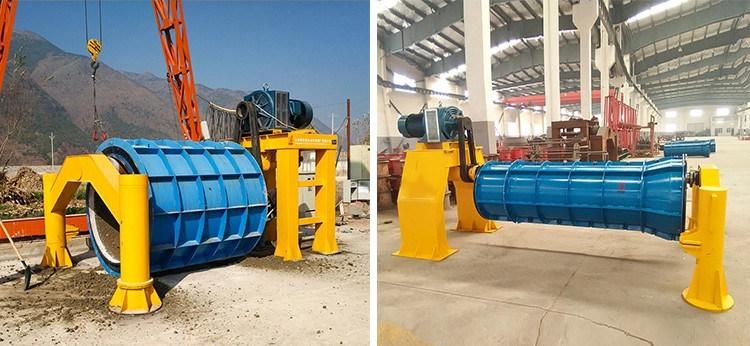

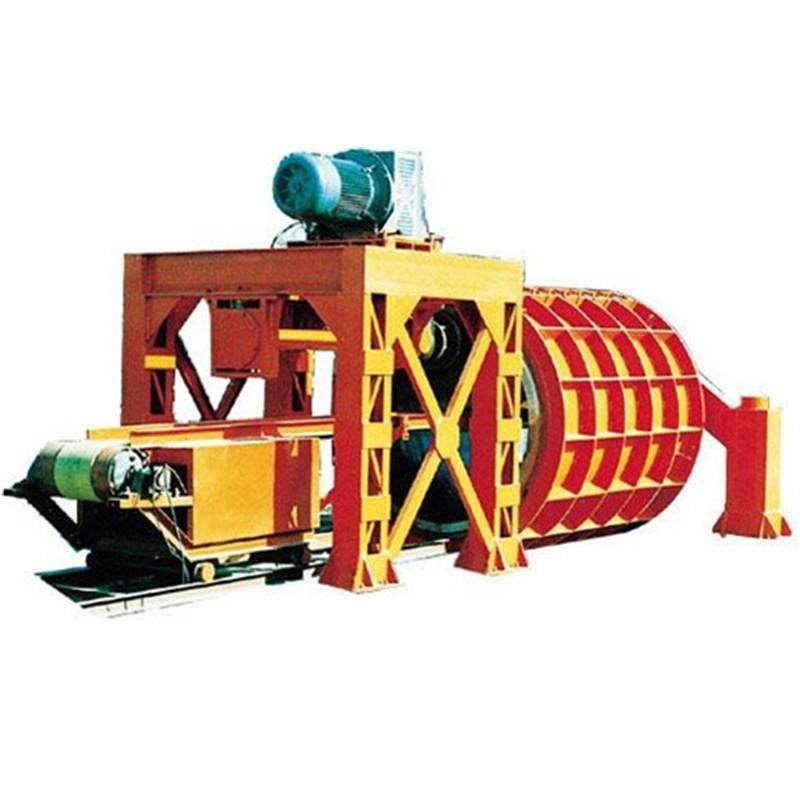

Horizontal Type:  (diameter: 300 to 2400mm; length:1000 to 5000mm)
Suspension roller type roller suspension concrete pipe making machine is a kind of perfect machine and equipment to produce reinforced concrete pipes and Pre-stressed concrete pipe. This machine is capable to make pipes with diameter from 300-2000mm and with length from2-4meters. We can design many kinds of the pipe joint, including flush joint, socket & spigot joint And all the concrete pipes are widely used in administrative drainage, agricultural field irrigation, road culvert and deep water well.

By manual feeding concrete or conveying machine, the concrete mixture into the mould will be adhere to the inner wall of mould, and become solid, intensity at major function of the roller compressing force and Centrifugal force, and form the standard quality pipe.

Concrete Pipe Making Machine Features:

1: Wide Production Range: Inner Diameter form 200-2500mm, length 1-4meter;

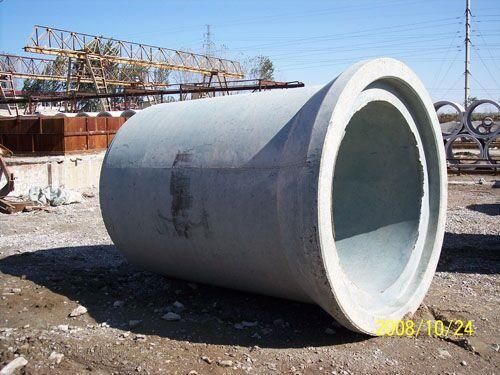

2: Different Pipe end joint: Flat end; Male& Female end; Spigot& Socket end;

3: High efficiency, short production time, every pipe needs several minutes;

 With hard dry casting concrete, high intensity, and better strength;

4: No polluted slurry discharge, environment friendly, also lower noising;

5: Our CO2 Arc Welding, and Plasma Cutting machine promise higher quality.


Character

1. Short production Cycle: because of the good effect of the roller to compact the concrete, every pipe just need 3-5 minutes with high speed roller rotation.

2 .This pipe machine uses the dry cast material, there will no waste cement mud, then it won't pollute the environment.

3. During the production, the noise is low, it is about 80-90 DB.

4. The concrete pipes are with high pressure load and with high production efficiency.

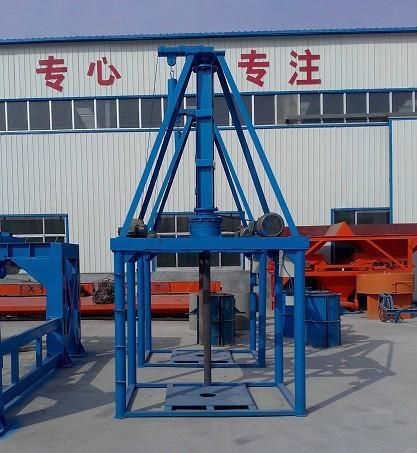

Vertical Type:  (diameter: 150/200 to 1000mm; length: 500 to 1000 mm)
The working principle is: the extrusion method is used to form the concrete in the mold tube.  Mainly used for urban community development, township and rural construction drainage and small bridge use, its shortcomings are low bearing capacity and low strength.
Advantages: It can be demolded immediately, and only one set of mold is needed for each size. Less investment.
Disadvantages: Can only be used for tubes with a diameter of 200-1000mm and a length of 1000mm. No reinforcement can be added.

Total power	Spindle speed	Reducer speed ratio	Molding cycle	capacity	Dimensions
11.75kw	45r/min	1:5.8	5-10min	30-100pcs/8h	1840×1700×4000mm

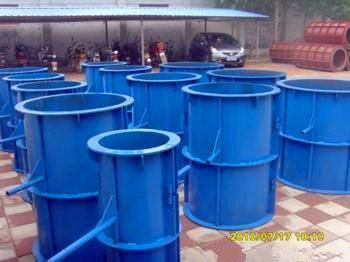

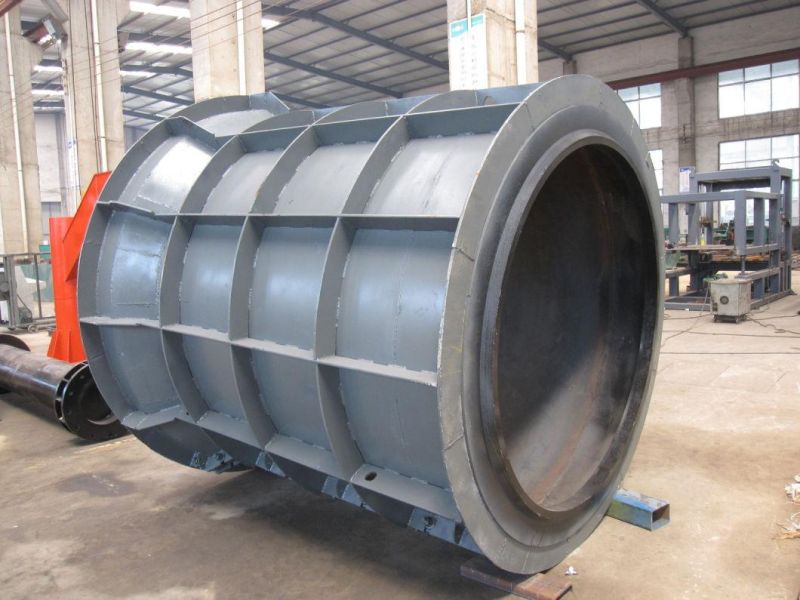

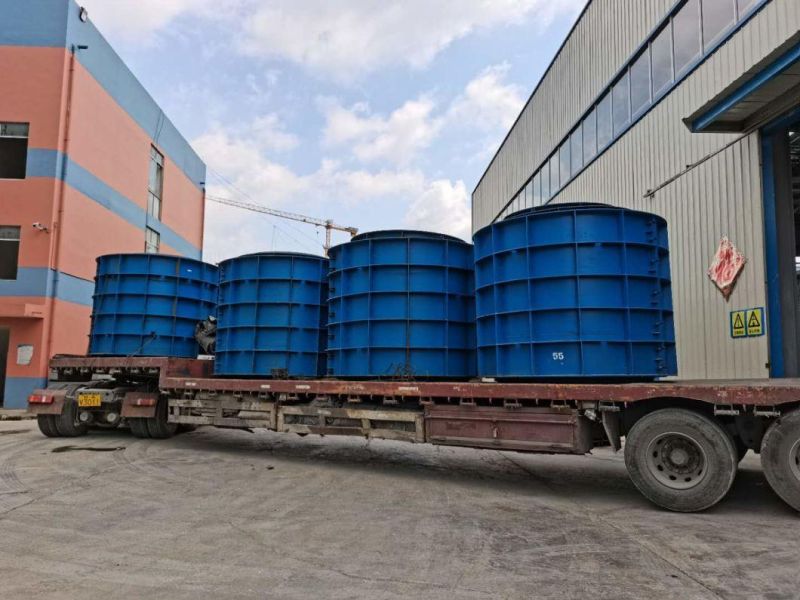

2, Mouds

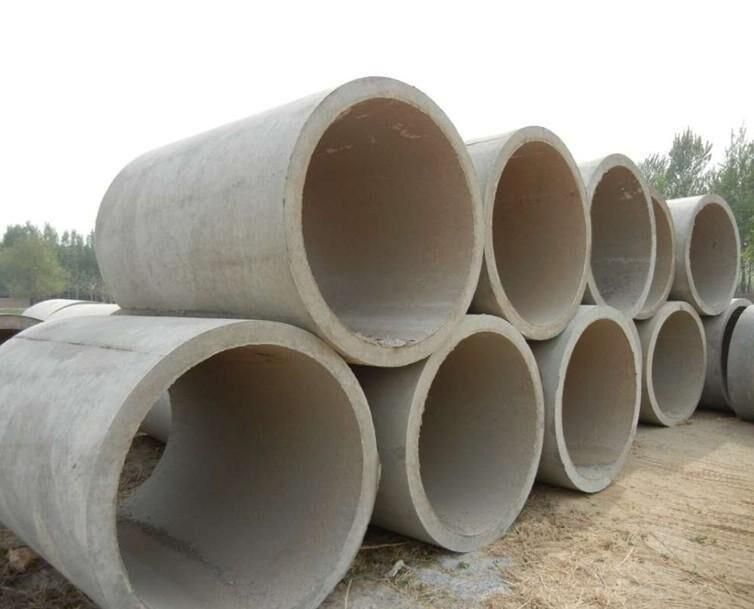

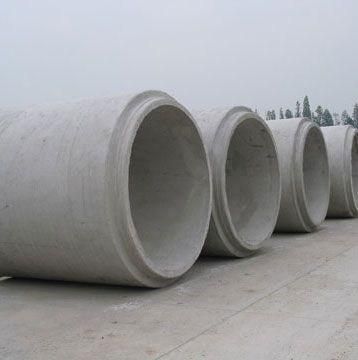

Three types of  pipes that Common Used:

The pipe thickness in Chinese National Standard is:
Diameter :300,400,600,800,1000,1200,1500,2000mm
Corresponding thickness:30,40,60,80,100,120,150,200mm
Please confirm the thickness otherwise will be subject to the Chinese National Standard.
