• Model NO.：HKY Glazed
• Tolerance：0.5mm
• Brick Raw Material：Steel Profile
• Processing：Roll Forming
• Type：Step Tile Forming Machine
• Main Motor Power：5.5kw
• Hydraulic Station Power：4kw
• Hydraulic Oil Pump：CB-E310
• Transport Package：Standard Export Packaging
• Specification：8.5m*1.5m*1.4m
• Trademark：HKY
• Origin：Hebei Botou
• HS Code：845522
• Production Capacity：500 Sets,Year

Basic Info.

Model NO. HKY Glazed Tolerance 0.5mm Brick Raw Material Steel Profile Processing Roll Forming Type Step Tile Forming Machine Main Motor Power 5.5kw Hydraulic Station Power 4kw Hydraulic Oil Pump CB-E310 Transport Package Standard Export Packaging Specification 8.5m*1.5m*1.4m Trademark HKY Origin Hebei Botou HS Code 845522 Production Capacity 500 Sets/Year

Product Description

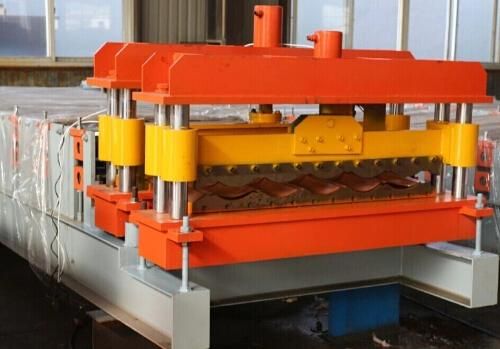

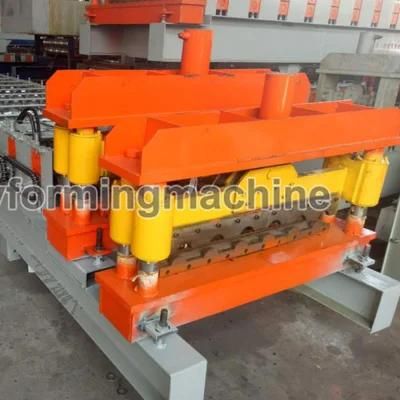

Glazed Tile Forming Machine Pictures:




1. Working Flow:

Decoiling--feeding---forming---cutting---pressing---finished product

2. Parts of Equipment:

Decoiler ,roll forming machine, hydraulic cutting device, pressing device,electric system(PLC control system),hydraulic system, stacker.

3. Techincal description:

1). Main Motor Power: 5.5KW
2). Hydraulic Station Power: 4KW
3). Hydraulic Oil Pump: CB-E310
4). Sprocket: P-25.4
5). Roller Station: 14
6). Yield Strength: 32MPa
7). Diameter of Principal Axis: 80mm
8). Material of Roller: 45#steel hard chrome plating
9). Material of Blade: Cr12
10). Processing Speed: 4m/min
11). Thickness: 0.3-1mm
12). Installation Dimension (L*W*H): 8.5m*1.5m*1.4m
13). Total Weight: 5.7T
14). Equipment Parts: forming machine, press mould, hydraulic cutter, hydraulic  station, hydraulic motor, PLC , equipment base and linear transducer .


4.Our Certificate

CE  SGS

5.Terms

Payment type: 30% T/T prepaid and balance should be paid before loading
Delivery time: 30days after receving advance payment.
Guarantee period: 12months

6.Installation and training:

a.If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.

b.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things

7. After Service
a.One year guarantee for whole machine.
b.24 hours technica support by email or calling.
c. If there is any problem found of the machine, we will repair it for free in one    year.

8.Primary Competitive Advantages:

· Guarantee/Warranty
· Price
· Product Performance
· Prompt Delivery
· Quality Approvals
· Reputation
· Service
· Small Orders Accepted

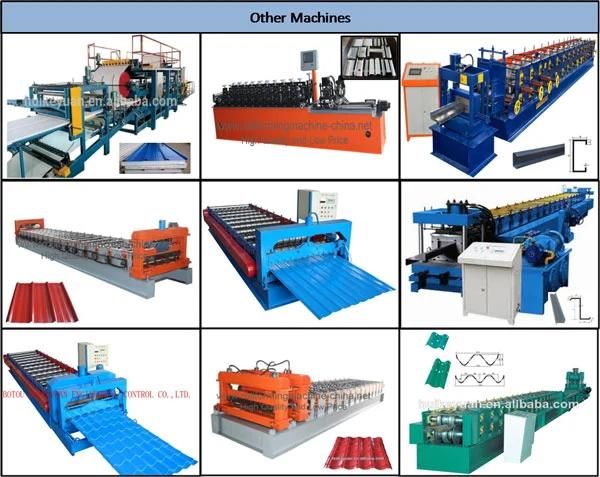

 9.Other Machines We Can Produce

  Single layer roll forming machine,
  Double layer roll forming machine,
  Purlin roll forming machine,
  Glazed tile roll forming machine,
  Highway guardrail roll forming machine,
  Sandwich panel roll forming machine,
  Door frame roll forming machine,
  Ridge cap roll forming machine,
  Floor deck roll forming machine,
  Stud and track roll forming machine and so on.


10.OEM Services
We can design and manufacture the machine according to the customers' requirement. You can send me the profile drawing and we will design the machine to you.
We provide you the machines not only with best quality
but also best service for you.
By the way,we warmly weclome you to visit our facory!



11. Contatct

Niki Wang (Sales)
BOTOU HUIKEYUAN ENGINEERING CONTROL CO., LTD
Add: Fuzhuang Development Zone Botou City, Hebei, China
Web: http: //bthuikeyuan.en.made-in-china.com
Tel: +86 317 3087243
Fax: +86 317 3087243
Cel: +86 15503170268


1. How many years since you have been in this field?



    Oour company has been producing roll forming machines for almost 20years.

    We have rich experience for manufacturing and designing the machine.



2. Where is the nearest airport?



    Tianjin or Beijing, both are ok. Tianjin is nearest.

    From Tianjin to Cangzhou, the high speed train, it takes only 30 minutes.

    From Beijing to Cangzhou, it takes only 51 minutes.

    We will go to Cangzhuo railway station to pick you up, if you come to visit

    our factory.



3. How about your quality and price?



    Our machine uses the advanced technique, we are leading in this field.

    Most of other roll forming machine factories, their boss are students of

    our general manager. We always leads first in this field.

    The quality is among the highest.

     But the price is not high, it is low. Because our rich experience help us

     to do the highest  quality machine but with lowest cost. Then our  price

     is not high.





We can design the machine totally according to your requirement.!

Name	HKY Roll Forming Machine
Original Place	Botou, Hebei, China
Price	Low price, we can negotaite it further
Quality	High quality, top three in Hebei Area
Service	Good after service
Company Name	Huikeyuan Engineering Control Co.,Ltd
History	since 2002 , producing roll forming machine
Main Machine Kinds	Single layer, Double layer, Glazed Tile, C Z purlin, Sandwich Panel, Highway Guardrail,
	Shutter Door, Stud and Track, Door Frame, Floor Deck, Uncoiler, Bending Machine,
	Shearing Machine, Punching Machine and so on.
