• Model NO.：CLJZD-CNC-6000
• Cutting Angle：45, 90 and 135 Degree
• Cutting Height：120mm
• Cutting Length：400-5800mm
• Weight：4000kg
• Rotary Speed：2800r,Min
• Machine Dimension：16000*2600*2000mm
• Cutting Motor Power：3*2.2kw
• Transport Package：Standard
• Specification：16000*2600*2000mm
• Trademark：Truetec
• Origin：China
• Production Capacity：15sets,Month

Basic Info.

Model NO. CLJZD-CNC-6000 Cutting Angle 45, 90 and 135 Degree Cutting Height 120mm Cutting Length 400-5800mm Weight 4000kg Rotary Speed 2800r/Min Machine Dimension 16000*2600*2000mm Cutting Motor Power 3*2.2kw Transport Package Standard Specification 16000*2600*2000mm Trademark Truetec Origin China Production Capacity 15sets/Month

Product Description

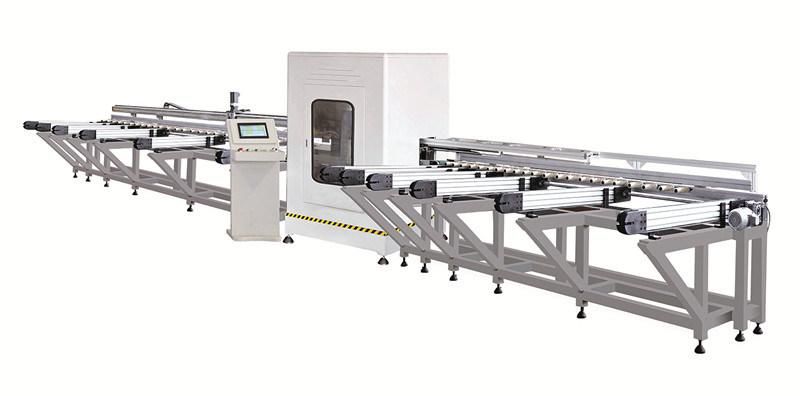

 Full Automatic CNC Aluminum Profile Cutting Center


Machine feature:
1.Worktable auto feeding and clamping continuous.
2.High precision linear guide-way.
3.Mechanical arm,high precision gear and rack make feeding accuracy.
4.Blade connected directly with imported motor.To cut smoothly and steadly and high precision.
5.Cutting motion is servo controlled.Cutting efficiency and quality are much better.
6.SIEMENS control system makes machine working steady and reliable.
7.±45° or 90° cutting is finished continuous and effciency.
8.Totally closed design,operator protect.
9.Option:bar code printer for E-work.

Parameter:

Model	CLJZD-CNC-6000
Power Supply	220V/380V415V 50HZ
Cutting motor power	3*2.2KW
Feeding motor power	0.75Kw
Discharge motor power	0.75Kw
Air Pressure	0.5~0.8MPa
Saw Blade Specification	Φ500*Φ30*4.4*120T
Cutting Length	30~120mm
Cutting Width	30*120mm
Raw materials	400~5800mm
Cutting angle deviation	±5'
Length deviation	±0.2mm
Repeat locating length deviation	±0.05mm
Overall Dimension	16000*2600*2000mm
Weight	About 4000Kg

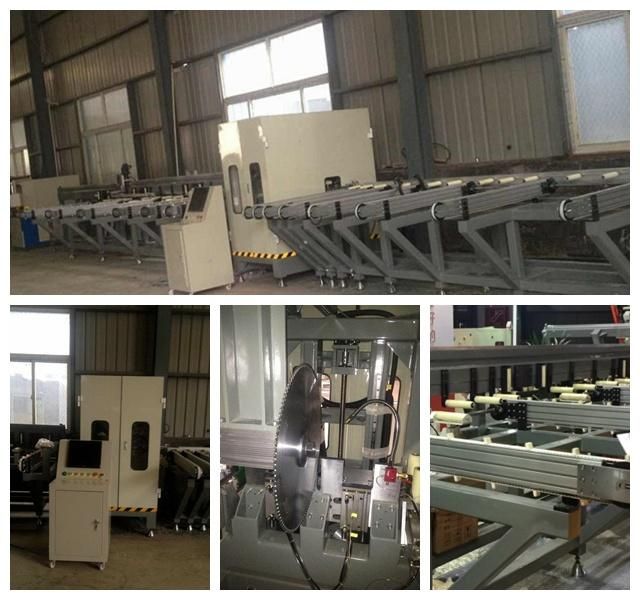

Machine details:



Our Service

Pre-sale service

Free contact for the most suitable machine
Free professional design for each customer especially.

After sale service

24 hours technical support by phone, email or skype
1years warranty period
Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.

Payment

L/C, 30% deposit by T/T,70% spare payment L/C.
T/T, 30% deposit by T/T,70% spare payment before shipment.
Western Union or Paypal.
Alibaba trade assurance , which will protect your money in safe and ensure our quality.
FAQ:
1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.

2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can dispatch our engineers to repair your machines

3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
All of our engineers have passport.

4. If I make Aluminum window and door, how many basic machines do i need?
1).double head cutting saw
2).Lock hole copy milling machine
3).End milling machine
4).Automatic Corner connector automatic cutting saw
5).Single head Corner combining machine
