CNC Automatic Aluminum Window Door Frame Bending Machine

JINAN YUEFENG MACHINERY CO., LTD.
  • Condition:New
  • Certification:ISO, CE
  • Automatic Grade:Automatic
  • CNC or Not:CNC
  • Voltage:380V
  • Model:Lyh-CNC-200

Base Info

  • Model NO.:Lyh-CNC-200
  • Input Voltage:380 50Hz
  • Input Power:3.0kw
  • Air Pressure:0.4~0.6MPa
  • Air Consumption:120L,Min
  • Min. Bending Radius:230mm
  • Roller Diameter:60mm
  • Roller Rotation Speed:1-8r,Min
  • Max. Width:200mm
  • Hydraulic Pressure:20t 200MPa
  • Overall Dimension:1900*1100*1300mm
  • Transport Package:Plastic Film or Depends on Customers
  • Specification:1900*1100*1300mm
  • Trademark:Yuefeng
  • Origin:Jinan Shandong, China
  • HS Code:8477800000
  • Production Capacity:20 Sets,Month

Description

Basic Info.

Model NO. Lyh-CNC-200 Input Voltage 380 50Hz Input Power 3.0kw Air Pressure 0.4~0.6MPa Air Consumption 120L/Min Min. Bending Radius 230mm Roller Diameter 60mm Roller Rotation Speed 1-8r/Min Max. Width 200mm Hydraulic Pressure 20t 200MPa Overall Dimension 1900*1100*1300mm Transport Package Plastic Film or Depends on Customers Specification 1900*1100*1300mm Trademark Yuefeng Origin Jinan Shandong, China HS Code 8477800000 Production Capacity 20 Sets/Month

Product Description

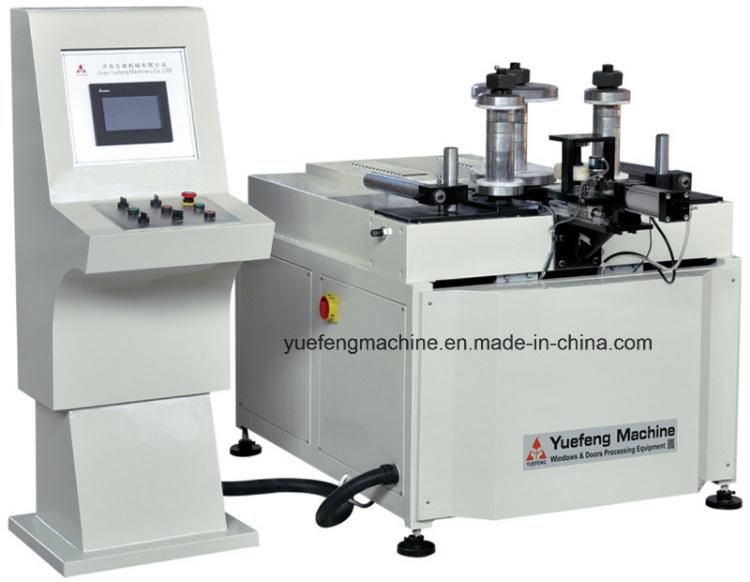

CNC Automatic Aluminum Window Door Frame Bending Machine
LYH-CNC-200   CNC Rolling Machine


CNC Automatic Aluminum Window Door Frame Bending Machine
Product Description

> The machine applies to bending several kinds of metal profiles to appears arc shape, such as iron, copper and aluminium.

> Adopts special arc-processing software, can detect the data of rebound, and then eliminate the rebound.

> It can make shapes of ellipse, circle and "C", "U" shapes etc.

> Adopts computer control system, the location precision is less than 0.01mm.P


Technical Parameter:

Input voltage380 50Hz
Input power3.0Kw
Air pressure0.4~0.6MPa
Air consumption120L/min
Min. bending radius230mm
Roller diameter60mm
Roller rotation speed1-8r/min
Max. width200mm
Hydraulic pressure20T(200MPa)
Overall dimension1900×1100×1300mm
