• Model NO.：NX80-300

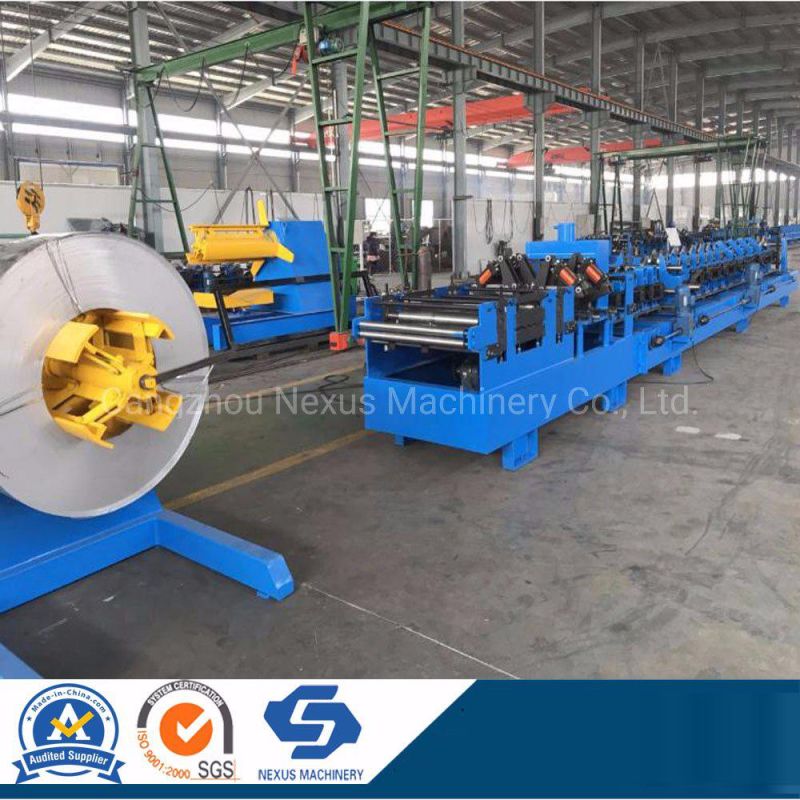

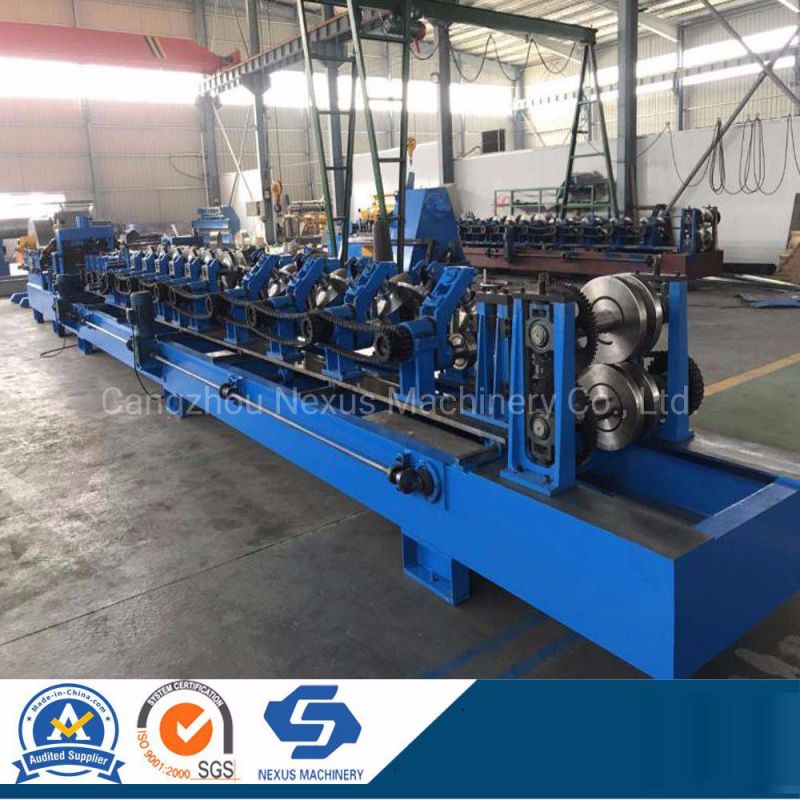

• Product Name：Galvanized Steel C Z U Channel Purlin Machine
• Coil Material Thickness：1.5--3mm
• Processing Material：Galvanized Steel
• Roller Material：Cr12MOV
• Roller Station：12-18 Stations
• Driven：Chain Transmission
• Forming Speed：10-15m,Min
• Punching Type：Hydraulic Punching
• Cutting Type：Hydraulic Post-Cutting
• Operation Type：Touching Screen
• Transport Package：Plastic Film
• Specification：80-300
• Trademark：Nexus Machinery
• Origin：Cangzhou
• HS Code：8455221000
• Production Capacity：10

Article No.

Item Name

Specification

1

Width of feeding material

According the profile

2

Thickness of feeding material

Max 3.0mm

3

Purlin Width

100-300mm

4

Purlin Height

40-80mm

5

Roller station

14 stations

6

Roller material

Gcr15, quench treatment hardness 55-58

7

Forming speed

10-15 m/min

8

Main motor

15 kw

9

Driving way

Chain transmission

10

Hydraulic power

5.5kw

11

Punching

Hydraulic pre-punching

12

Punching mould material

Cr12

13

Cutting system

Hydraulic pre-cutting

14

Blade material

Cr12

15

Tolerance

+-1.5mm

16

Voltage

380V 50Hz 3phases

17

Machine height

13 tons

18

Machine length

10m

19

Control

Panasonic PLC

20

Decoiler

5 tons

ABOUT US:
CANGZHOU NEXUS MACHINERY CO., LTD Company is in producing sandwich panel line all kinds of roll forming machines, such as glazed tile roll forming machine, roof/wall panel roll forming machine, double layer roll forming machine, Full-Automatic C and Z Purlin Roll Forming Machine, floor deck roll forming machine, highway guardrail machine, dust shield machine, ridge cap machine, roll shutter door machine, uncoiling & leveling & slitting & recoiling line, all kinds of decoilers and stackers, and many other related equipments like shear, punch, slitter, leveler, crimping curving, bending and so on,different sizes roofing sheet,PPGI/GI ,Alu-Zinc steel coils ,Galvanized steel coils ,Galvanized steel sheet ,Galvalume steel coils/sheet ,cold/hot rolled sheet/cols , professional service and favorable price , satisfied with the quality ,welcome to every customers come to visit and buy ! ! !We will 24 hourse services for you ,please don't hesitate to contact us when you need.



FAQ:
1. How long the machine could be made?- Normally speaking, light gauge steel frame machine could
be made without 45 working days. If you need machines in a hurry, we can make it for you
less than a month.
2. How to visit your company?
-a.Fly to Beijing airport:   By high speed train From Beijing Nan to Cangzhou Xi (1 hour),
then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5
hours), then we can
pick up you.
3. Do you have after sales support?
-Yes, we are happy to give advice and we also have skilled technicians available across the
world.We need your machines running in order to keep your business running.
