• Model NO.：NX80-300
• Automatic Grade：Automatic
• Product Name：Light Gauge Steel Framing Machine for House Frame
• Coil Material Thickness：0.3-0.8mm
• Processing Material：Galvanized Steel
• Roller Material：Cr12MOV
• Diameter of Shaft：56mm
• Forming Speed：15-25m,Min
• Package：One Full Set of 20 Feet Container
• Transport Package：Control Box and Easy Damaged Parts: Protective PA
• Specification：60-27-28
• Trademark：Nexus Machinery
• Origin：Cangzhou
• HS Code：8455221000
• Production Capacity：10 Sets,Month

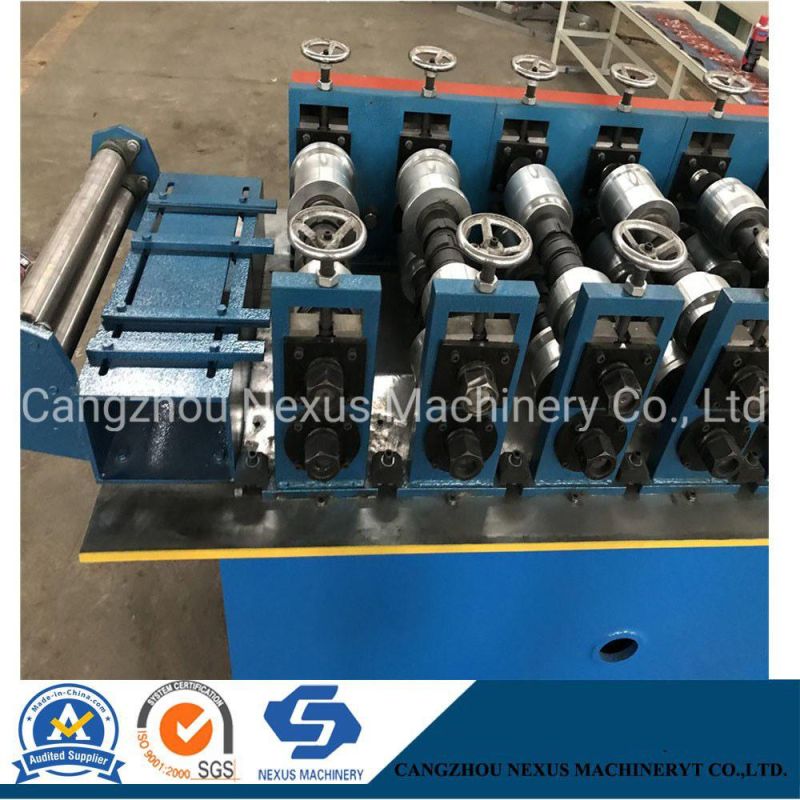

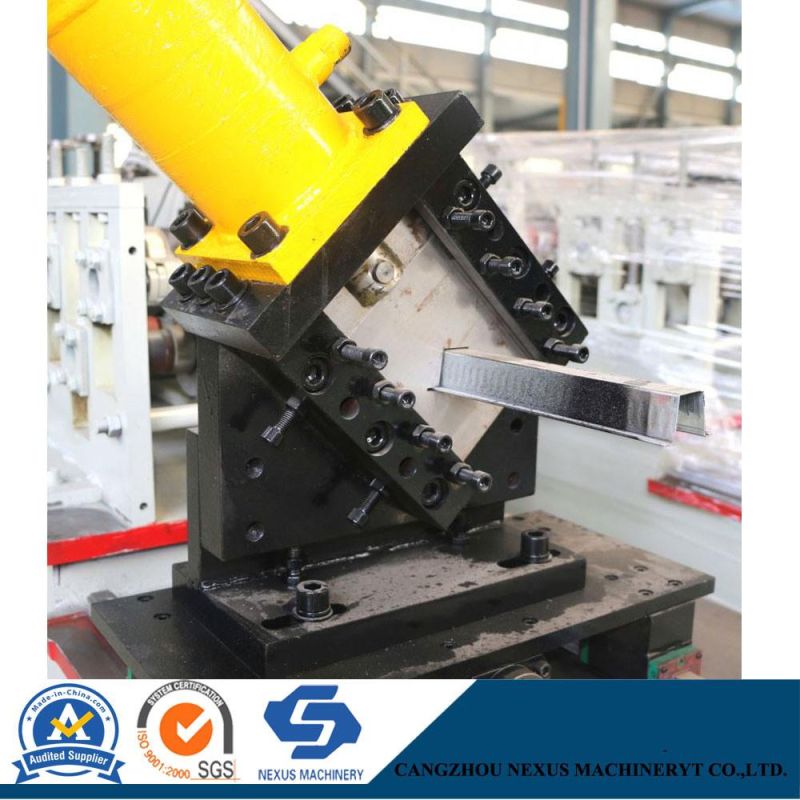

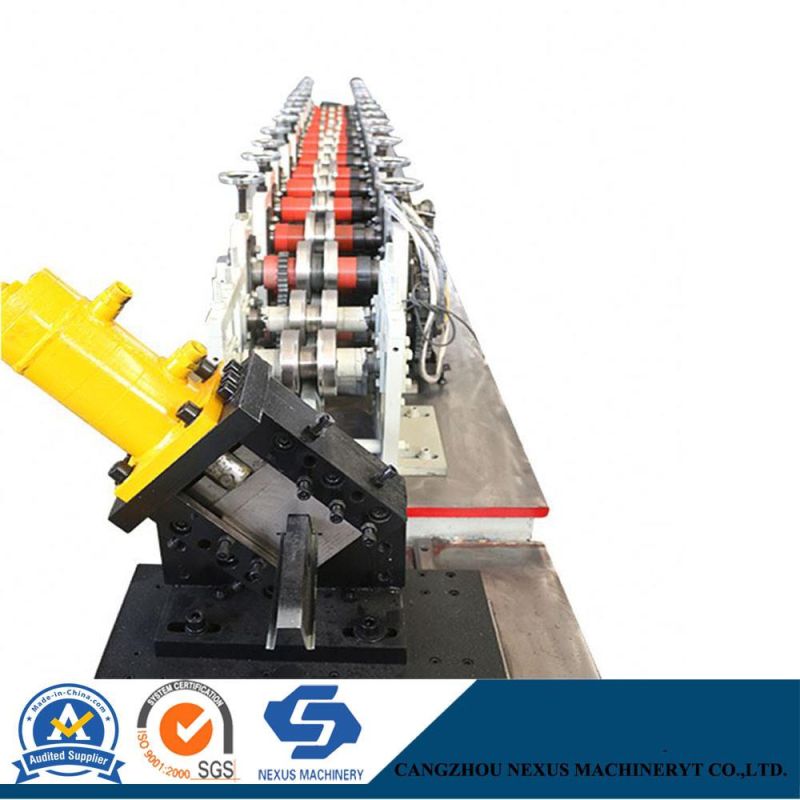

ThicknessMax 0.8mm  Installation Size6.5M*0.9M*1.4MUnder Framesquare Pipe Welded,Working Table25mm Steel Plate with precision processing Feeding Systemgalvanized roller flatting with adjustment Gateway Thickness35-40mmGateway Height383mmDouble Bearing Inside with inject oil, Gateway fixed on the platform Roller Station14 StepsRoller Shaft60mm with key-wayDriving Motor5.5KW  BrandLichao  Quantity1 UnitCutting System Structure with 23mm steel plateCutting MoldCr12MovHydraulic Pump Station5.5KW  Transmission Chain1.2 Inch.   Production Speed0-15m/min

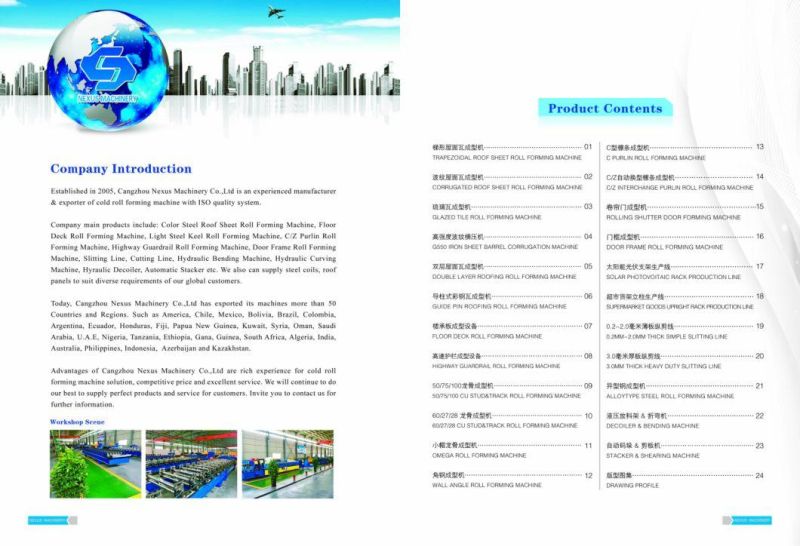

ABOUT US:




More Products for Your Choose:




FAQ:
1. How long the machine could be made?- Normally speaking, light gauge steel frame machine could
be made within 45 working days. If you need machines in a hurry, we can make it for you
less than a month.
2. How to visit your company?
-a.Fly to Beijing airport:   By high speed train From Beijing Nan to Cangzhou Xi (1 hour),
then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5
hours), then we can
pick up you.
3. Do you have after sales support?
-Yes, we are happy to give advice and we also have skilled technicians available across the
world.We need your machines running in order to keep your business running.
