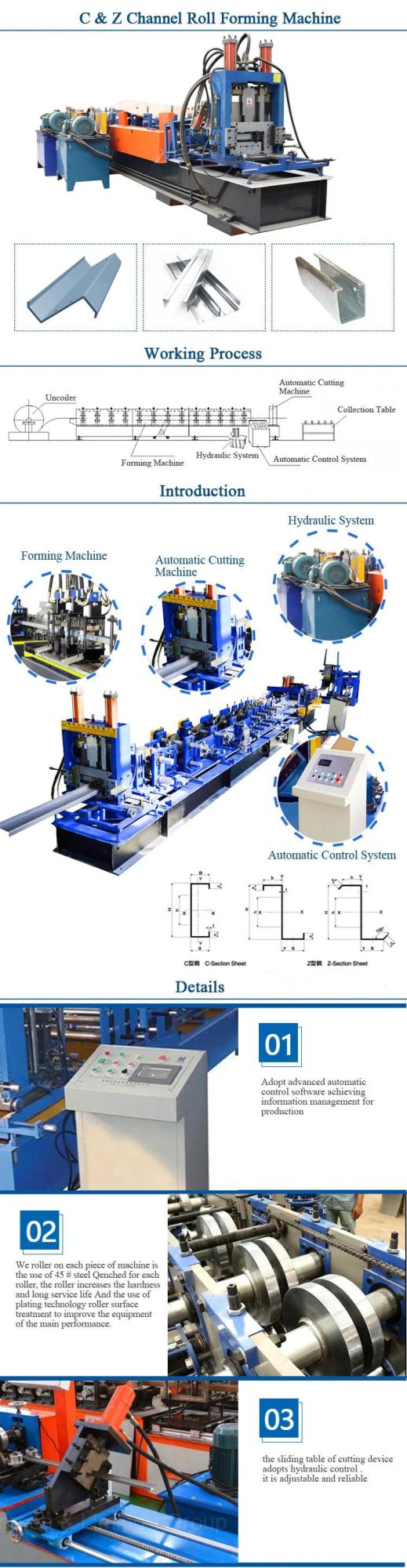

Building Frame Automatic Steel Structure C Z Purlin Forming Machine
Cangzhou Nexus Machinery Co., Ltd.- After-sales Service：Provide Overseas Service
- Warranty：1 Year
- Certification：CE, ISO9001
- Customized：Customized
- Condition：New
- Control Type：Electric
Base Info
- Model NO.：NM7248
- Automatic Grade：Automatic
- Product Name：Building Frame Automatic Steel Structure Machine
- Coil Material Thickness：1--3mm
- Processing Material：Galvanized Steel
- Roller Material：Cr12MOV
- Main Frame：400mm H-Beam
- Total Power：22 Kw
- Forming Speed：12-24m,Min
- Roll Station：18 Stands
- Roller Diameter：80mm
- Effective Width：80-300mm
- Transport Package：Plastic Film
- Specification：80-300
- Trademark：Nexus Machinery
- Origin：Cangzhou
- Production Capacity：10
Description
Roll Forming Machine Specs
Guiding Rollers
Two units 45# forging steel with treatment
Leveling Rollers
Up 2 down 3, 45# forging steel with treatment
Roller station
13 forming units
Under Frame
350H-beam, Welded structure
Sidewall Thickness
18mm 45# Steel Plate
Sidewall Connect Bar
25mm
Shaft diameter(Solid)
70mm-0.01~-0.03(with key-way)
Shaft material(Hard)
High grade 45# steel,heated and quenched cylindrical grinding,
Roller material(Hard)
High grade GCr15 bearing steel,heated and quenched
Roller Surface
hard chrome coated 0.05mm
Bearing Type
Standard 6210
Screw&Bolt
Self-made
Transmission Chain
1.5 inch(Jindun,Hangzhou)
Motor Power
11 KW(Lichao,Shanghai)
Forming Speed
12-15m/min
Hydraulic Punching Device
Hole size
15mm
Hydraulic Cutting Device Specs
Main Structure
Welded Structural Steel
Steel Plate
18mm A3 Steel
Cutting type
Hydraulic Operation,Stop to post and post to cut
Cylinder Quantity
One unit
Pump power
5.5KW,25 Mpa Hydraulic Pressure
Cutting die
Cr12Mov, Quenched processed
Automatic Computer Control System
Length tolerance
10m+/-1.5mm
PLC System
Delta PLC Program
Length Controller
Omron,Japan
Operation
Touch-Win Screen,Jiangsu
Inverter
Delta,Taiwan
Voltage Standard
220V/3Phases/60Hz
3 Ton Manual Uncoiler Link-connect expanding system
Coil Inner-diameter
480-510mm
Coil Outer-diameter
Max. 1000mm
Load Capacity
Max. 3 Tons
Coil Width
Max. 650mm
Manual Support Table
Length
3m

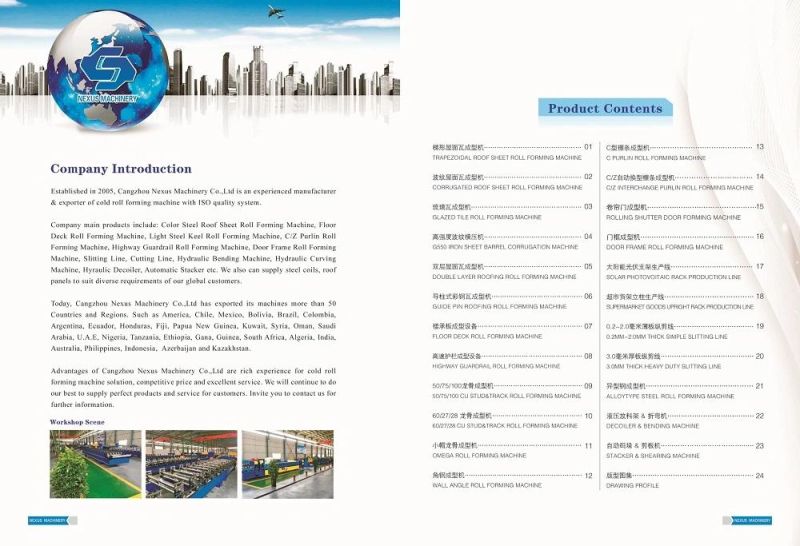

ABOUT US:
Cangzhou Nexus Machinery Co.,Ltd is experienced manufacturer & exporter of cold roll forming machine with ISO quality system.
Our R&D department is staffed with senior engineers who has more than 20 years experience in metal forming machine industry, so we are able to assist customers with professional designing and solution.
Our range of products: roof tile roll forming machine, cladding roll forming machine, metal decking roll forming machines, C/U/Z/W/L steel purlin roll forming machine etc. We also can supply steel coils, roof panels to suit diverse requirements of our global customers.
Today, we have exported our machines to America, Chile, Mexico, Bolivia, Brazil, Colombia, Argentina, Ecuador, Honduras, Fiji, Papua New Guinea, Kuwait, Syria, Oman, Saudi Arabia, U.A.E, Nigeria, Tanzania,Ethiopia, Gana, Guinea,South Sudan, Algeria, Niger, Philippines,Indonesia,India, Azerbaijan and Kazakhstan.
We have rich experience for cold roll forming machine solution,competitive price and excellent service. We will continue to do our best to supply perfect products and service for customers. Invite you to contact us for further information.
FAQ:
1. How long the machine could be made?- Normally speaking, light gauge steel frame machine could
be made without 45 working days. If you need machines in a hurry, we can make it for you
less than a month.
2. How to visit your company?
-a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),
then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5
hours), then we can
pick up you.
3. Do you have after sales support?
-Yes, we are happy to give advice and we also have skilled technicians available across the
world.We need your machines running in order to keep your business running.
