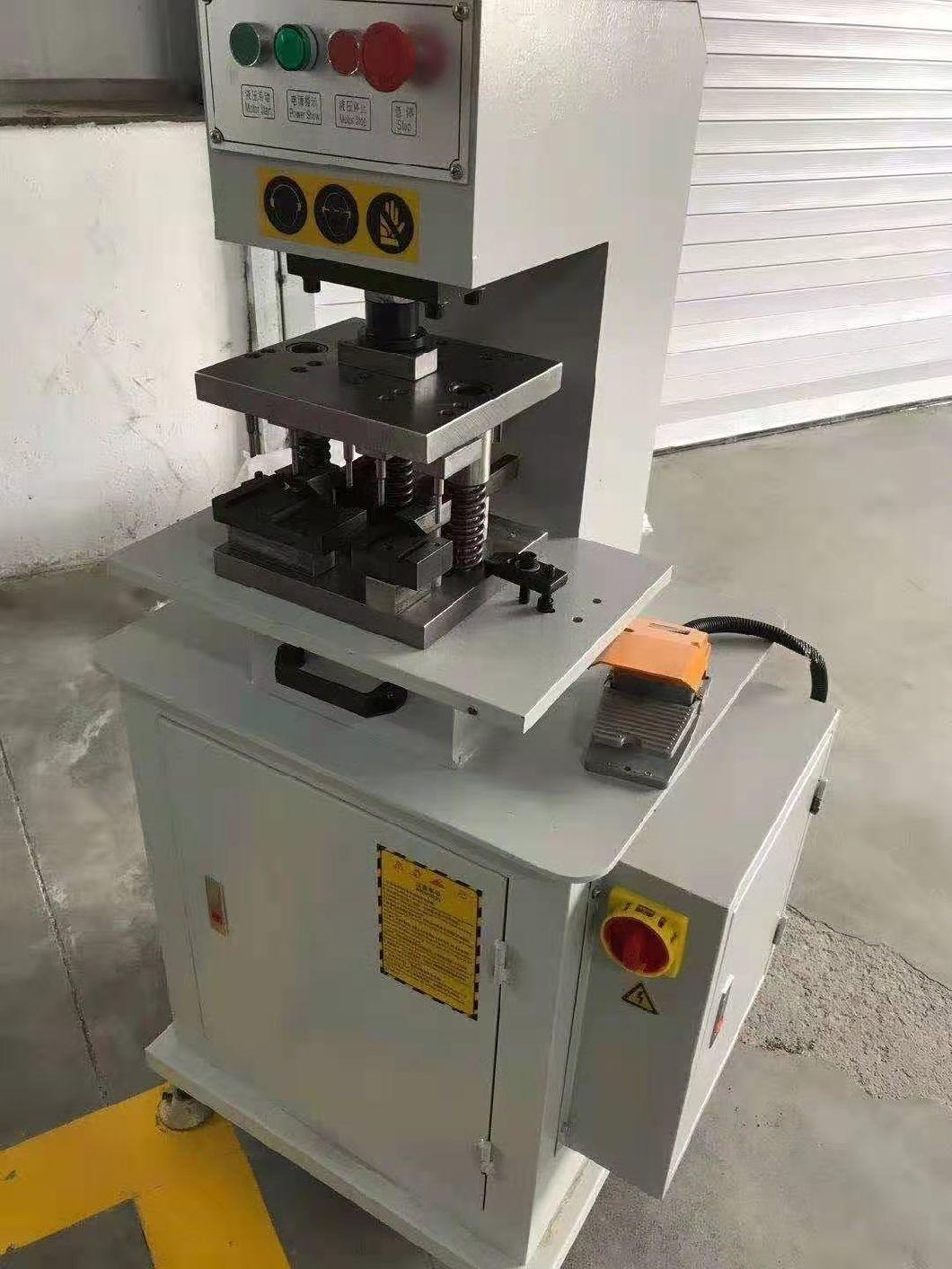

Single Position Hydraulic Punching Machine for Aluminum Window
Shandong Truetec Machinery Co., Ltd.- Condition:New
- Certification:CE
- Automatic Grade:Semi-Automatic
- CNC or Not:not CNC
- Voltage:380V
- Product Name:Single Position Hydraulic Punching Machine for Alu
Base Info
- Model NO.:CLY-16A
- Punching Pressure:16kn
- Air Pressure:0.6-0.8MPa
- Punching Journey:30mm
- Die Contour Diamension:340*240*500mm
- Machine Dimension:600*480*1320mm
- Weight:200kg
- Transport Package:Wooden
- Specification:CLY-16
- Trademark:Truepro
- Origin:China
- HS Code:846510
- Production Capacity:500sets,Year
Description
Basic Info.
Model NO. CLY-16A Punching Pressure 16kn Air Pressure 0.6-0.8MPa Punching Journey 30mm Die Contour Diamension 340*240*500mm Machine Dimension 600*480*1320mm Weight 200kg Transport Package Wooden Specification CLY-16 Trademark Truepro Origin China HS Code 846510 Production Capacity 500sets/YearProduct Description
Single position hydraulic punching machine for aluminum windowMachine feature:

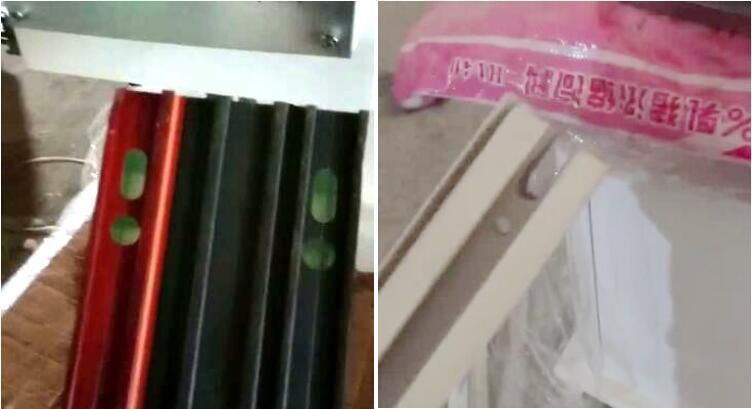

For different kinds of holes punching.
Single position die can be designed and installed easily.
Hydraulic drive,great power for special kinds of holes.
Openside design,easy operation.
Parameter:
Model | CLY-16A |
Air pressure | 0.5-0.8mpa |
Press nominal pressure | 16KN |
Punching travel | 30mm |
Die contour dimension | 340*240*500mm |
Over all dimension | 600*480*1320mm |
Weight | 200kg |

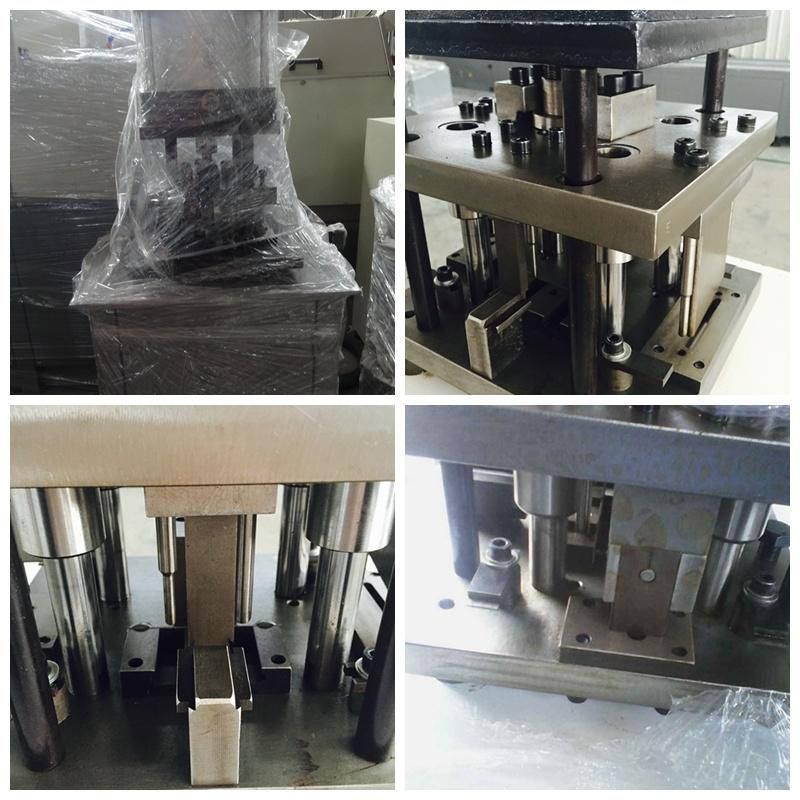

Machine details:
1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.
2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can dispatch our engineers to repair your machines
3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
All of our engineers have passport.
4. If I make Aluminum window and door, how many basic machines do i need?
1).double head cutting saw
2).Lock hole copy milling machine
3).End milling machine
4).Automatic Corner connector automatic cutting saw
5).Single head Corner combining machine
