• Model NO.：CSCXZ-02
• Applicable Industries：Construction Works
• Input Voltage：220V,50Hz
• Operation Air Pressure：0.5~0.8MPa
• Input Power：2.28kw
• Air Consumption：50L,Min
• Main-Shaft Revolution：25000r,Min
• Cutter Diameter：5,4mm
• Overall Dimension：4300*1450*1650mm
• Machine Weight：300kg
• Slot Depth：30mm
• Slot Length：0~60mm
• Applicable Material：PVC ,UPVC
• Function：PVC Window Making Machine
• Usage：Milling Water Slot Hole
• Transport Package：Wooden Box Package
• Specification：PVC window welding machine
• Trademark：TRUEPRO
• Origin：China
• HS Code：8479819000
• Production Capacity：500sets,Year

Basic Info.

Model NO. CSCXZ-02 Applicable Industries Construction Works Input Voltage 220V/50Hz Operation Air Pressure 0.5~0.8MPa Input Power 2.28kw Air Consumption 50L/Min Main-Shaft Revolution 25000r/Min Cutter Diameter 5/4mm Overall Dimension 4300*1450*1650mm Machine Weight 300kg Slot Depth 30mm Slot Length 0~60mm Applicable Material PVC /UPVC Function PVC Window Making Machine Usage Milling Water Slot Hole Transport Package Wooden Box Package Specification PVC window welding machine Trademark TRUEPRO Origin China HS Code 8479819000 Production Capacity 500sets/Year

Product Description

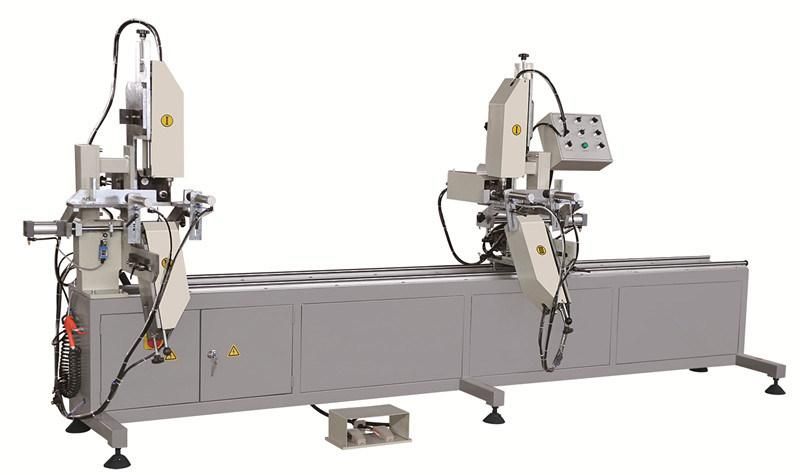

 Double Head Automatic Water Slot Milling Machine UPVC Window Machine

Main Features:

- Miling all kinds of water slots and air presure balance grooves.
- Two three-axis milling heads layout along the machine.
- One time clamp, two end water slot processing.
- High efficiency, suitable for mass production.
- Special feeding system, need no special maintenance, high milling quality.
- Convenient adjustment for the cutter location to meet different kinds of profiles.
- Water slot milling length adjustable within 100mm, wide adaptability.
- Adopt linear bearing motion to ensure the processing predision.

Equipment Parameters:

Input Power	2.28kw
Input Voltage	220v/50HZ
Air Pressure	0.5-0.8mpa
Air Consumption	50l/min
Main-shaft Revolution	25000r/min
solt length	0-60mm
Overall Dimension	1200*1200*1800mm
Weight	300kg
Color	customization





Jinan Truepro is a manufacturer of window machine, insulating glass processing machine and curtain wall machine with
well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and
stylish designs, our products are extensively used in building trade and other industries. Hope we can cooperate with you.
We believe that "IT'S THE BEST THAT FITS MOST."
Every machine could be customized to meet your special requirement.





1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.

2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can send our engineers to repair your machines

3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation
training. All of our engineers have passport.

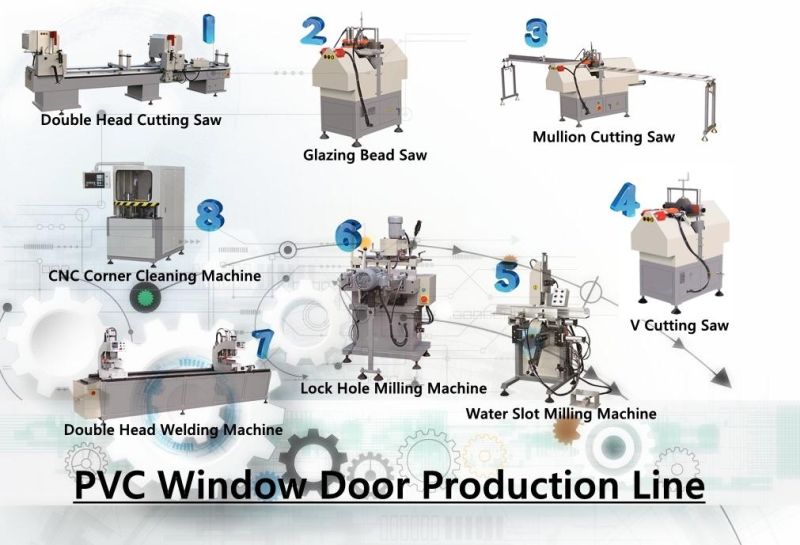

4. If I make PVC window and door, how many basic machines do i need?
