• Model NO.：686 MACHINE
• Suitable Material to Produce：Gi, PPGI, Aluminum
• Thickness of Raw Material：0.3-0.7mm, or as Your Request
• Main Power of Machine：4kw,5.5kw,7.5kw
• Power of Cutting：6kw,5.5kw,3kw
• Material of Cutter：Cr12 with Heat Treatment
• Material of Roller：45 Steel, with Chrome Coating
• Type：Galvanized Steel
• Driving of Machine：Chain Drive
• Cover Width of Material：914mm
• Speed of Machine：0-12meters,Minute
• Transport Package：Covered with Plastic Films
• Specification：ISO9001
• Trademark：ZD OR OEM
• Origin：China
• HS Code：84552210
• Production Capacity：30sets,Month

Technical parameters:1Name of commodity & specificationXN-1000 roof panel roll forming machine2Main motor power3kw, 3 phase3Hydraulic motor power3kw4Hydraulic Pressure10-12MPa5Voltage380V /3phase/ 50 HZ (or as your requirement)6Control SystemPLC Delta Inverter7Main Frame300mm H-Beam8Backboard Thickness14mm9Chain Size20mm10Feeding Materialcolor steel coils11Feeding Thickness0.3-1.2mm12Feeding Width1250mm13Effective width1000mm14Productivity8-12m/min15Roll Station1116Roller Diameter70mm17 Roller material 45# steel18 Cutter materialCr12 , quenched19Cr-Plating Size0.05mm20Overall Size6000×1650×1100mm21Total Weight4T22ComponentsManual Uncoiler-------------------1 set
Guiding Platform------------------1 set
Coil Strip Leveler------------------1 set
Main Machine of Roll Forming------1 set
Electric-Motor---------------------1 set
Cutting Device--------------------1 set

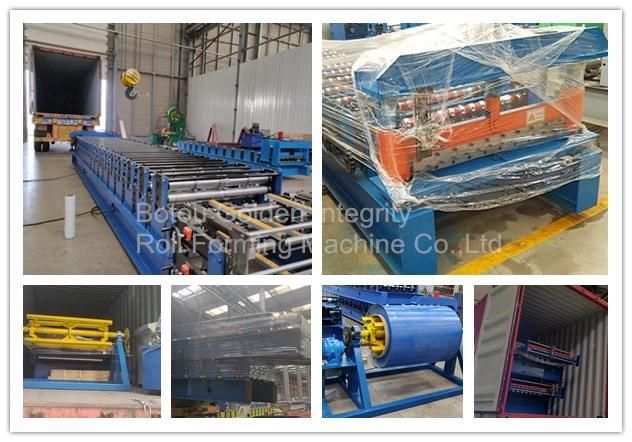

Hydraulic Station------------------1 set
PLC Control-----------------------1 set
Supporter Table-------------------1 set

 23WorkflowManual decoiling----feeding and guiding----roll forming----cut to length----run out table24Packagenude in the container25Minimum order quantity1 set26Payment termsT/T(30% T/T pay in advance, the remaining 70% pay before ship)27Delivery time30  working days later after receiving the depositAll technical parameters can be changed, according to user's need.
