• Model NO.：CLJB2-350*3500
• Cutting Height：Max. 100mm
• Cutting Width：Max. 200mm
• Cutting Length：290-3500mm
• Cutting Angle：45-135 Degree
• Applicable Material：PVC ,UPVC
• Input Power：2.1kw
• Dimension：4000*1120*1450mm
• Weight：600kg
• Transport Package：Standard
• Specification：PVC window cutting machine
• Trademark：Truetec
• Origin：China
• Production Capacity：20sets,Month

Basic Info.

Model NO. CLJB2-350*3500 Cutting Height Max. 100mm Cutting Width Max. 200mm Cutting Length 290-3500mm Cutting Angle 45-135 Degree Applicable Material PVC /UPVC Input Power 2.1kw Dimension 4000*1120*1450mm Weight 600kg Transport Package Standard Specification PVC window cutting machine Trademark Truetec Origin China Production Capacity 20sets/Month

Product Description

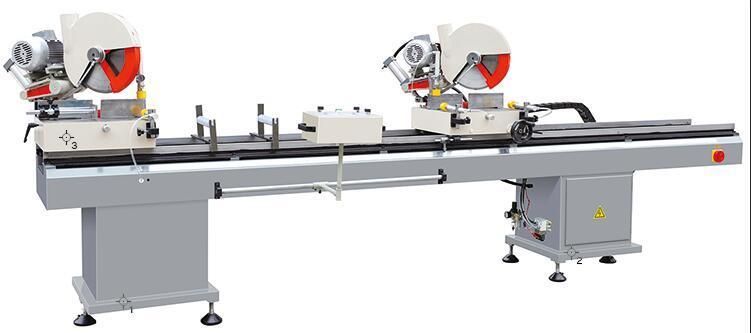

Double Mitre Saw For PVC UPVC Window Door Profile

Equipment Advantages

1.Two heads work independently or together.
2.Uniform speed feeding and smooth motion due to airdraulic damping cylinder.

3.Used for cutting aluminum and PVC profiles at 45°~90°.

4.The right machine head can be adjusted horizontally by the motor.

5.Two heads work independently or together.

6.Uniform speed feeding and smooth motion due to airdraulic damping cylinder.

Technical Data

Model	CLJB2-350*3500
Input power	3.0Kw
Power supply	380V/50Hz
Air pressure	0.5~0.8MPa
Air consumption	100L/min
Saw Blade Specification	Φ350*Φ30
Cutting angle	90°~45°
Cutting width*height	200*100mm
Cutting length	290~3500mm
Overall dimension	4000*1120*1450mm
Weight	About 600

Machine Accessory

PLC	SIEMENS,  OMRON,Taiwan Delta
Solenoid valve	Germany FESTO
Electrical Button and Switcher	Schneider
Temperature Controller	OMRON
Motor	DEDONG Zhejiang
AC Contactor and Circuit Breaker	Schneider

Machines Details




 Main Accessory

Electric Component	Schneider
Buttons	Schneider
Electric relay	Schneider
Motor	Chaoyang
AC Contactor and Circuit Breaker	Schneider

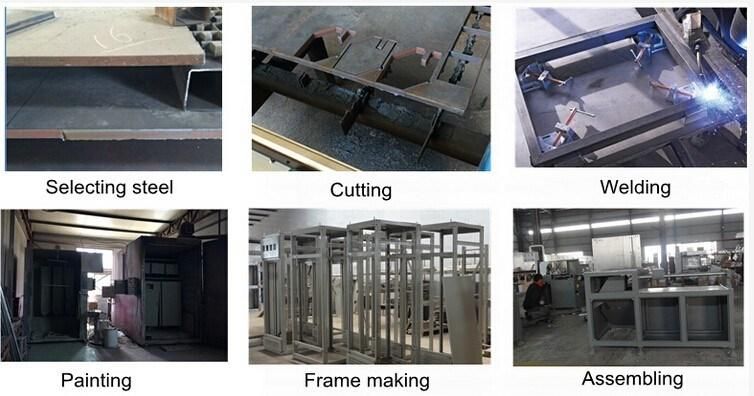

Machine processing

We work with everything from raw material to final machine, could guarantee machine quality from each step. select each part carefully, we are strive to quality first when machine production and test each machine before delivery.
We will provide the best machine for you.



Packaging&Shipping


Our Services

Before payment

Free contact for the most suitable machine

Free professional design for each customer especially.

After sale service

24 hours technical support by phone, email or skype (email or skype) .

1years warranty period

Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.

By offering this support, we make sure the cutomer start the business smoothly, to realise win-win cooperation.

Payment

♦ L/C, 30% deposit by T/T,70% spare payment L/C.

♦ T/T, 30% deposit by T/T,70% spare payment before shipment.

♦ Western Union or Paypal.

Our Company



Welcome To Visit

Our company is a manufacturer of window machine, insulating glass processing machine and curtain wall machine with well-equipped testing equipment and strong technical force.

With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in building trade and other industries. Hope we can cooperate with you.



Our Exhibition

FAQ

1. When can we arrange shippment?
We usually arrange shippment within 25 days after getting deopsit,
but customized machines should be more than 25 days.

2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can send our engineers to repair your machines

3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport.
