• Model NO.：CSJBW-1800
• Cutting Height：33mm
• Cutting Width：100mm
• Cutting Length：300-1800mm
• Rotary Speed：2800r,Min
• Applicable Material：PVC ,UPVC
• Input Power：1.5kw
• Dimension：1350*500*1350mm
• Weight：250kg
• Transport Package：Standard
• Specification：PVC window cutting machine
• Trademark：Truetec
• Origin：China
• Production Capacity：20sets,Month

Basic Info.

Model NO. CSJBW-1800 Cutting Height 33mm Cutting Width 100mm Cutting Length 300-1800mm Rotary Speed 2800r/Min Applicable Material PVC /UPVC Input Power 1.5kw Dimension 1350*500*1350mm Weight 250kg Transport Package Standard Specification PVC window cutting machine Trademark Truetec Origin China Production Capacity 20sets/Month

Product Description

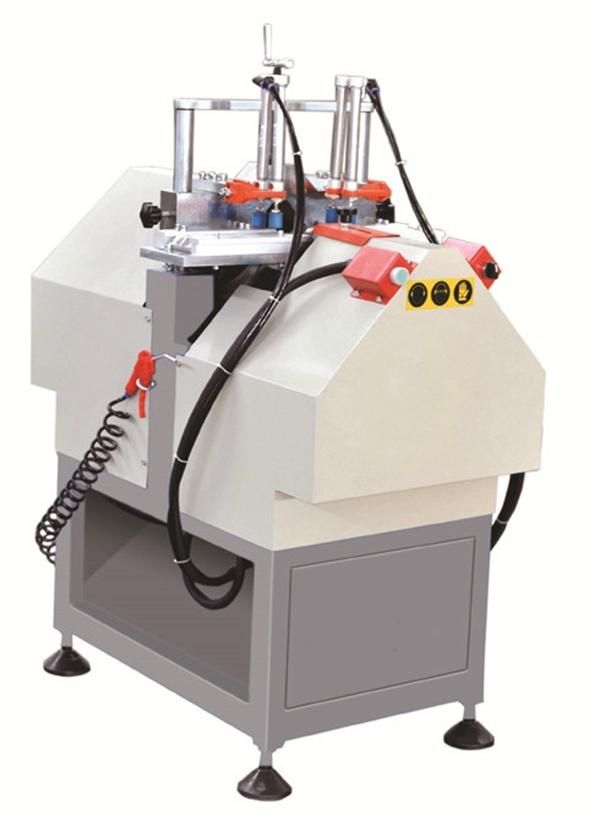

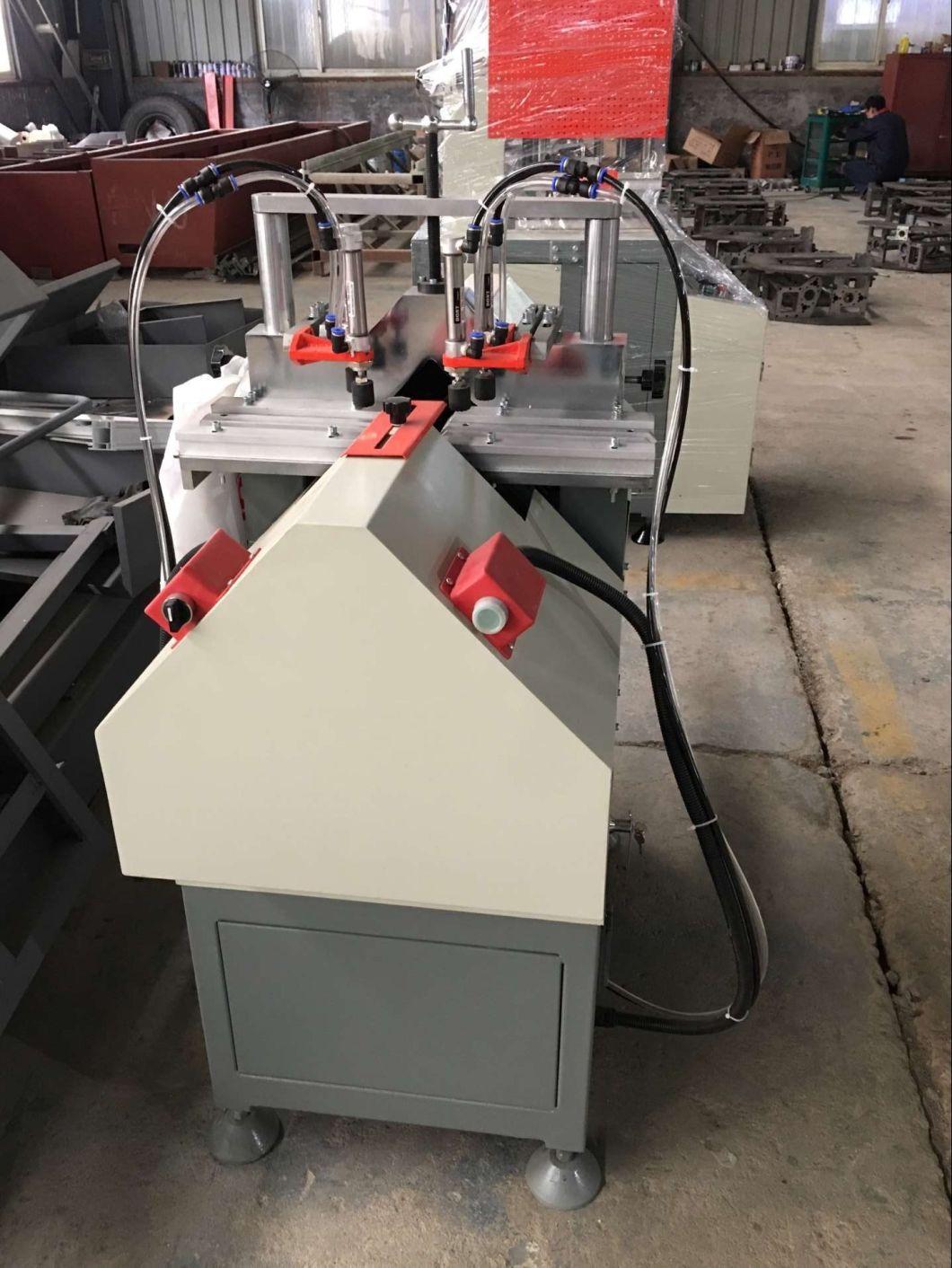

 Plastic Glazing Glass Bead Cutting Saw For UPVC PVC Profile

Machine feature:

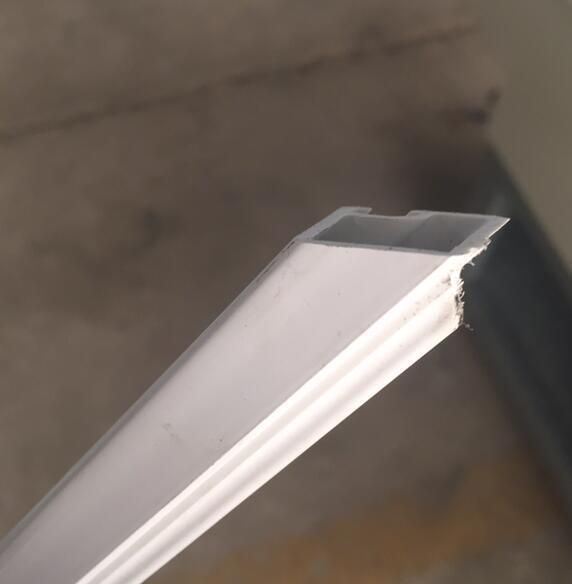

 - Automatic 45 degree cutting u-PVC glazing bead profile.
-Two glazing beads cutting in one time.
-4 pieces saw blade ensure precise cutting, double cutting one each end to mill the hook foot.
-Vertical clamping device and special designed cutting jig ensure stable positioning.
-Two hand safety operation
Parameter:

Model Number	CSJBW-1800
Air Pressure	0.5~0.8(MPa)
Air Consumption	20(L/min)
Input Voltage	380V 50HZ or as customer specification
Input Power	1.5KW
Cutting Height	33mm
Cutting Width	100mm
Cutting Length	350-1800mm
Overall Dimension	1350*500*1350mm
Weight	250kg

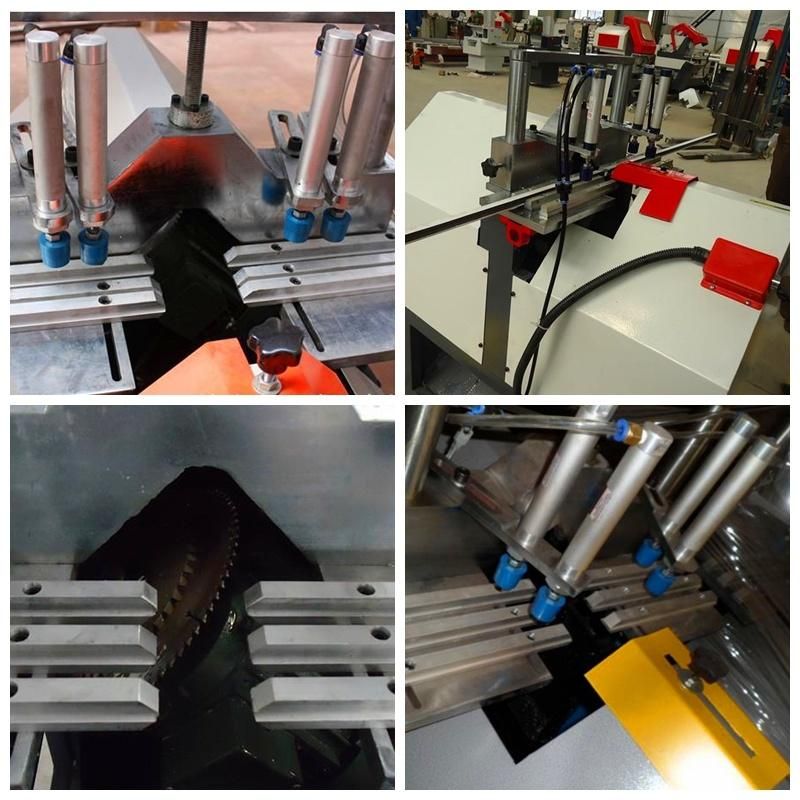

Machine details:








1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.

2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can dispatch our engineers to repair your machines

3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
All of our engineers have passport.

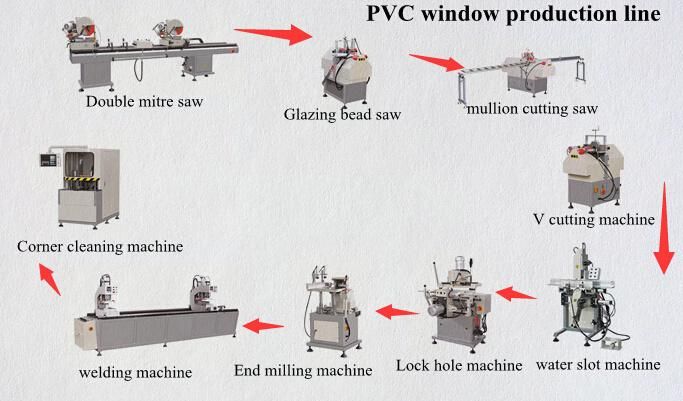

4. If I make PVC window and door, how many basic machines do i need?
