- Model NO.：HZS50
- Aggregate Batcher：PLD1600-3
- Cement Silo：50t or 100t
- Concrete Batching Plant Control：Full Automatic Computer Control
- Water&Cement Weighing：Separate Accurate Scale
- Aggregate Weighing：by Weight
- Scale Accuracy：2% Concete Batcher
- Transport Package：2-10 Sets of 40hq Container
- Specification：ISO9001: 2008, CE
- Trademark：FOCUS
- Origin：Zhengzhou, China
- HS Code：847431000
- Production Capacity：60sets Per Month
| Model | HZS25 | HZS35 | HZS50 | HZS75 |
| Theoretical output(m³/h) | 25 | 35 | 50 | 75 |
| Mixer model | JS500 | JS750 | JS1000 | JS1500 |
| Output per batch(m³) | 0.5 | 0.75 | 1 | 1.5 |
| Aggregate batcher | PLD800 | PLD1200 | PLD1600 | PLD2400 |
| Total power(KW) | 27 | 35 | 80 | 110 |
| Aggregate weighing accuracy(%) | (0-1500)kg±2% | (0-2250)
kg±2% | (0-2500)kg±2% | (0-4000) kg±2% |
| cement weighing accuracy(%) | (0-300)kg±1% | (0-400)kg±1% | (0-500)
kg±1% | (0-800)
kg±1% |
| water weighing accuracy(%) | (0-200)kg±1% | (0-300)kg±1% | (0-300)kg±1% | (0-500)kg±1% |
| fly ash weighing accuracy(%) | (0-300)kg±1% | (0-300)kg±1% | (0-300)kg±1% | (0-500)kg±1% |
| additive weighing accuracy(%) | (0-40)kg±1% | (0-40)kg±1% | (0-40)kg±1% | (0-50)kg±1% |
| Discharge height(m) | 3.8-4.1 |
| Max. aggregate dia.(mm) | 60 | 60 | 80 | 80 |
| Cement silo and screw conveyor | On request |
| Total weight (ton) | 20 | 25 | 35 | 45 |
| Overall dimension(LxWxH)(m) | 11.5x5.8x19.4 | 12x6x19.4 | 20.5x7.5x19.4 | 25.9x9.2x19.4 |
| | | | | | |
Parameters of Belt conveyor type Concrete Batching Plant/Concrete Mixing Plant:| Model | HZS60 | HZS90 | HZS120 | HZS180 | HZS240 |
| Theoretical output(m³/h) | 60 | 90 | 120 | 180 | 240 |
| Mixer model | JS1000 | JS1500 | JS2000 | JS3000 | JS4000 |
| Output per batch(m³) | 1 | 1.5 | 2 | 3 | 4 |
| Aggregate batcher | PLD2400 | PLD2400 | PLD3200 | PLD4800 | PLD6400 |
| Total power(KW) | 110 | 145 | 160 | 205 | 340 |
| Aggregate weighing accuracy(%) | (0-3000)kg±2% | (0-4000)kg±2% | (0-4500)kg±2% | (0-4500)kg±2% | (0-6000)kg±2% |
| cement weighing accuracy(%) | (0-600)kg±1% | (0-1000)kg±1% | (0-1200)kg±1% | (0-1800)kg±1% | (0-2400)kg±1% |
| water weighing accuracy(%) | (0-400)kg±1% | (0-400)kg±1% | (0-600)kg±1% | (0-800)kg±1% | (0-1000)kg±1% |
| fly ash weighing accuracy(%) | (0-400)kg±1% | (0-400)kg±1% | (0-600)kg±1% | (0-800)kg±1% | (0-700)kg±1% |
| additive weighing accuracy(%) | (0-40)kg±1% | (0-40)kg±1% | (0-50)kg±1% | (0-50)kg±1% | (0-120)kg±1% |
| Discharge height(m) | 3.8-4.2 |
| Max. aggregate dia.(mm) | 80-100 |
| Cement silo and screw conveyor | On request |
| Total weight (ton) | 46 | 60 | 71 | 87 | 112 |
| Overall dimension(LxWxH)(m) | 33.8x14.8x19.4 | 38x16x19.4 | 44x18x19.4 | 58.5x23.5x22 | 60x25x22 |

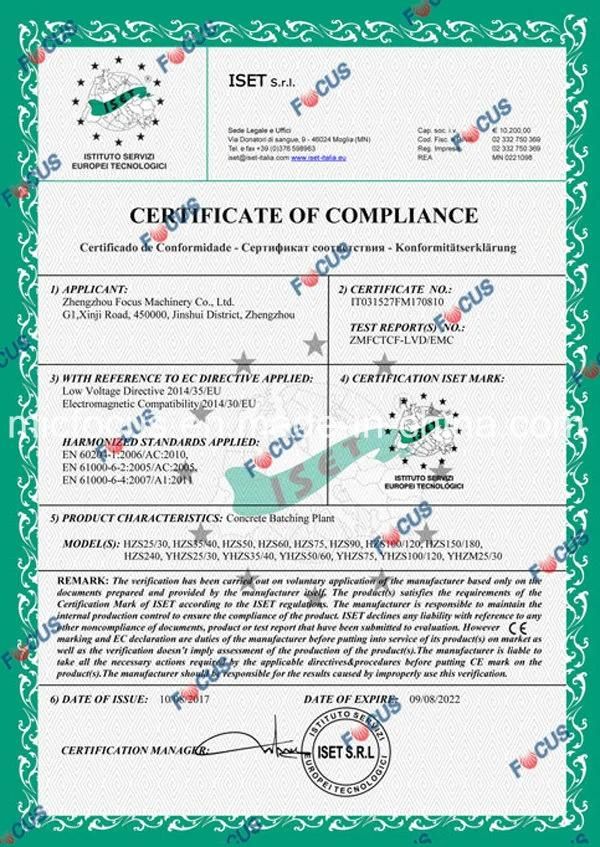

CE Certificate of FOCUS Stationary Concrete Batching Plant/Concrete Mixing Plant:
