• Production Capacity：100 Sets Per Year

Basic Info.

Production Capacity 100 Sets Per Year

Product Description

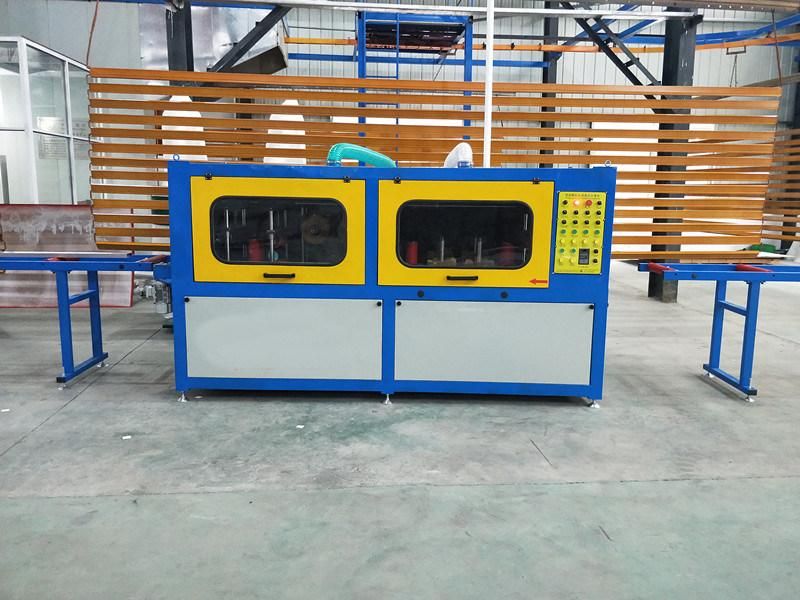

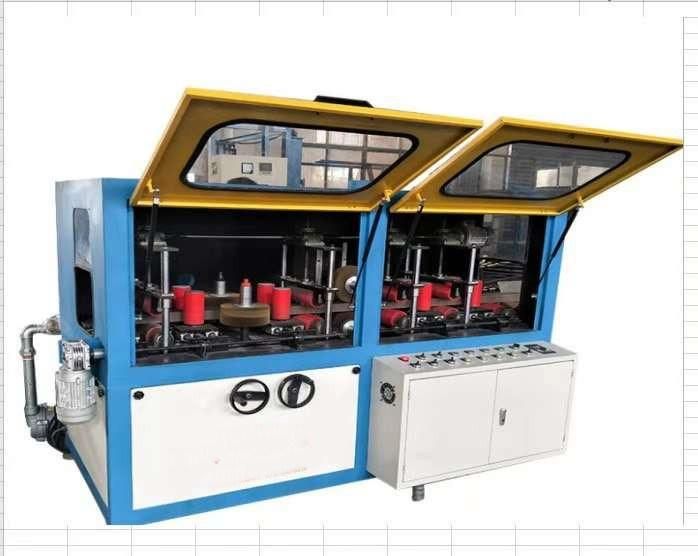

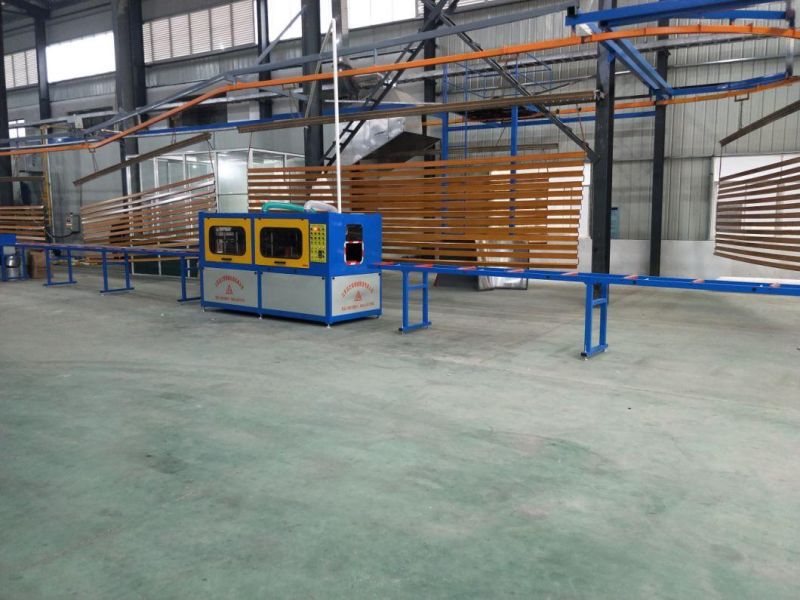

Aluminium Profile Surface Cleaning Machine
 1.Product Description
      This equipment adopts single profile grinding four surface. In the aluminum extrusion production, material surface varying degrees of the presence of small particles, aluminium profile end burr after finish saw cutting, aluminium crumbs during aging treatment, adsorption on the aluminium profile surface, this kind of defect, only a slight touch feeling, it is difficult to discover without careful observation or by hand touch,it seriously affect the smooth and good look after electrophoresis wood effect and powder coating effect, and reduces the production efficiency and yield. This equipment function is to clean the particles and burr of aluminium profile surface.
Production Process:

After aging--place one by one--clean the aluminium profile--pre-treatment--curing--wood effect--Check--Packing

Main parameters:

1,Total power:  15 KW    380V 50HZ
2,Overall size: 2160×1000×1560mm
3,Main motor:Frequency converting control NMRV50-5-0.75kw      1 set
               PU Roller Ø100×250mm             5pcs
4,Transmission mechanism of stop wheel:NRMV40-10-0.37kw         1 set
                Clamp mechanism                   5pcs
                PU roller  Ø80×150mm          10pcs
5,Pressing wheel lifting mechanis:SMD-1B-1T-0.37kw         1 set
                 Pressing wheel mechanism                  4 set
                 PU roller  Ø80×250mm                     4pcs
6,Horizontal cleaning head:Y90L-2-2.2kw                    2 sets
7,Horizontal head lifting:NRMV40-20-0.18kw                 2 sets
8,Vertical cleaning head:Y90L-2-2.2kw                      2 sets
9,Dust removal system:Y100L-2-3kw                       1 set
10,No power feeding rack:PU Roller 6000×400mm×780mm    1 set
11,No power discharging rack:PU roller 7500×400mm×780mm     1 set
12,Electrical control elements: electrical control cabinet         1 set






2.After-Sale Service

Provide the best factory building support and machine design technical support, and after-sale support machine usage guide instruction, and field video guide.

If necessary we can send professional technicians there.

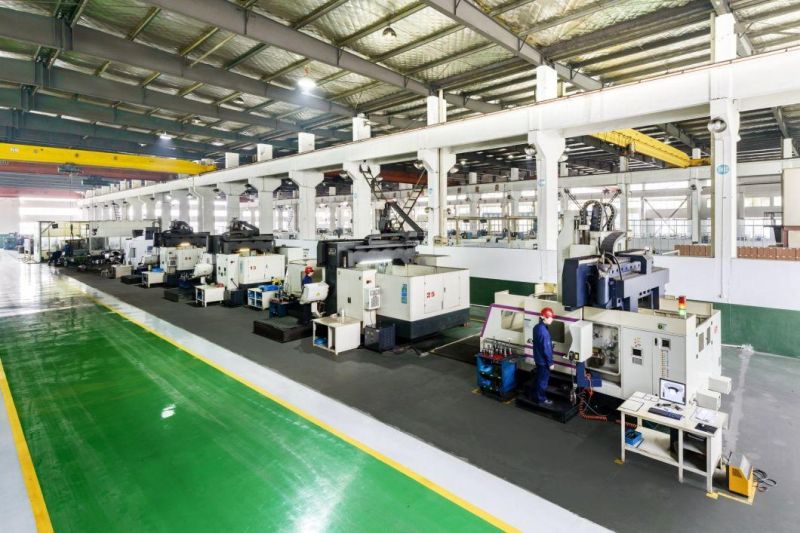

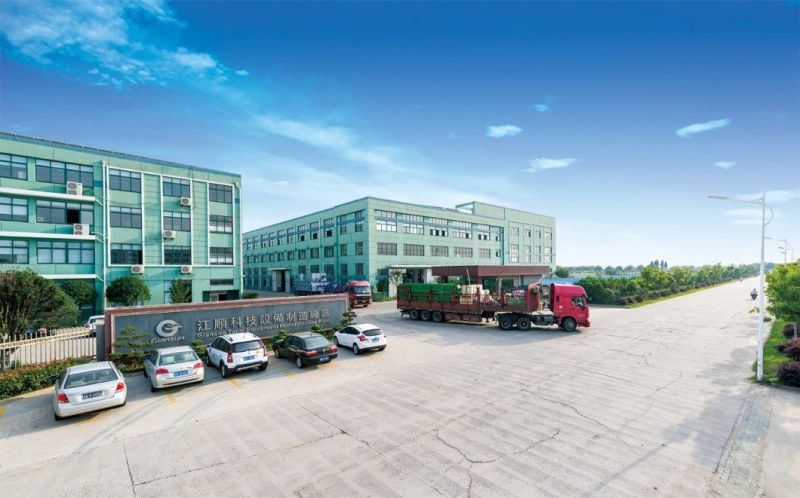

3.Company Introduction

Jiangsu Giant Ally Imp.&Exp.Co., Ltd. has been focusing on the aluminum extrusion industry for more than ten years,
It has served more than 100 aluminum extrusion manufacturers worldwide, with annual sales of nearly US$20 million. With excellent products and professional service levels, we enjoy a good reputation in the client, and have the honour to maintain year-on-year growth in the number of customers served and annual sales.

Current main products:
1. Aluminum extrusion production line (maximum 10000T) has high degree of automation, stable operation, and leading technology. It has been sold to Spain, Romania, Russia, Malaysia, Vietnam, Mexico, Colombia, the United States and other parts of the world;
2. Aluminum extrusion dies (annual output of 100,000 sets, maximum die size 1400mm), aluminum extrusion tools are also in the world's leading level in terms of output, quality, technology, etc., customers are distributed on five continents.

The above products are designed and produced by the parent company Jiangshun Technology Group.

In addition, with the parent company's influence in this field, we have also established good relations with many scientific research institutes and upstream and downstream professional manufacturers, so that we have professional integration in other equipment and auxiliary materials in the aluminum extrusion industry. Capabilities, including:
Melting and casting production lines, spraying and oxidation production lines, and other small-scale equipment for aluminum extrusion, as well as auxiliary materials necessary in various production links, etc., truly provide customers with one-stop service and procurement.

Adhering to the purpose of growing together with customers and creating value for customers wholeheartedly, we look forward to serving you and welcome any technical and business consultations.

To be with Giantally, to be a giant ally!





4.FAQ

I.What's the delivery time of your aluminum extrusion machine?

For ordinary small-sized machine such as saw, 30 days; middle-sized machine such as heating furnace, 45-50 days, for big-sized machine such as cooling system/profile handling system, 60 days. We could also design and make the whole production line for our customer, around 3-6 months.

II.What's your ordinary shipment method?

We can deliver the machine by land, or by ocean.

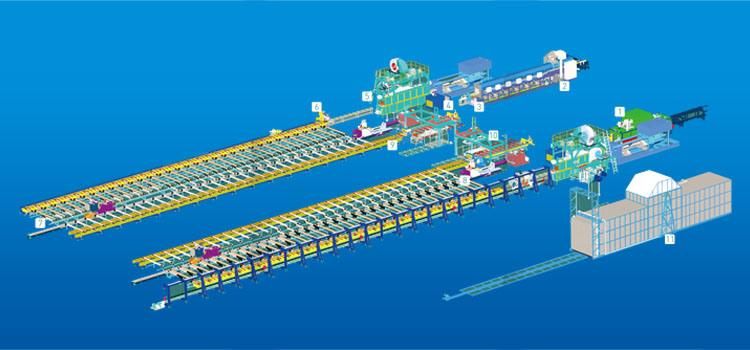

5.The Whole Aluminum Extrusion Line

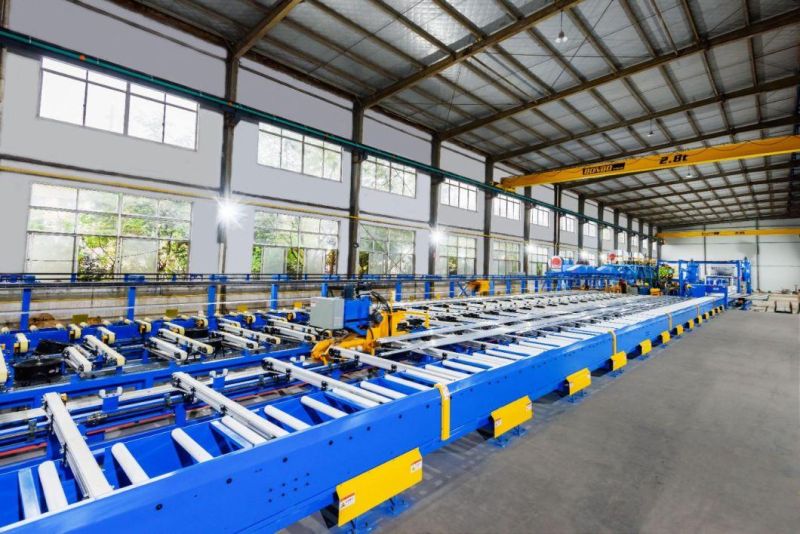

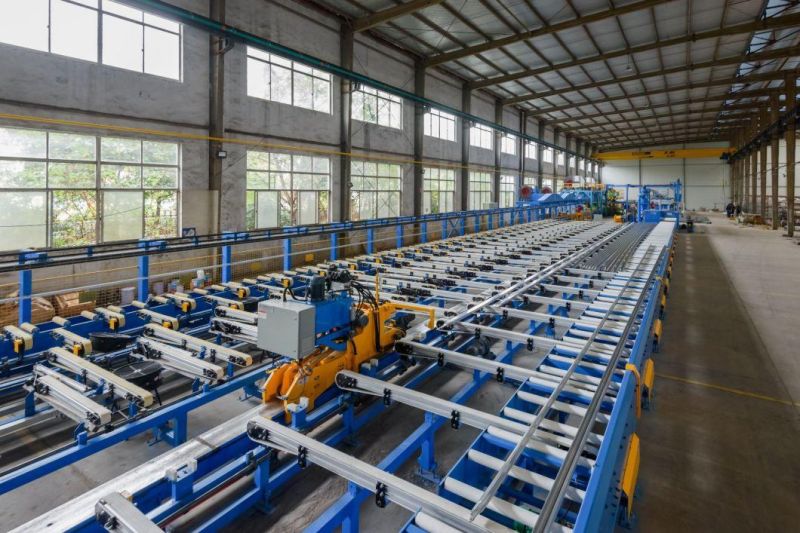

6.Project Case
