Ce Compliance C Z Quick Change Purlin Roll Forming Machine
Cangzhou Nexus Machinery Co., Ltd.- Warranty：1 Year
- Certification：CE, ISO9001
- Customized：Customized
- Condition：New
- Control Type：Electric
- Automatic Grade：Automatic
Base Info
- Product Name：Ce Compliance C Z Quick Change Purlin Machine
- Coil Material Thickness：1--3mm
- Processing Material：Galvanized Steel
- Roller Material：Cr12MOV
- Main Frame：400mm H-Beam
- Total Power：22 Kw
- Forming Speed：12-24m,Min
- Roll Station：18 Stands
- Roller Diameter：80mm
- Effective Width：80-300mm
- Transport Package：Plastic Film
- Specification：80-300
- Trademark：Nexus Machinery
- Origin：Cangzhou
- Production Capacity：10
Description
Article No.
Item Name
Specification
1
Width of feeding material
According the profile
2
Thickness of feeding material
Max 3.0mm
3
Purlin Width
100-300mm
4
Purlin Height
40-80mm
5
Roller station
14 stations
6
Roller material
Gcr15, quench treatment hardness 55-58
7
Forming speed
10-15 m/min
8
Main motor
15 kw
9
Driving way
Chain transmission
10
Hydraulic power
5.5kw
11
Punching
Hydraulic pre-punching
12
Punching mould material
Cr12
13
Cutting system
Hydraulic pre-cutting
14
Blade material
Cr12
15
Tolerance
+-1.5mm
16
Voltage
380V 50Hz 3phases
17
Machine height
13 tons
18
Machine length
10m
19
Control
Panasonic PLC
20
Decoiler
5 tons

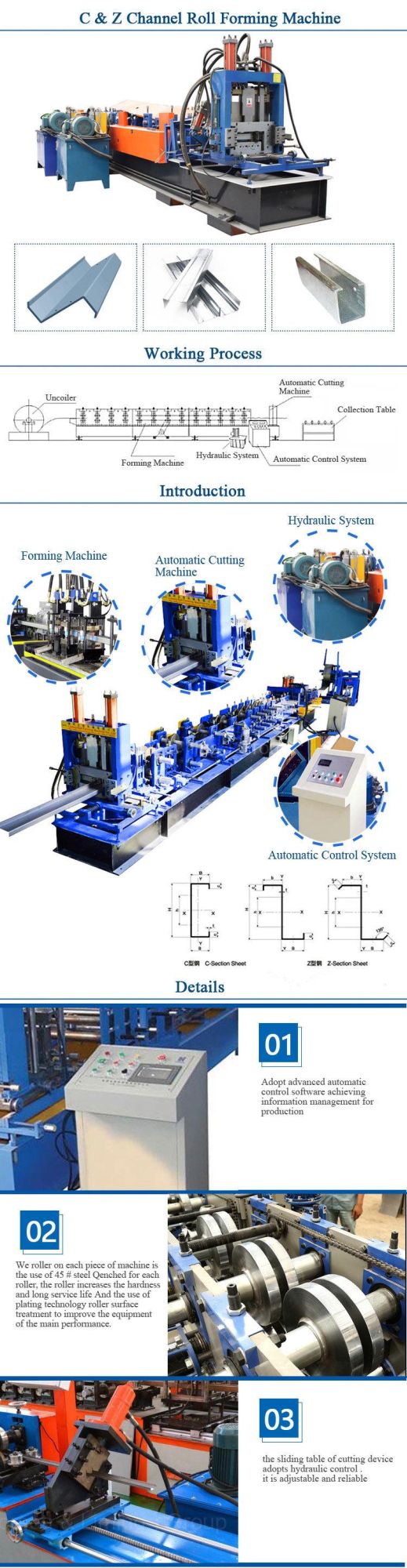

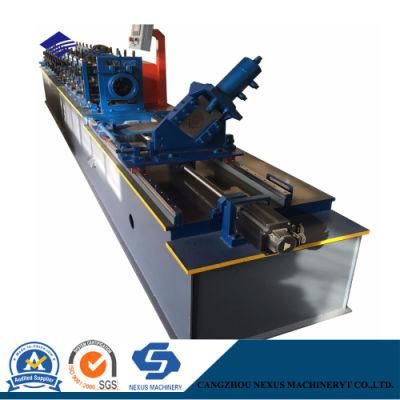

Photo of CE Compliance C Z Quick Change Purlin Roll Forming Machine foir reference:

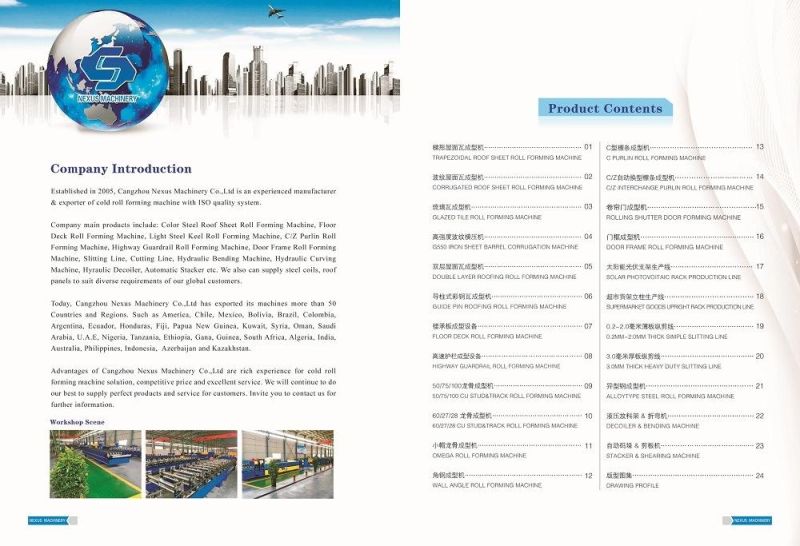

ABOUT US:
Cangzhou Nexus Machinery Co.,Ltd is experienced manufacturer & exporter of cold roll forming machine with ISO quality system.
Our R&D department is staffed with senior engineers who has more than 20 years experience in metal forming machine industry, so we are able to assist customers with professional designing and solution.

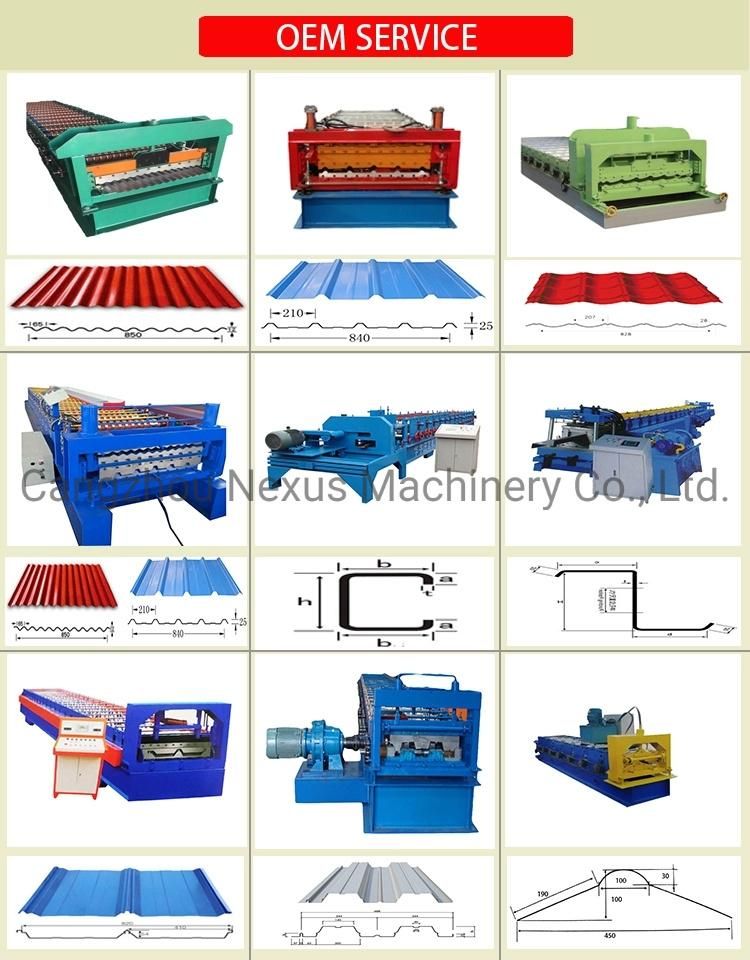

Our range of products: roof tile roll forming machine, cladding roll forming machine, metal decking roll forming machines, C/U/Z/W/L steel purlin roll forming machine etc. We also can supply steel coils, roof panels to suit diverse requirements of our global customers.
Today, we have exported our machines to America, Chile, Mexico, Bolivia, Brazil, Colombia, Argentina, Ecuador, Honduras, Fiji, Papua New Guinea, Kuwait, Syria, Oman, Saudi Arabia, U.A.E, Nigeria, Tanzania,Ethiopia, Gana, Guinea,South Sudan, Algeria, Niger, Philippines,Indonesia,India, Azerbaijan and Kazakhstan.
We have rich experience for cold roll forming machine solution,competitive price and excellent service. We will continue to do our best to supply perfect products and service for customers. Invite you to contact us for further information.
FAQ:
1. How long the machine could be made?- Normally speaking, light gauge steel frame machine could
be made without 45 working days. If you need machines in a hurry, we can make it for you
less than a month.
2. How to visit your company?
-a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),
then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5
hours), then we can
pick up you.
3. Do you have after sales support?
-Yes, we are happy to give advice and we also have skilled technicians available across the
world.We need your machines running in order to keep your business running.
