Passed Ce and ISO Decking Roll Forming Machine Manufacture
Hangzhou Zhongyuan Machinery Factory- Warranty：12 Months
- Tile Type：Glazed Steel
- Certification：CE, ISO
- Condition：Cold Roll Forming
- Customized：Customized
- Usage：Floor
Base Info
- Model NO.：decking roll forming machine Manufacture
- Transmission Method：Electric
- Cutter Material：Cr12 Mould Steel Being Quenched Treatment
- Rollers Material：No.45 Forged Steel, Plated with Hard Chrom
- Shaft Diameter：82mm
- Main Power：11kw
- Place of Origin：China
- Operation Language：English or as Per Client`S Required
- Controlling System：Mitsubishi PLC & Converter
- Name：Roll Forming Machine Manufacture
- Transport Package：1*40gp+1*20gp
- Specification：CE SGS BV ISO
- Trademark：Zhongyuan
- Origin：China
- HS Code：84552210
- Production Capacity：20sets,Month
Description
Process flow:
Decoiler -- Feeding & Guiding -- Pressing--Roll Forming--Hydraulic Cutting - Product to Run Out Table

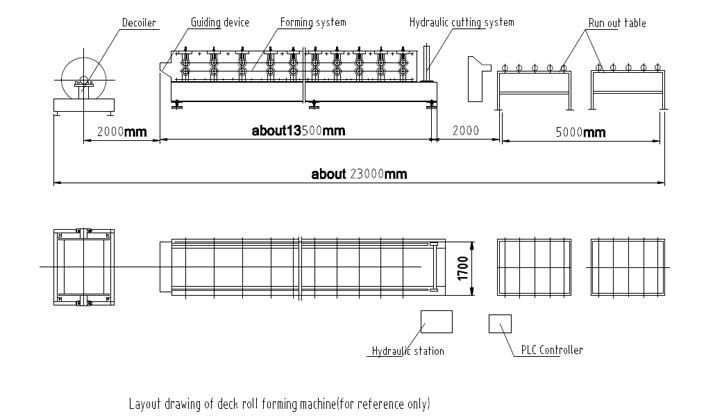

Layout drawing
Certifications
Customer tour
FAQ
Q1:When your factory extablished?
A1: We extablished since 2003, team with engineers who have 20 years experience in metal forming machine industry. We produce machine all-in-house, from raw material to ready machine, all done in our factory, so that we can control our machine quality and delivery time.
Q2:How long does it take to deliver the machine after the order & deposit?
A2:Usually it will take 50-60 working days to manufacture the machine and make it ready to deliver. At first 15 days the technical drawing will be made. The second 25 days start manufacturing the parts and ready to assemble. In the last 20 days the machine will be assembled and inspected to make sure it is ready to deliver.
Q3:What is your warranty term?
A3:Machine warranty time is 12 months. We supply life time service for our produced machines for all customers.
Q4:Can you offer oversea service?
A4:Yes,we have experienced technicians who can be sent to different countries to install our machines and supply others service .
