• Model NO.：floor tile floor tile making machine
• Color：as You Like
• Trade or Factory：Factory
• Guarantee：1 Year
• Life Time：10 Years
• Service：Provide Engineer to Install The Machines
• Brand Name of PLC：as Customer Request
• Drawing：Designed as Customer Request
• Power：38V, 50Hz, 3 Phrase or as Your Like
• Decoiler Type：Manul, Electric, Hydraulic
• Control System：PLC
• Transport Package：Main Machine Nude Packing with Plastic Film
• Specification：6800*1500*1500
• Trademark：KXD
• Origin：China
• HS Code：8455221000
• Production Capacity：30 Sets Per Month

Technical parameters:1Name of commodity & specificationXN-688 Floor Deck roll forming machine2Main motor power18.5kw, 3 phase3Hydraulic motor power15kw4Hydraulic Pressure18-20MPa5Voltage380V /3phase/ 50 HZ (or as your requirement)6Control SystemPLC Delta Inverter7Main Frame450mm H-Beam8Backboard Thickness22mm9Chain Size66mm10Feeding Materialcolor steel coils11Feeding Thickness0.3-0.8mm12Feeding Width1000mm13Effective width688mm14Productivity8-10m/min15Roll Station2716Roller Diameter95mm17 Roller material 45# steel18 Cutter materialCr12 , quenched19Cr-Plating Size0.05mm20Overall Size15000×1200×1100mm21Total Weight19T22ComponentsManual Uncoiler-------------------1 set
Guiding Platform------------------1 set
Coil Strip Leveler------------------1 set
Main Machine of Roll Forming------1 set
Electric-Motor---------------------1 set
Cutting Device--------------------1 set
Hydraulic Station------------------1 set
PLC Control-----------------------1 set

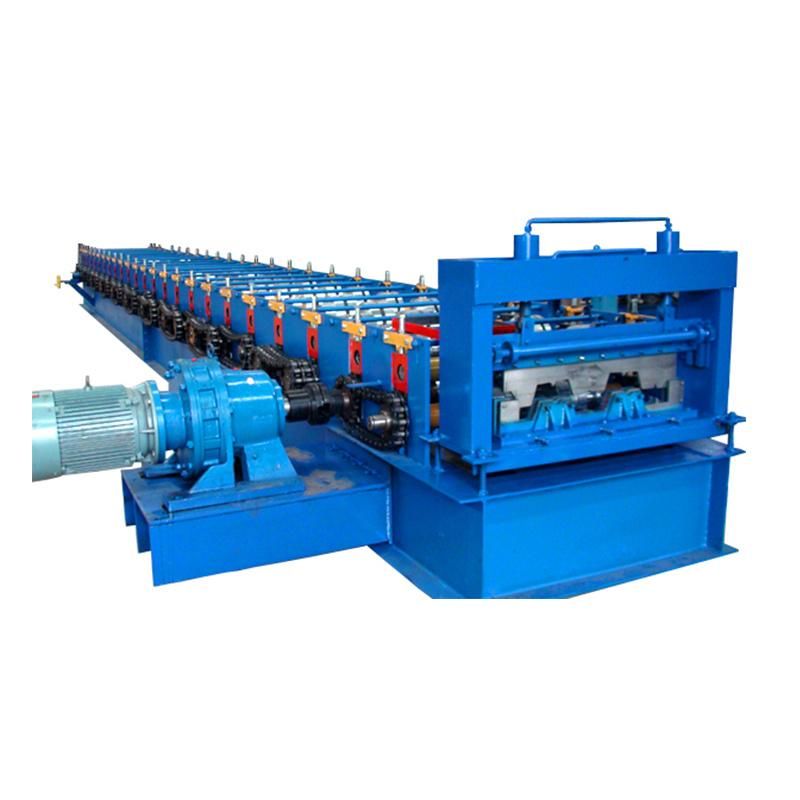

Supporter Table-------------------1 set23WorkflowManual decoiling----feeding and guiding----roll forming----cut to length----run out table24Packagenude in the container25Minimum order quantity1 set26Payment termsT/T(30% T/T pay in advance, the remaining 70% pay before ship)27Delivery time30  working days later after receiving the depositAll technical parameters can be changed, according to user's need.3.the picture of the  kexinda floor deck roll forming machine



4.Packaging & Shipping
Main machine is nude, the computer control box is packed with wooden fram


5.FAQ

1:How to play order: Inquiry---confirm the profile drawings and price----confirm the PI---arrange the deposit or L/C---then OK
2:How to visit our company:
Fly to Beijing airport:   By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao  to Cangzhou Xi(4.5 hours),then we can pick up you.
If any questions,you can call me mobile phone at any times
3:When we exported the machines:
We have beening making and exporting the machines since from the year of 1998.
4:If you want to get more pictures or videos of the machines,I can send them to you by Email or SKype.
