• Model NO.：840
• Transmission Method：Hydraulic Pressure
• Effective：Easy Operation
• Type：Concrete Iron Strengthen Machinery
• Method：Rolling Machine
• Processing：Rolling Machine
• Product：Steel
• Brick Raw Material：Steel
• Automation：Automatic
• Tolerance：1.0mm
• Transport Package：No
• Specification：CE, SGS
• Trademark：DIXIN
• Origin：Cangzhou City, Hebei Province, China
• HS Code：84552210
• Production Capacity：20sets,Per Month

Basic Info.

Model NO. 840 Transmission Method Hydraulic Pressure Effective Easy Operation Type Concrete Iron Strengthen Machinery Method Rolling Machine Processing Rolling Machine Product Steel Brick Raw Material Steel Automation Automatic Tolerance 1.0mm Transport Package No Specification CE, SGS Trademark DIXIN Origin Cangzhou City, Hebei Province, China HS Code 84552210 Production Capacity 20sets/Per Month

Product Description

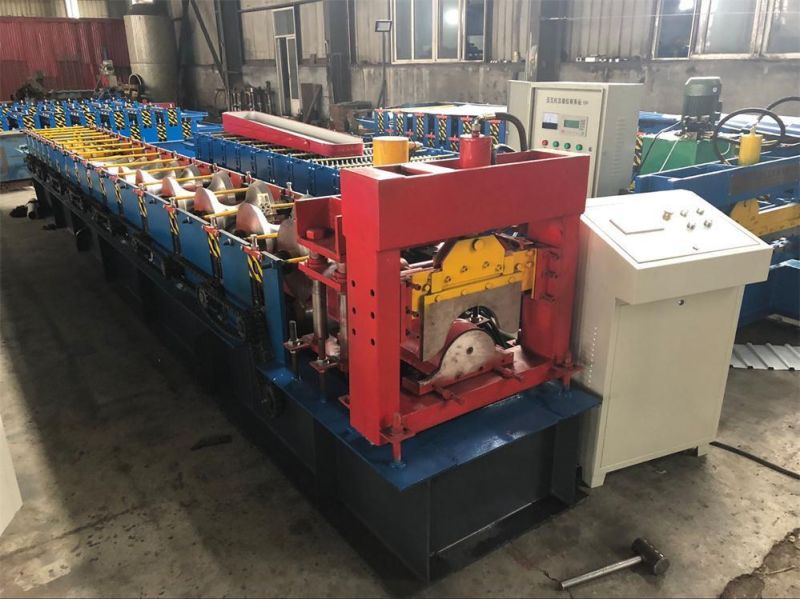

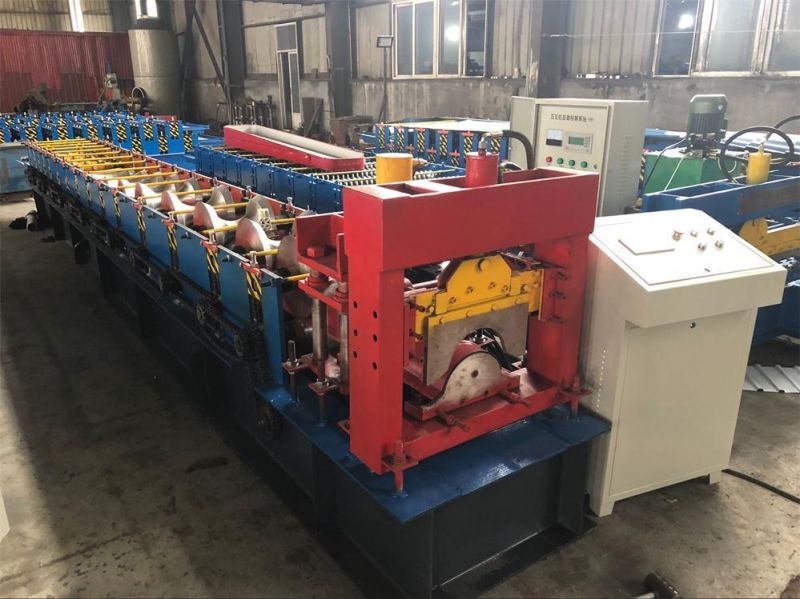

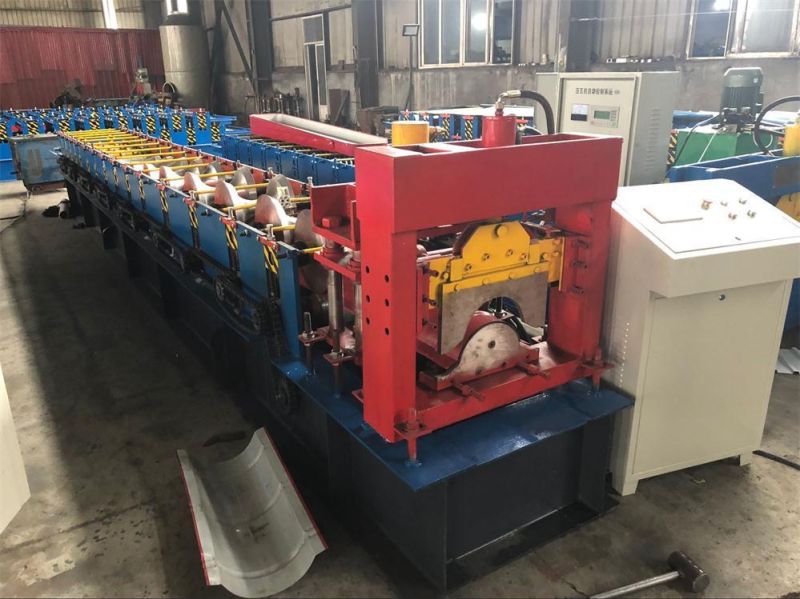

            New Type of Arch Sheet Ridge Cap Roll Forming Machine







We ever sold machines to many countries, such as: US, UK, Canada, Brazil, Greece, Italy, India, Russia, Zambabwe, Azerbaijan, Sri Lanka, etc.

Wherever you come, we will try our best to supply you what are famous used in your counties if we know it.

We also can design machines as customers' request, so donot hesitate to tell us what do you need.


1. Technique parameters
(1) Processing material: Aluzinc/galvanized steel/colored steel coil
(2) Material thickness: 0.3-0.8mm
(3) Effective width: 840mm
(4) Feeding width: 1000mm
(5) Main motor power: 4 kw
(6) Pump power: 4 kw
(7) Shaft diameter: 75mm
(8) Forming steps: 4 steps
(9) Roller material: 45# forged steel, with hard chrome plating
(10) Main frame: 300H steel
(11) Medium plate thickness: 14mm
(12) Control systerm: PLC computer control with inverter
(13) Power supply: 380V, 3 Phase, 50Hz
(14) 0veral sized: 3500mm*1500mm*1500mm
(15)Total weight: 1 tons

2. Work flow
Manual decoiler- Roll forming machine- PLC control- Hydraulic system - Post press

3. Specific description
(1) Manual decoiler
Un-powered, single head, max capacity: 5000kg

(2) hydraulic pump station
It is controlled by gear wheel oil pump, after filling the hydraulic oil into the hydraulic oil tank, the pump drive the cutting machine to begin the cutting job.

(3) Computer control cabinet
It adopts TaiDa PLC to control, the target sheet length is adjustable.
Computed mode has two modes: Automatic and manual.
Touch screen.


4. Payment term
TT, you should pay 30% as the deposit on the order day, then pay 70% before delivery when you inspect goods well in factory or by video

5. Warranty
12 months, and lifelong technical support service

6. Installation
If you need, we will send one technician to your factory to install & testing the machine. You should assist the technician to get Visa and pay for flight tickets and local accommodation, and pay 80 USD/day for salary.

7. Package
Standard export package, water-proof package, covered with plastic film

No.	Name	Unit	Qty
1	Manual decoiler	set	1
2	Main forming machine	set	1
3	PLC control system	set	1
4	Hydraulic pump station	set	1
5	Post cut	set	1
6	Electric motor	set	1

8.Company information



Hope cooperation with you in the furture and if you have any question,please contact me !
