• Model NO.：JYT-2500
• Air Pressure：0.5-0.8MPa
• Max. Processing Glass Size：2500*3000mm
• Min. Processing Glass Size：300*450mm
• Working Direction：Right to Left or Left to Right
• Working Pressure：32MPa
• Transfer Speed：5-40m,Min
• Machine Dimension：10000*1500*3600mm
• Weight：3000kg
• Seaport：Qingdao
• Package：Wooden Cases
• Service：Offered
• Function：Double Glass Making Machine
• Usage：Insulating Glass Production Line
• Advantage：Easy to Operate
• Transport Package：Standard
• Specification：JYT-2500
• Trademark：Truepro
• Origin：China
• HS Code：8479819000
• Production Capacity：200 Sets,Year

Basic Info.

Model NO. JYT-2500 Air Pressure 0.5-0.8MPa Max. Processing Glass Size 2500*3000mm Min. Processing Glass Size 300*450mm Working Direction Right to Left or Left to Right Working Pressure 32MPa Transfer Speed 5-40m/Min Machine Dimension 10000*1500*3600mm Weight 3000kg Seaport Qingdao Package Wooden Cases Service Offered Function Double Glass Making Machine Usage Insulating Glass Production Line Advantage Easy to Operate Transport Package Standard Specification JYT-2500 Trademark Truepro Origin China HS Code 8479819000 Production Capacity 200 Sets/Year

Product Description

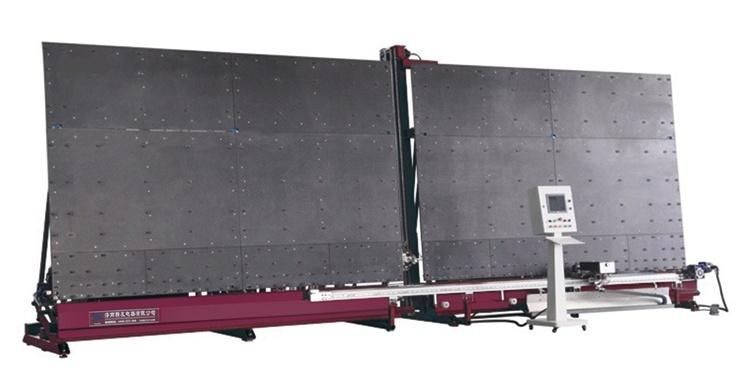

Automatic Sealing Robot for Double Glazing Glass Making Machine

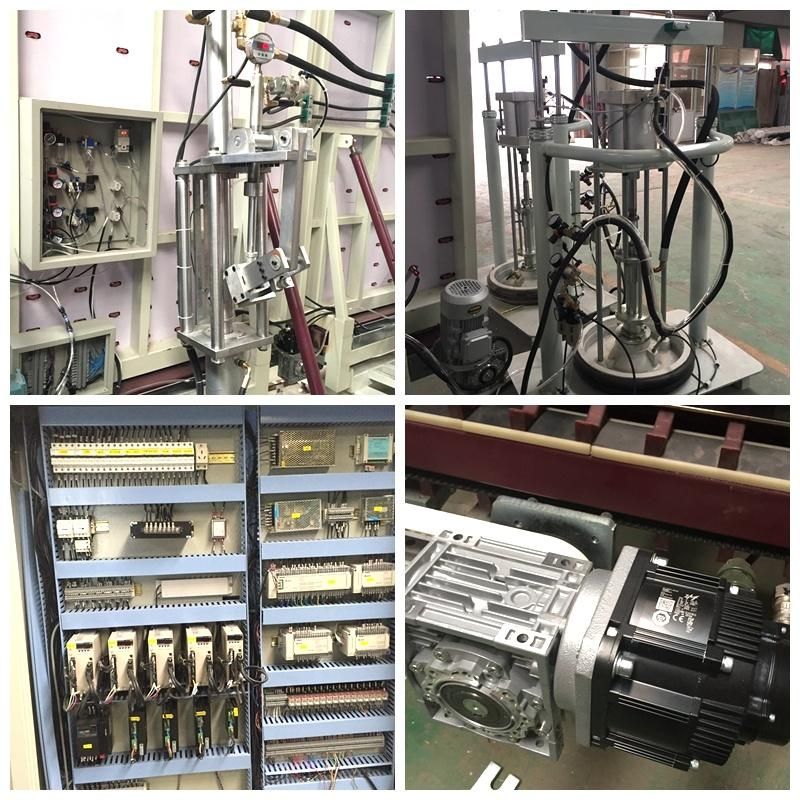

Machine feature:
1.The machine is suitable for glass deep processing enterprise ,high automation, Reduce labor intensity, save manpower,
improve production efficiency
2. Whole machine adopt man-machine touch screen interface, with memory function .
3.After coating sealant ,the glass edge and corner is full without air bubbles , smooth surface, no need to pare the corner
4. Using one/two sets of independent sealant supply system , one/two kinds of sealants switch fast ,in one-button operation
easily (Model B),save time to change sealant .
5.The width of machine is 1.5m ,small floor area, save space
6. The sections is one production line, it can prestore three pcs glass to improve the efficiency effectively
7.The smallest insulating glass size can be processed is 300*450mm
8.Equipped with anti blocking device in the mixer, easy to clean
9. Servo control system adopts world famous brand (Japan YASKAWA ), the performance is stable , counting speed is
fast ,sealant output with high precision ,surface with high smoothness .
10. Shaft transmission to make the glass being transferred smoothly with accurate positioning.
11. Special V type transmission belt to avoid the sealant sticking on the belt, ensure the glass edge clean , V type Block
is changeable
12. The key components are produced with high standardization and high precision, ensure the machine can be used
with long-term stability
13.Suitable for triple glazing .
14.Conveying wheel on backboard adopts embedded wheel ,to make sure the glass be transported smoothly
15.Equipped with high speed positioning function ,glass can be located accurately when transport fast.

Parameter:

Product model	JYT-2500
Power supply	380V/50HZ
Power	18kw
Air supply	0.6-0.8Mpa
Max. glass size	2500*3000mm
Min. glass size	300*450mm
Conveyor speed	5-40m/min
Dimension	1000*1500*3600mm
Weight	3000kg

Jinan Truepro is a manufacturer of window machine, insulating glass processing machine and curtain wall machine with
well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and
stylish designs, our products are extensively used in building trade and other industries. Hope we can cooperate with you.
We believe that "IT'S THE BEST THAT FITS MOST."
Every machine could be customized to meet your special requirement.





1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.

2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can send our engineers to repair your machines

3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation
training. All of our engineers have passport.

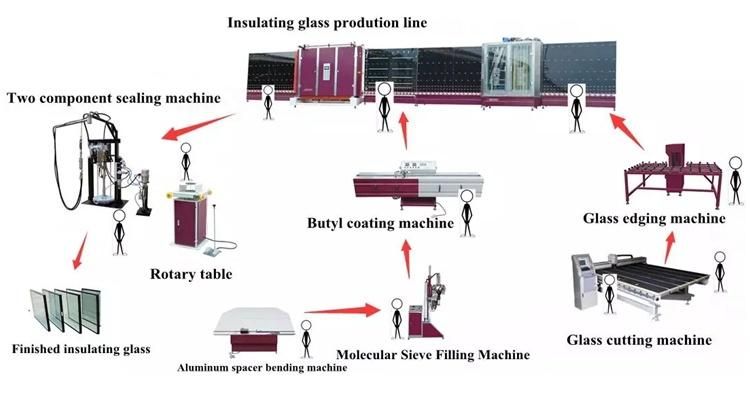

4. If I make Insulating Glass, how many basic machines do i need?
