Highest Quality Two Head Cutting Machine for Aluminum Window and Door Profile
JINAN YUEFENG MACHINERY CO., LTD.- Condition：New
- Automatic Grade：Automatic
- CNC or Not：not CNC
- Voltage：380V
- Input Power：4.5kw
- Air Pressure：0.5~0.8MPa
Base Info
- Model NO.：LJZ2-500x4200
- Air Consumption：200L,Min
- Spindle Speed：3200r,Min
- Cutting Length：360~4200mm(360~5000mm)
- Cutting Width：10~130mm
- Cutting Height：10~300mm
- Cutting Angle：90 45 67.5 Degree
- Saw Feeding Speed：0~3m,Min
- Saw Blade Standard：500X4.4X30xz120
- Overall Dimension：5500(6300)X1700X1600mm
- Transport Package：Plastic Cover or Wooden Cases
- Trademark：YUEFENG
- Origin：Jinan, Shandong, China
- Production Capacity：100 Sets Per Month
Description
Basic Info.
Model NO. LJZ2-500x4200 Air Consumption 200L/Min Spindle Speed 3200r/Min Cutting Length 360~4200mm(360~5000mm) Cutting Width 10~130mm Cutting Height 10~300mm Cutting Angle 90 45 67.5 Degree Saw Feeding Speed 0~3m/Min Saw Blade Standard 500X4.4X30xz120 Overall Dimension 5500(6300)X1700X1600mm Transport Package Plastic Cover or Wooden Cases Trademark YUEFENG Origin Jinan, Shandong, China Production Capacity 100 Sets Per MonthProduct Description

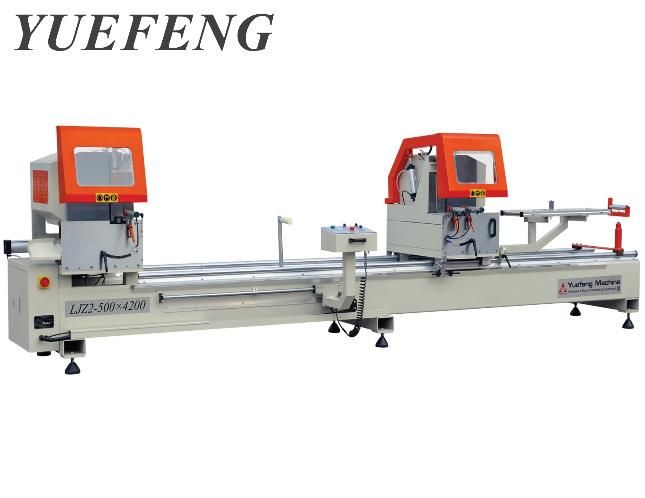

LJZ2-500×4200(5000) Double Mitre Saw
Two heads work independently or together.
Uniform speed feeding and smooth motion due to air-draulic damping cylinder.
Saw blade feeding system adopts imported linear guide pair, with high accuracy and smooth working.
Automatic protecting guards result convenience and safety.
Technical Parameter:
| Model | LJZ2-500×4200(5000) |
| Input voltage | 380V 50Hz |
| Input power | 4.5Kw |
| Air pressure | 0.5~0.8MPa |
| Air consumption | 200L/min |
| Spindle speed | 3200r/min |
| Cutting length | 360~4200mm(360~5000mm) |
| Cutting width | 10~130mm |
| Cutting height | 10~300mm |
| Cutting angle | 90° 45° 67.5° |
| Saw feeding speed | 0~3m/min |
| Saw blade standard | φ500×4.4×φ30×Z120 |
| Overall dimension | 5500(6300)×1700×1600mm |
