1000 Kexinda Galvanized Roof Tile Making Roll Forming Machinery

HEBEI XINNUO ROLL FORMING MACHINE CO., LTD.
  • Tile Type：Colored Steel
  • Certification：CE, ISO
  • Condition：New
  • Customized：Customized
  • Usage：Roof, Wall
  • Transmission Method：Machinery

Base Info

  • Model NO.：1000
  • Transport Package：Container
  • Specification：8800*1500*1600mm
  • Trademark：kexinda
  • Origin：Hebei
  • HS Code：8455221000
  • Production Capacity：30sets,Month

Description

Basic Info.

Model NO. 1000 Transport Package Container Specification 8800*1500*1600mm Trademark kexinda Origin Hebei HS Code 8455221000 Production Capacity 30sets/Month

Product Description

Model:1000 roll froming machine

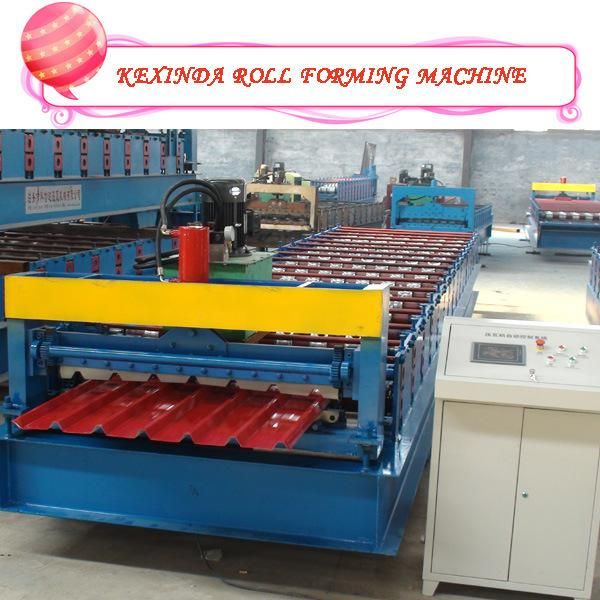

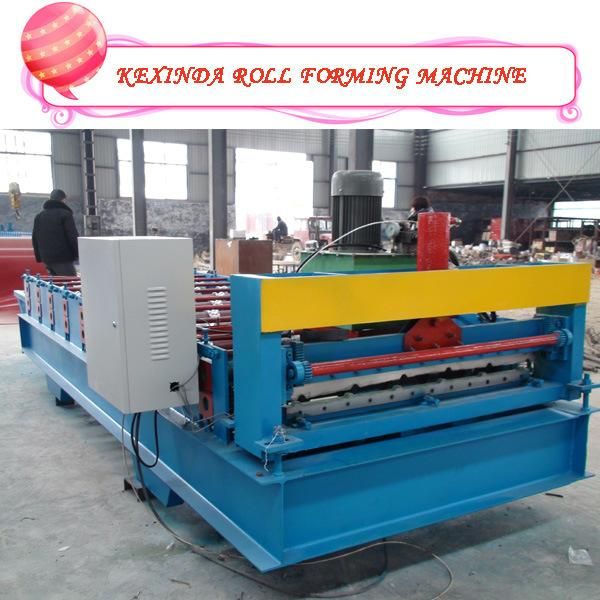

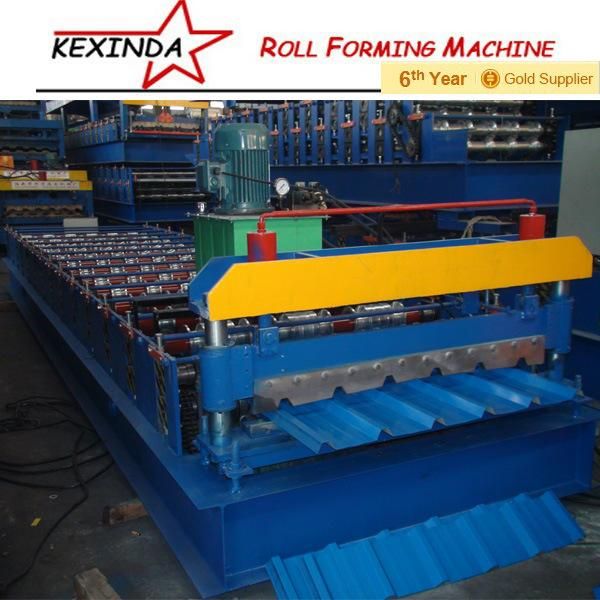

1000 Kexinda Galvanized Roof Tile Making Roll Forming Machinery1000 Kexinda Galvanized Roof Tile Making Roll Forming Machinery1000 Kexinda Galvanized Roof Tile Making Roll Forming Machinery

Configurations

Manual Uncoiler ,Guiding Platform ,Coil Strip Leveler ,Main Machine Of Roll Forming ,Electro-Motor, Glazed Tile Pressing Device ,Cutting Device ,Hydraulic Station ,PLC Control, Supporter Table.

Control System

PLC Delta Inverter

Main Frame

300mm H-Beam

Main Power

4 kw

Pump Power

3 kw

Power Supply

380V, 3-Phase,60Hz

Forming Speed

8-12m/min

Roll Station

16 stands

Roller Diameter

80mm

Hydraulic Pressure

10-12MPa

Forming Size

750mm

Feeding Thickness

0.3-0.8mm

Feeding Width

1000mm

Backboard Thickness

12mm

Chain Size

33mm

Cutter Standard

Cr12

Roller Standard

Cr12

Cr-Plating Size

0.05mm

Overall Size

7200×1300×1500mm

Total Weight

4T

All technical parameters can be changed,according to user s need.

Technical parameter:

1.The material of shaft is 45# steel and φ80mm.

2.Frame using 350mm channels.

3.The chain and sprocket wheel by 1 inch.

4.The cycloid planetary reducer :4#5.5kw

5.Pass:16 passes

6.The perfect thickness of colored steel:0.3mm--0.8mm

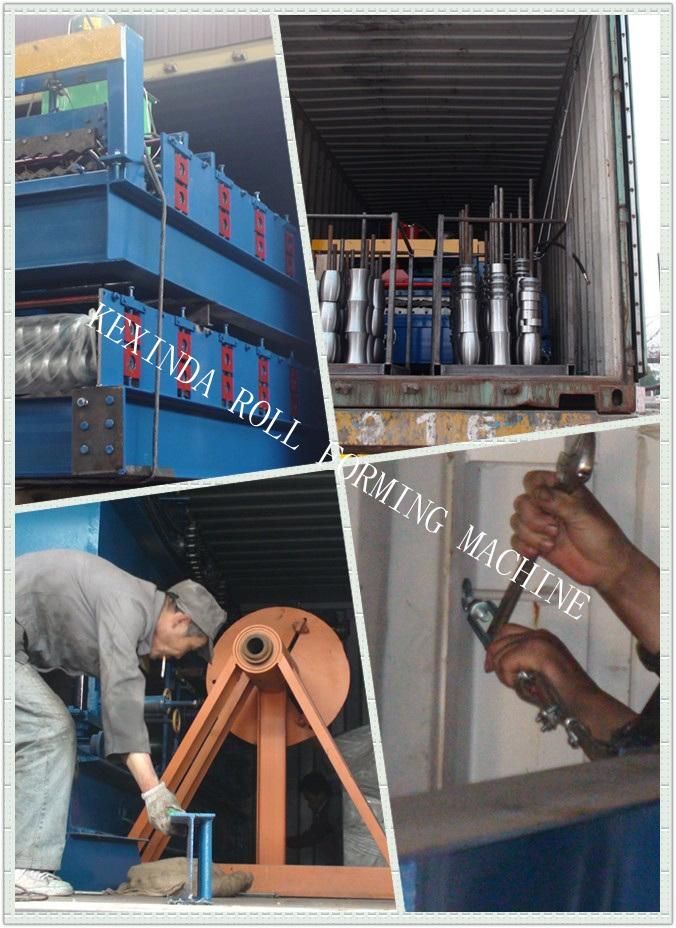

Packaging & Shipping

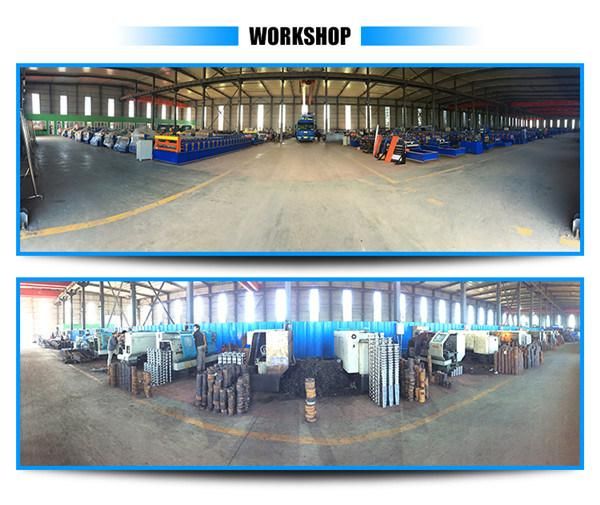

1000 Kexinda Galvanized Roof Tile Making Roll Forming MachineryCompany Information



1000 Kexinda Galvanized Roof Tile Making Roll Forming Machinery
1000 Kexinda Galvanized Roof Tile Making Roll Forming Machinery







 FAQ



1:How to play order:



Inquiry---confirm the profile drawings and price---confirm the PI---arrange the deposit or L/C---then OK



2:How to visit our company:



Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi(1 hour),then we can pick up you.



Fly to Shanghai Airport:By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5hours),then we can pick up you.



If any questions,you can call me mobile phone at any times:0086-15613790178



3:When we exported the machines:

We have beening making and exporting the machines since from the year of 1998.



4:If you want to get more pictures or videos of the machines,I can send them to you by Email or Skype
