Double Layer Roll Forming Machine
HEBEI XINNUO ROLL FORMING MACHINE CO., LTD.- Tile Type：Colored Steel
- Certification：CE, ISO
- Condition：New
- Customized：Customized
- Usage：Roof, Wall, Double Layer Roof Forming Machine
- Transmission Method：Electric
Base Info
- Model NO.：double layer roll forming machine
- Color：as You Like
- Trade or Factory：Factory
- Guarantee：1 Year
- Life Time：10 Years
- Service：Provide Engineer to Install The Machines
- Brand Name of PLC：as Customer Request
- Drawing：Designed as Customer Request
- Power：38V, 50Hz, 3 Phrase or as Your Like
- Decoiler Type：Manul, Electric, Hydraulic
- Control System：PLC
- Transport Package：Main Machine Nude Packing with Plastic Film
- Specification：8800*1500*1500
- Trademark：KXD
- Origin：China
- HS Code：8455221000
- Production Capacity：30 Sets Per Month
Description
Main parameter of glazed tile and IBR
botou kexinda Glazed tile & roof panel roll forming
1
Suitable to process
Color steel plate
2
Width of the plate
1000MM+1000MM
3
Thickness of the plate
0.3-0.8mm
4
De-coiler
Manual one, can load 5 tons raw material
5
Rollers for forming
13+16rows
6
Diameter of the roller
80mm
7
Rolling material
Carbon Steel 45#
8
Main motor power
4kw
9
Productivity
8-12m/min
10
Cutting method
Hydraulic mould cutting
11
Material of the cutting blade
Cr12
12
Hydraulic cutting power
3kw
13
Processing precision
Within 2.00mm
14
Control system
Delta PLC control
15
Side panel of machine
14mm
16
Main structure of the machine
300 H steel
17
Weight
About 6.2 T
18
Dimensions
8.5*1.45*1.1m
19
Voltage
380V 50Hz 3phases

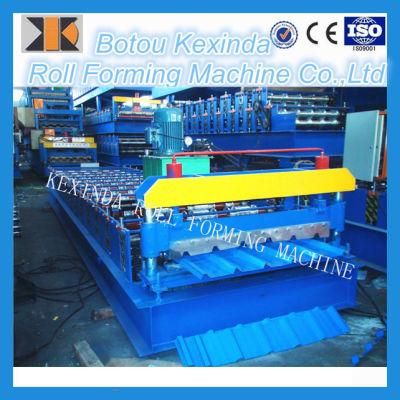

3.the picture of the Glazed tile & roof panel roll forming
4.Packaging & Shipping
Main machine is nude, the computer control box is packed with wooden fram
5.FAQ
1:How to play order: Inquiry---confirm the profile drawings and price----confirm the PI---arrange the deposit or L/C---then OK
2:How to visit our company:
Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
If any questions,you can call me mobile phone at any times:
3:When we exported the machines:
We have beening making and exporting the machines since from the year of 1998.
4:If you want to get more pictures or videos of the machines,I can send them to you by Email or SKype.
