• Model NO.：QT6-15
• Hour Capacity：1080-1440PCS,Hour
• Pallet Size：850*680mm
• Color：Client Requirement
• Vibration Frequency：2800-4500 ( R,Min)
• Block Type：Hollow, Solid, Paver Blocks, Curbstone
• Molding Cycle：15-20s
• Rated Pressure：16MPa
• Power：31.25kw
• Transport Package：Nude Package
• Specification：7100*1500*3000mm
• Trademark：SHIYUE
• Origin：China, Shandong
• HS Code：8474802000
• Production Capacity：5000 Sets

Basic Info.

Model NO. QT6-15 Hour Capacity 1080-1440PCS/Hour Pallet Size 850*680mm Color Client Requirement Vibration Frequency 2800-4500 ( R/Min) Block Type Hollow, Solid, Paver Blocks, Curbstone Molding Cycle 15-20s Rated Pressure 16MPa Power 31.25kw Transport Package Nude Package Specification 7100*1500*3000mm Trademark SHIYUE Origin China, Shandong HS Code 8474802000 Production Capacity 5000 Sets

Product Description

Introduction
1) QT6-15 concrete machine block to make money according to the standard of intenational.
2) The vibration system contains platform vibration and mould vibration, so the products is very close-grained and produced quickly.
3) Machine frame: Maganese steel with China national standard.
4) PLC intelligent control. Man-machine interface, control system equipped with complete logic control, production program, malfunction diagnosis system and remote control function.
5) The computer is of fault diagnosis system. Warning signal is propitious to eliminate the fault. Combine with long-distance controlling system, it can achieve scrutiny, controlling, diagnosis.
Parameters

Machine dimmenssion	7100*1500*3000mm
Total weight	6000KGS
Main Vibration	platform vibration
Vibration frequency	4500-5100r/min
Pallect size	850*680mm
Overall power	31.25KW
Vibration force	60KN
Molds	As customer's requirement
Forming cycle	15-20s
Rated pressure	21MPA hydraulic pressure
Mixer	JS500 mixer
Machine Workplace	200-300m2
Voltage	220V/380V/415V as customer local voltage needs
Finished blocks	hollow blocks, paver,solid blocks, curbstone,porous blocks,stander bricks etc

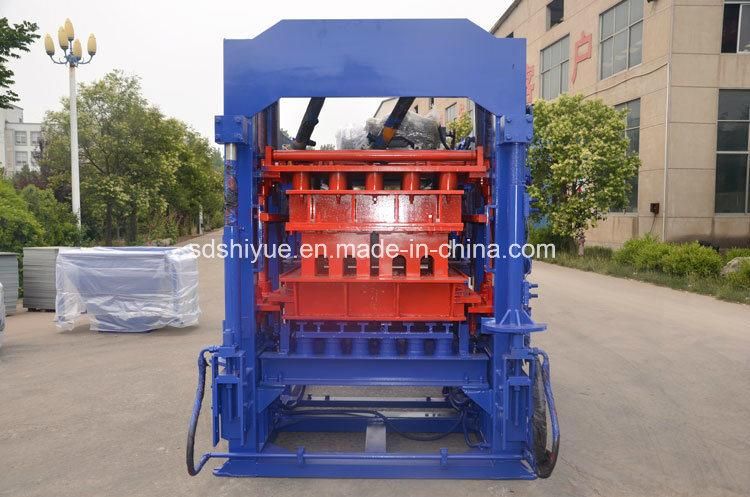

Pictures

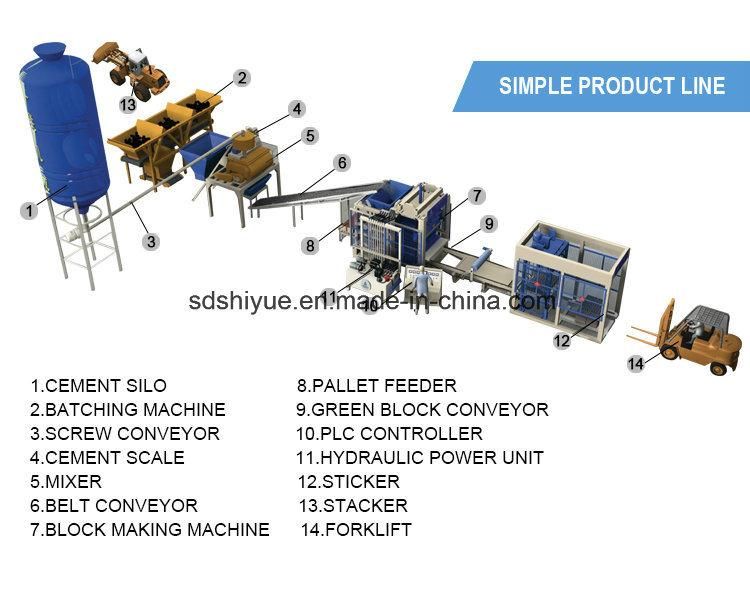

Production line

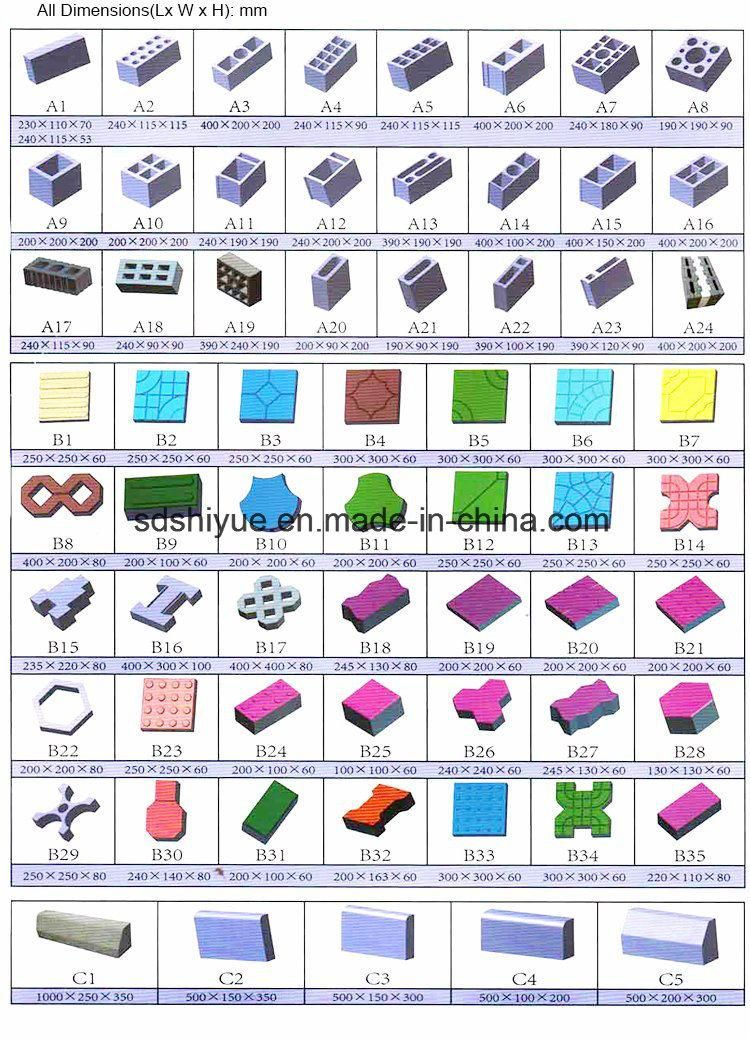

Block sample
Shipping and delivery

1. The whole brick machine production line equipment is mainly the full container sea shipping,

2. Brick machine equipments finish manufacturing and testing, next to clean up, and then do another paint protection,

3. Before shipment to use plastic film winding, wrapped the entire brick machine in case of water or moisture,

4. Then load brick machines into the container by forklift,

5. During loading to tighten the machine with reinforcement ring in container, so as to avoid the damage by transport bumps on the brick machine.

Our service

Pre-sale
(1) Professional suggestions (raw material matching, machine selection, plan
The condition of build factory, feasibility analysis for brick machine production line)
(2) Device model choice (recommend the best machine according to the raw material,
capacity and the size of brick)
(3) Welcome to visit our factory and production line anytime

Sale:
(1) Update the production scheduling in time
(2) Quality supervision
(3) Product acceptance
(4) Shipping on time

After-sale:
(1) The engineer will guide to carry out the plant at the clients side.
(2) Set up, fix,and operate
(3) Will not stop training the operator until they are satisfied at clients side.
(4) 24 hours service
(5) Recall clients regularly ,get feedback in time,keep well communication with each other.

Our factory
Shiyue Machinery is located in Linyi,Shandong. With advanced technologies and rich experiences on manufacture. We have specialized in stationary block machine,mobile block machine, clay block machine, crusher,pipe making machine, pole making machine,concrete mixing plant etc.After 27-year's effort,we have receive good reputation from many countries such as India, the United States, Russia, the United Kingdom, the Philippines, Canada, Australia, South Africa, Pakistan, Brazil, Malaysia, Sri Lanka, Mexico, Nigeria, Kenya etc.What's more,our machines have won'Product patent award',and 'product innovation award' and so on.Shiyue machinery your best choice for your business



FAQ

1.Question:Does the machine could change mold?

Answer:Yes,this machine could change different kinds of mold.The machine could produce interlock, paver size depending on your local requirements.
2.Question:What is the electric voltage and rate?
Answer:Our local electric voltage is 380v, 3phase, 50hertz, the electricl voltage can be revised according to local situation.
3.Question:How about the service life of this machine?
Answer:This machine could work for about 6-10 years if your side maintain well.
4.Question:What's your machine warrenty?
Answer:12 months guarantee,we send more spare parts for you when shipping machine to you.
5.Question: The mode of transportation.
 Answer: by sea, by land or by rail according to customer local need
