• Model NO.：686 floor deck machine
• Warrenty：1 Year
• Vlotage：380V
• Color：as Your Need
• Weight：14t
• Transport Package：Simple Plastic Film Protection
• Specification：14000*2000*1550mm
• Trademark：Kexinda
• Origin：Hebei China
• HS Code：220175181
• Production Capacity：30 Sets Per Month

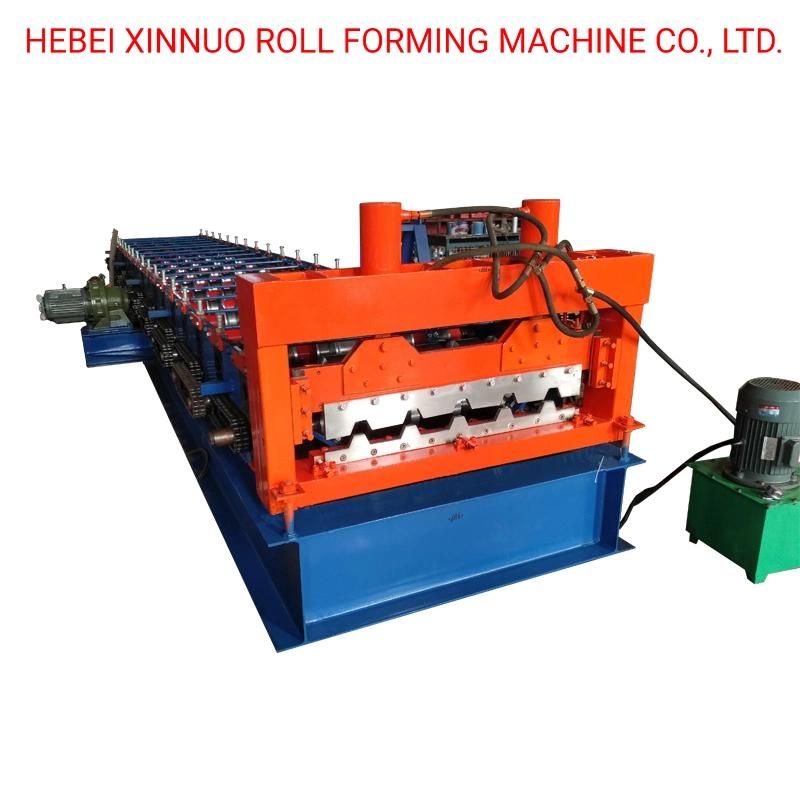

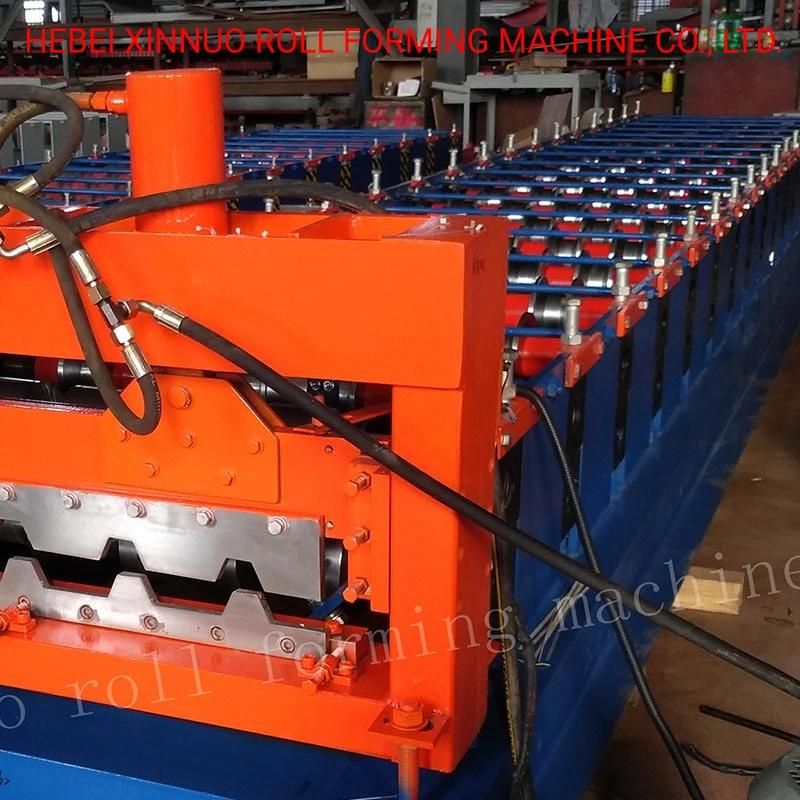

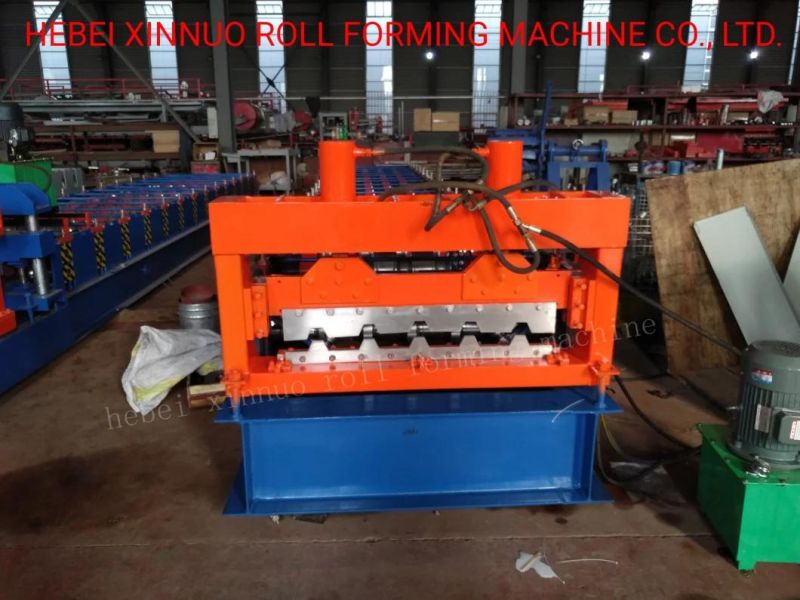

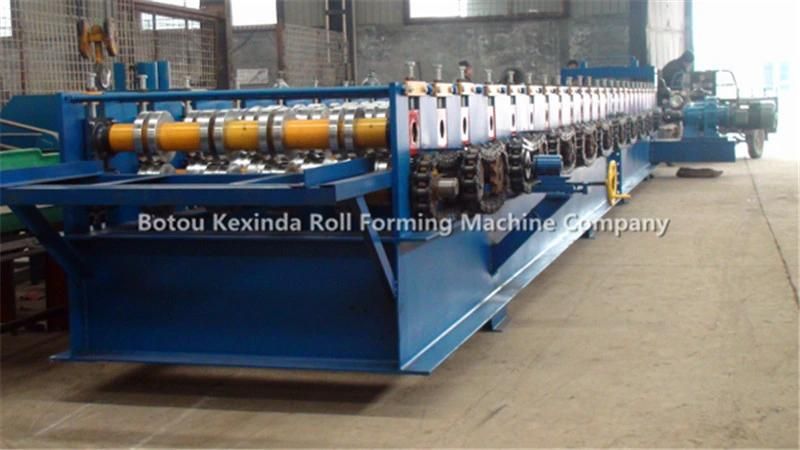

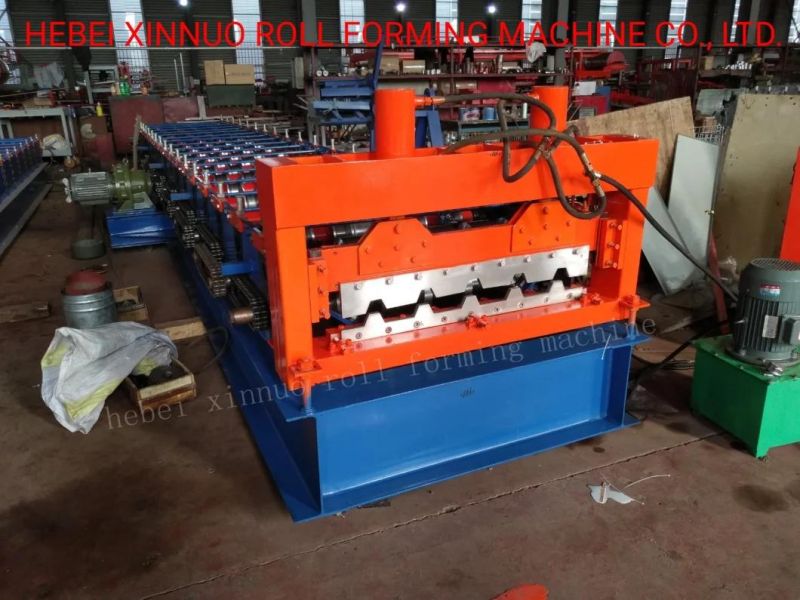

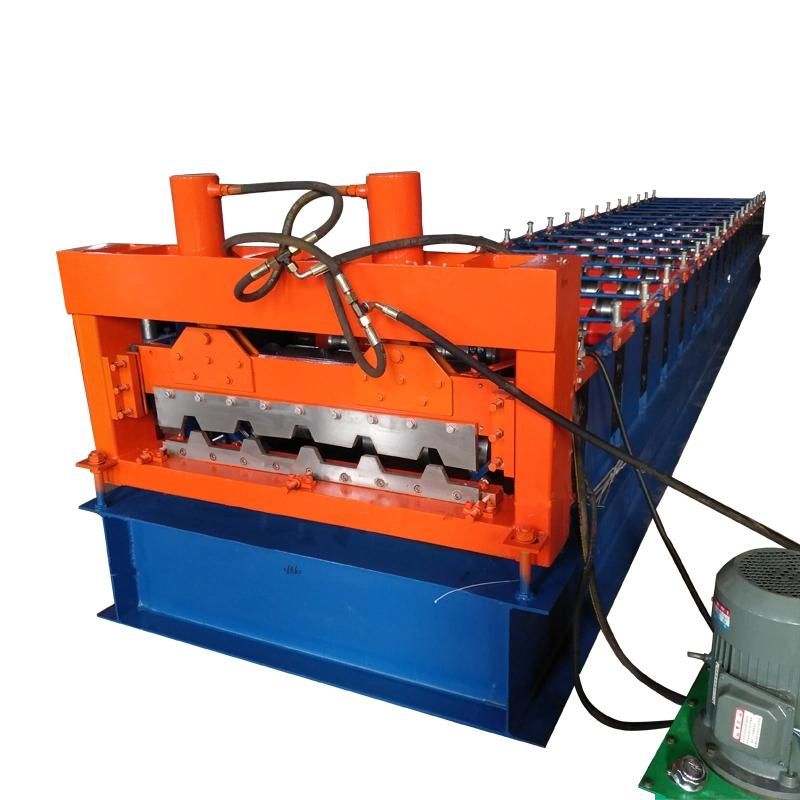

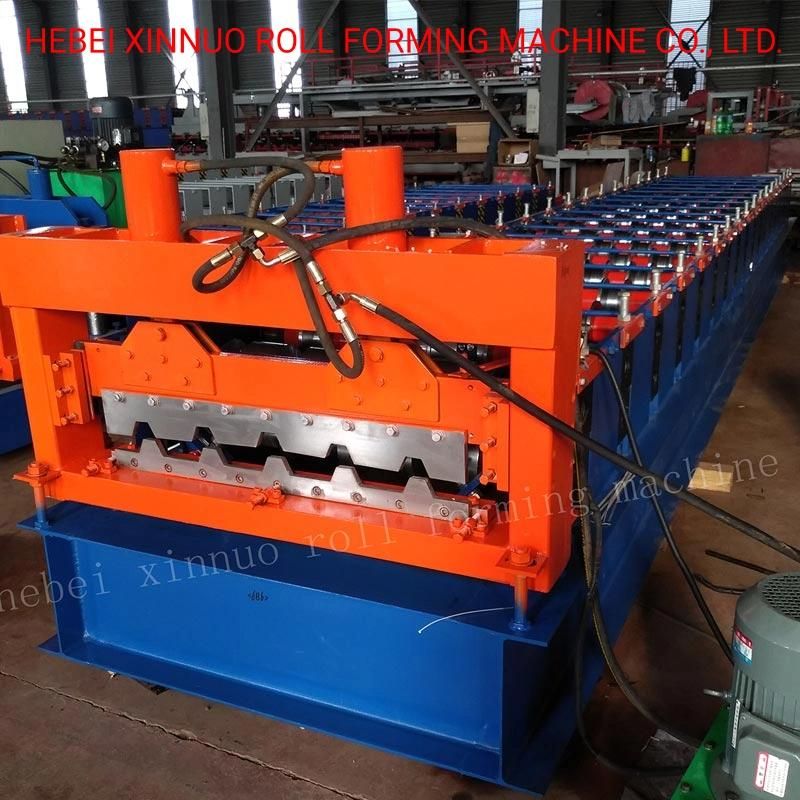

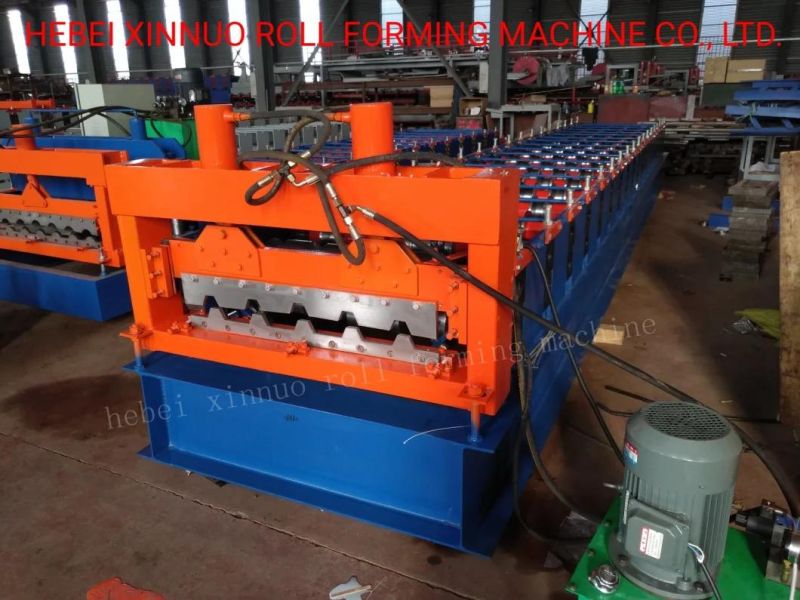

         Main parameters of 720 deck floor making machine

1

Suitable to process

Color steel plate, galvanized sheet,aluminum coils and etc.

2

Width of the feeding material

1000mm

3

Roller station

22 rows

4

Thickness of feeding material

0.8-1.5mm

5

Productivity

8-12m/min

6

Rollers' material

45# forging steel

7

Diameter of shaft

95 mm

8

Weight

About 14 T

9

Size

14.0*1.55*1.65m

10

Voltage

380V 50Hz 3Phase

11

Side plate thickness

20mm steel plate

12

Structure frame

450mm H steel

13

Motor power

18.5+5

FAQ:
1:How to play order: Inquiry---confirm the profile drawings and price----confirm the PI---arrange the deposit or L/C---then OK

2:How to visit our company:

Fly to Beijing airport:   By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.

Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao  to Cangzhou Xi(4.5 hours),then we can pick up you.

If any questions,you can call me mobile phone at any times

3:When we exported the machines:

We have beening making and exporting the machines since from the year of 1998.

Our service:

1:Engineers available to service machinery overseas.

2: Warranty: 12 months.

3:Technical guidance for free forever.
