PPGI PPGL Glazed Steel Roof Tile Roll Forming Machine Hangzhou

  • Tile Type:Glazed Steel
  • Certification:CE, ISO
  • Condition:New
  • Customized:Customized
  • Usage:Roof, Wall, Ceiling
  • Transmission Method:Machinery

Base Info

  • Model NO.:Steel Tile Roll Forming Machine
  • Type:Steel Tile Roll Forming Machine
  • Model Number:28-207-828 Steel Tile
  • Material:PPGI,PPGL,Pre-Painted Steel Sheet
  • Controller:Siemens PLC
  • Thickness:0.3-0.7mm
  • Yield Stress:235-345 MPa
  • Max.Forming Speed:15-18 M,Min
  • Total Motor Power:11 Kw
  • Warranty:1 Year
  • After-Sales Service Provided:Engineers Available to Service Machinery Overseas
  • Transport Package:Sea Worthy Fixed by Wire Rope, Wooden Blocks
  • Specification:CE Standard, ISO 9001-2008
  • Trademark:WILLING INT′L
  • Origin:China R. P
  • HS Code:84552210
  • Production Capacity:150 Sets Per Year


1)Manual Uncoiler1set2)Infeed Guide1set3)Roll Forming Station1set4)Post-cut Equipment1set5)Hydraulic Station1pc6)PLC Control Console1pc7)Product Support Table2pcs8)Spare Parts1box

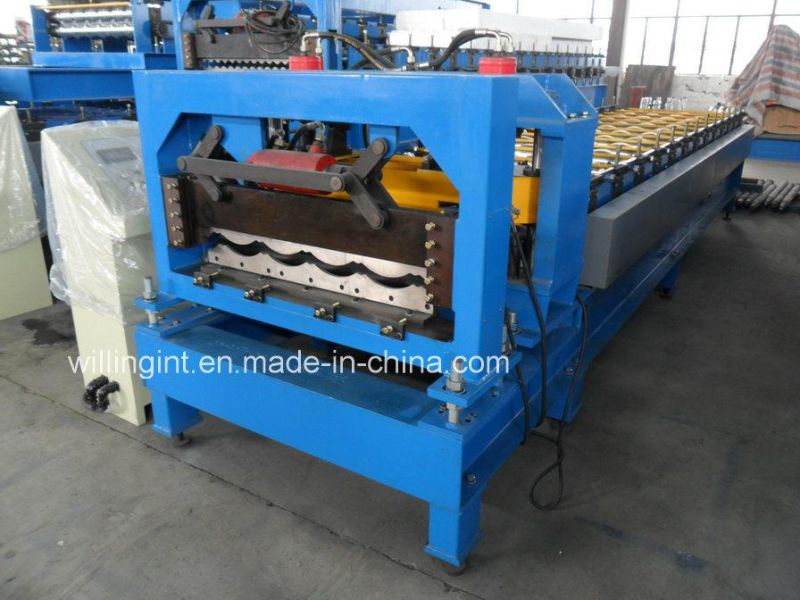

PPGI PPGL Glazed Steel Roof Tile Roll Forming Machine Hangzhou

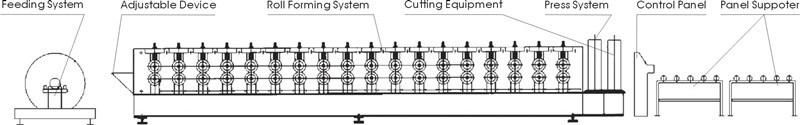

Components for the Machine:
The roll forming machine includes manual uncoiler unit, infeed guide, fixed position driven forming stations, pressing die, cutting equipment, hydraulic station, PLC console and manual unload product run out table.

PPGI PPGL Glazed Steel Roof Tile Roll Forming Machine Hangzhou

Material specificationAluminum, alu-zinc, galvanized and pre-painted galvanized steel.
Thickness0.3-0.7mm.(perfect is 0.4mm-0.6mm)
Main motor power5.5 kw.
Hydraulic station power5.5kw.
Feeding width1000mm.
Cover width828mm
Yield stress235Mpa (33KSI) ~ 345Mpa (50KSI).
Roll forming Speed15-18 m/min
Cutting Tolerance+/-2.5mm(length5000mm); +/-3.0mm(5000mm<length10000mm).
Manual UncoilerMax. Capacity: 5000kgs.
Coil inner diameter508mm.
Voltage380V,3 Phase,50HZ,Or As per customer's request.
Numbers of stands17 stations
Type of cuttingRoll-formed and length-set profile cutting.
3. Material of Main Equipment:
Roller MaterialHigh grade S45C forged steel, coated with hard chrome.
Active Shaft MaterialHigh grade S45C carbon wrought steel, diameter 76mm.
Electric ElementsPLC control console, touch screen and transducer, from Siemens, Germany.
Other elements, from Schneider Electric, Germany.
Cutter BladesCr12MoV steel with quenched treatment, hardness HRC58~61,
wear-resistance, good steel structure, long life.

Process Sketch:
Uncoiling Infeed guiding Roll forming →Pressing→Measure Length&Shearing →Sheet to Support Table

Packaging & Shipping
1.One 40ft container for loading one set machine with manual decoiler;
2.The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3.Spare parts and some small parts packed in plastic tooling box;
4.All Components Fixed by steel wire with Container.

PPGI PPGL Glazed Steel Roof Tile Roll Forming Machine Hangzhou

PPGI PPGL Glazed Steel Roof Tile Roll Forming Machine Hangzhou

  1. Q:Are you a manufacturer?
  2. A:Yes absolutely. Welcome a lot for your visiting to us.
  3. Q:What's the delivery time?

    A:Normaly will take 60days

  4. Q:Do you have after-sale support?

    A:Yes, we're always here for giving you advice and support for technical details since we have senior technician.

  5. Q:Is there quality control when manufacturing the lines?

    A:Yes, we have a group of team who will be responsible for quality control from laying off the raw material, processing the rollers and the other parts, make treatment on the roller surface and shaft, assembling, testing and packaging.

  6. Q:What's your strength comparing to the other supplier?

    A:We'll supplying you the best quality and service. We'll give you good advise beyond your requirements. The lines are easily for installation and with low mantenance requirements.
