Corrugated Roof Profile Sheet Making Machine/ Steel Roofing Roll Forming Machine
Cangzhou Nexus Machinery Co., Ltd.- After-sales Service：Provide Overseas Service
- Warranty：1 Year
- Tile Type：Colored Steel
- Certification：CE, ISO
- Condition：New
- Customized：Customized
Base Info
- Model NO.：NM718
- Usage：Roof, Wall
- Transmission Method：Electric
- Product Name：Corrugated Roof Profile Sheet Making Machine
- Raw Material：PPGI Sheet
- Feeding Width：1000mm,1219mm
- Thickness Range：0.3-0.8mm
- Machine Power：5.5kw+3kw
- Forming Speed：10-15m,Min
- Roller Station：16-22 Groups
- Operation Type：Touching Screen PLC
- Machine Weight：About 5 Tons
- Transport Package：Plastic Film & Steel Wire Fixed
- Specification：6500mm*1500mm*1500mm(L*W*H)
- Trademark：NEXUS MACHINERY
- Origin：Hebei, China
- HS Code：8455221000
- Production Capacity：30 Sets , Months
Description
Corrugated Roof Profile Sheet Making Machine/ Steel Roofing Roll Forming Machine
4. Equipment list :
Photos of Corrugated Roof Profile Sheet Making Machine/ Steel Roofing Roll Forming Machine for Reference:
More Photos for your choose:
ABOUT US:
Cangzhou Nexus Machinery Co.,Ltd is experienced manufacturer & exporter of cold roll forming machine with ISO quality system.
Our R&D department is staffed with senior engineers who has more than 20 years experience in metal forming machine industry, so we are able to assist customers with professional designing and solution.
Our range of products: roof tile roll forming machine, cladding roll forming machine, metal decking roll forming machines, C/U/Z/W/L steel purlin roll forming machine etc. We also can supply steel coils, roof panels to suit diverse requirements of our global customers.
Today, we have exported our machines to America, Chile, Mexico, Bolivia, Brazil, Colombia, Argentina, Ecuador, Honduras, Fiji, Papua New Guinea, Kuwait, Syria, Oman, Saudi Arabia, U.A.E, Nigeria, Tanzania,Ethiopia, Gana, Guinea,South Sudan, Algeria, Niger, Philippines,Indonesia,India, Azerbaijan and Kazakhstan.
We have rich experience for cold roll forming machine solution,competitive price and excellent service. We will continue to do our best to supply perfect products and service for customers. Invite you to contact us for further information.
1
Suitable to process
Color steel plate
2
Width of the plate
1000mm
3
Thickness of the plate
0.3-0.8mm
4

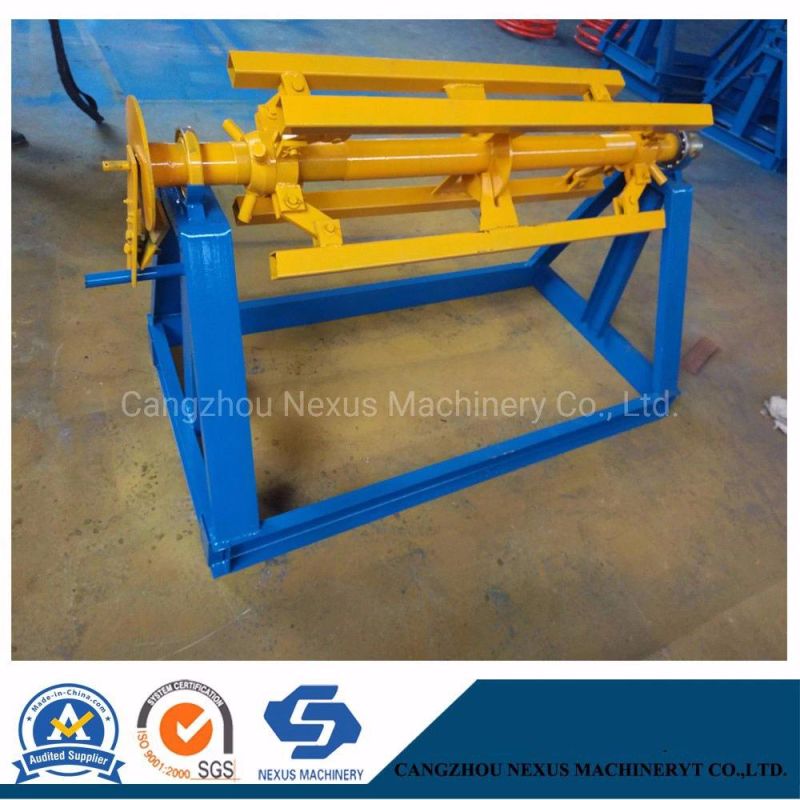

De-coiler
Manual one, can load 5 tons raw material
5
Rollers for forming
14 rows
6
Diameter of the roller
80mm
7
Rolling material
Carbon Steel 45#
8
Main motor power
4kw
9
Productivity
8-12m/min
10
Cutting method
Hydraulic mould cutting
11
Material of the cutting blade
Cr12
12
Hydraulic cutting power
3kw
13
Processing precision
Within 1.00mm
14
Control system
Delta PLC control
15
Side panel of machine
14mm
16
Main structure of the machine
300 H steel
17
Weight
About 4.6T
18
Dimensions
7.5*1.6*1.2m
19
Voltage
380V 50Hz 3phases(changeable as needs)
20
Certificate
CE/ISO
4. Equipment list :
| No. | Product Name | QTY |
| 1 | 5T Manual decoiler | 1 |
| 2 | Corrugated Roof Profile Sheet Making Machine/ Steel Roofing Roll Forming Machine (Includes Hydraulic cutting, PLC computer, Electrical cabinet, Hydraulic system) | 1 |
| 3 | Passive Output table | 2 |
| Sum | 4 |

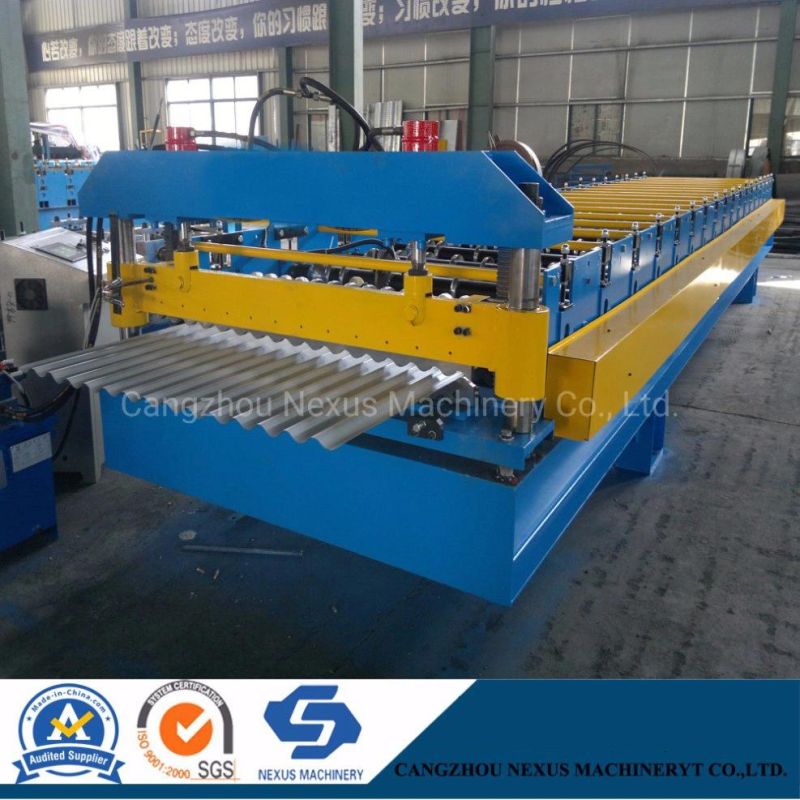

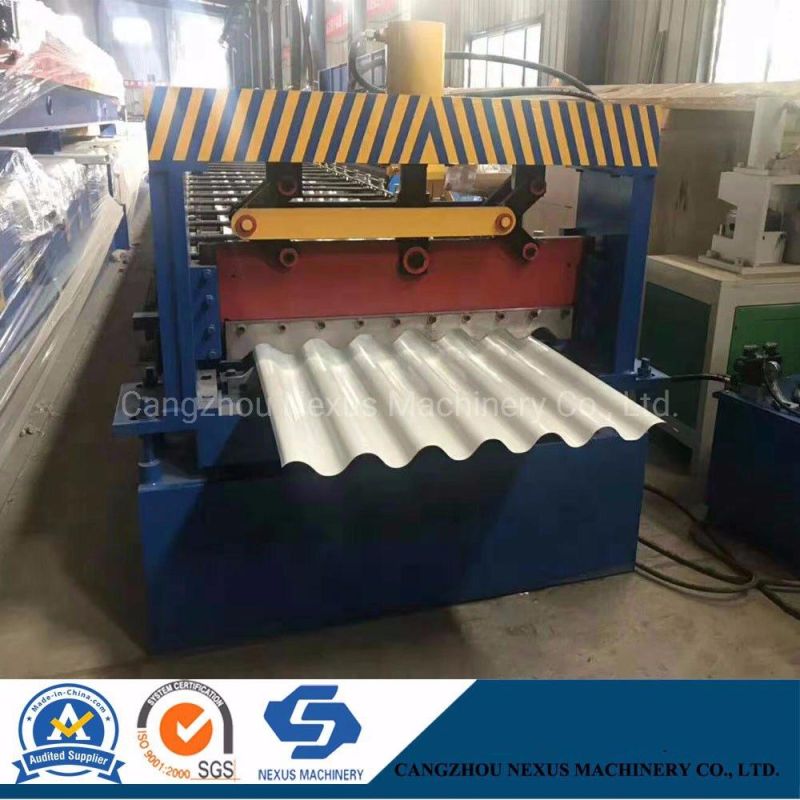

Photos of Corrugated Roof Profile Sheet Making Machine/ Steel Roofing Roll Forming Machine for Reference:
More Photos for your choose:
