• Model NO.：NM663
• Product Name：Canton Fair Metal Roofing Tile Roll Formed Machine
• Raw Material：PPGI ,Gl, Aluminum Sheet
• Thickness Range：0.3-0.8mm
• Machine Power：5.5kw+3kw
• Roll Forming Station：16 Stations
• Machine Weight：About 5 Tons
• Drive Type：Chain Transmission
• Shearing Type：Hydraulic
• PLC Operation：Touching Screen
• Warranty：12 Months
• Transport Package：Plastic Film & Steel Wire Fixed
• Specification：6500mm*1500mm*1500mm(L*W*H)
• Trademark：NEXUS MACHINERY
• Origin：China
• HS Code：8455221000
• Production Capacity：30 Sets , Months

Basic Info.

Model NO. NM663 Product Name Canton Fair Metal Roofing Tile Roll Formed Machine Raw Material PPGI /Gl/ Aluminum Sheet Thickness Range 0.3-0.8mm Machine Power 5.5kw+3kw Roll Forming Station 16 Stations Machine Weight About 5 Tons Drive Type Chain Transmission Shearing Type Hydraulic PLC Operation Touching Screen Warranty 12 Months Transport Package Plastic Film & Steel Wire Fixed Specification 6500mm*1500mm*1500mm(L*W*H) Trademark NEXUS MACHINERY Origin China HS Code 8455221000 Production Capacity 30 Sets / Months

Product Description

Canton Fair Metal Roofing Tile Sheet Roll Formed Machine/Glazed Tile Roll Forming Line

The Panels made by our Roll Forming Machine have beautiful appearance and bright color.

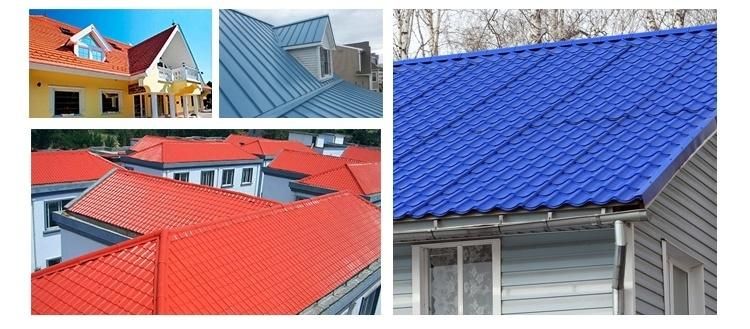

They are widely used in gardens, factories, resorts, hotels, exhibition halls, vacationlands, ancient architectures and modern villas.

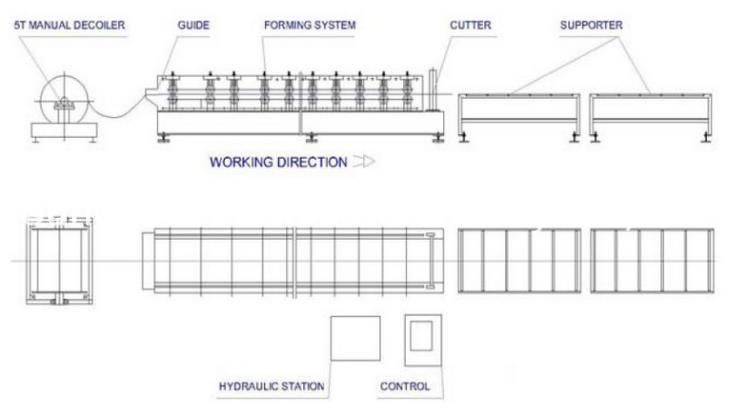

1. Processing flow diagram of machine:

Decoiler→ Feeding →Roll forming →Measure length→ Hydraulic stepping→Hydraulic cutting →Output table


2. Profile Drawings for Reference:


3. Technical parameters:


Main motor power	5.5kw
Drive	1'' single chain
Type:	Wall board
Main shaft dia	¢70mm
material	45# forge steel and quenched
Roller material	45# high grade forge steel ,chrome coated 0.05mm
Roll station	16 groups
Raw material	0.3-0.8mm
Coil width	1200mm
Working speed	3m--5m/min(Exclude cutting time)
Length Tolerance	±1.5mm
Weight of machine	About 5 ton
Size of machine	About 7500×1800×1500mm L x W x H
Color of machine	Yellow and Blue
Coder	Omron, made in Japan
Control	PLC Panasonic, made in Japan. 380V 50HZ,3phase (Also depend on client)
Computer operating panel	touching screen
Other electrical element	Schneider
Cutting	Hydraulic cutting. Auto cutting when reach the set length
Hydraulic power	3KW
Blade material	Cr12mov,quenched 58°-62°
Working pressure	16mpa
Cutting tolerance	+/- 1.0mm

4. Equipment list :


No.	Product Name	QTY
1	5T Manual decoiler	1
2	Canton Fair Metal Roofing Tile Sheet Roll Formed Machine/Glazed Tile Roll Forming Line   (Includes Hydraulic cutting, PLC computer, Electrical cabinet, Hydraulic system)	1
3	Passive Output table	2
Sum		4

5. Character of main structure:

1. The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and most of the connectors are screw which make the machine flexible and stronger.
2. All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
3. We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .
4. It is very easy to install the equipment and suitable for producing in the factory.
5. Low noise with high efficiency.

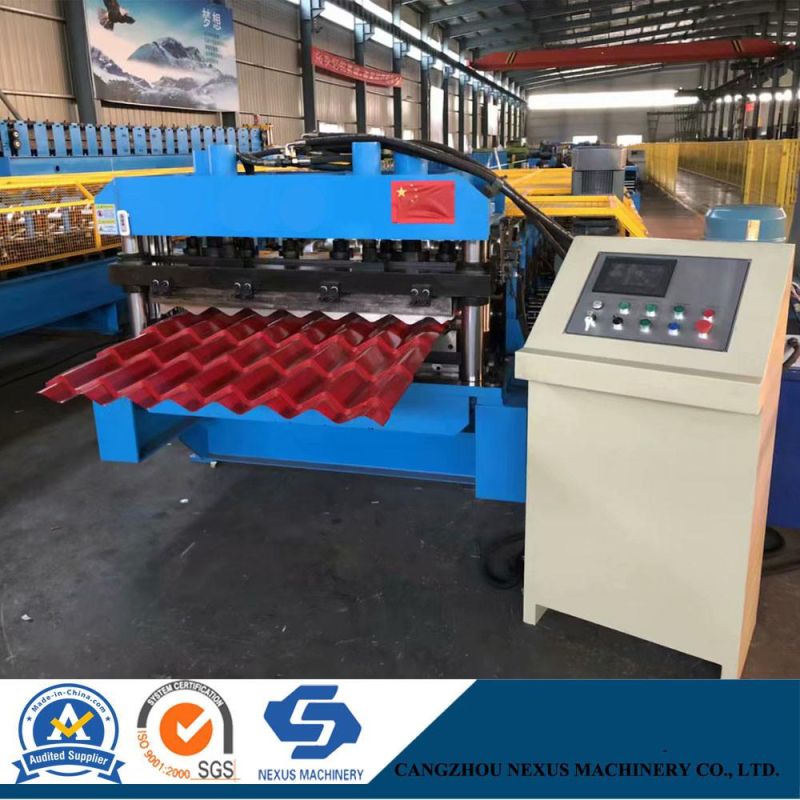

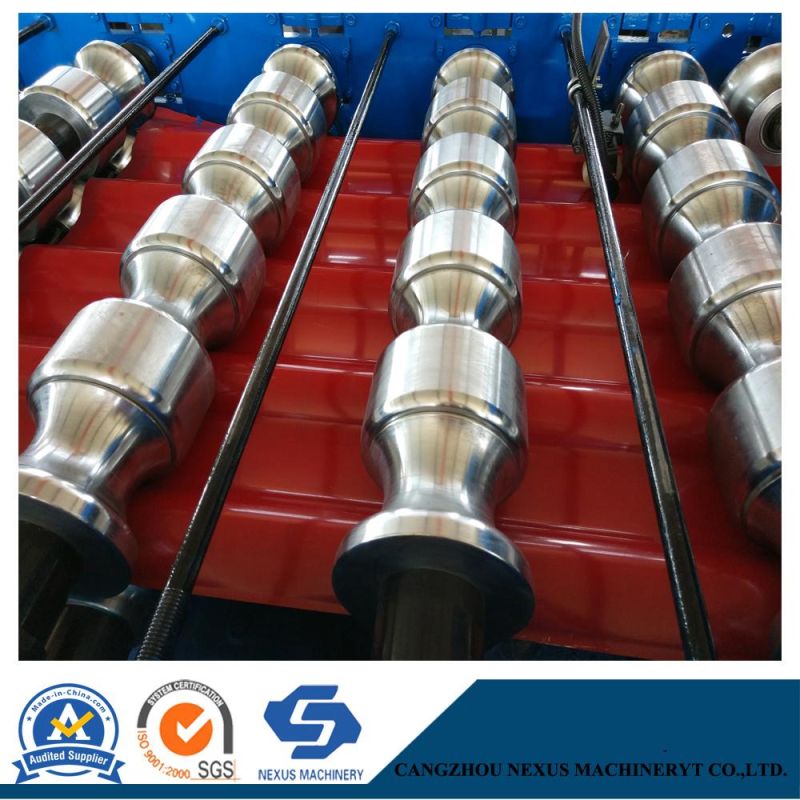

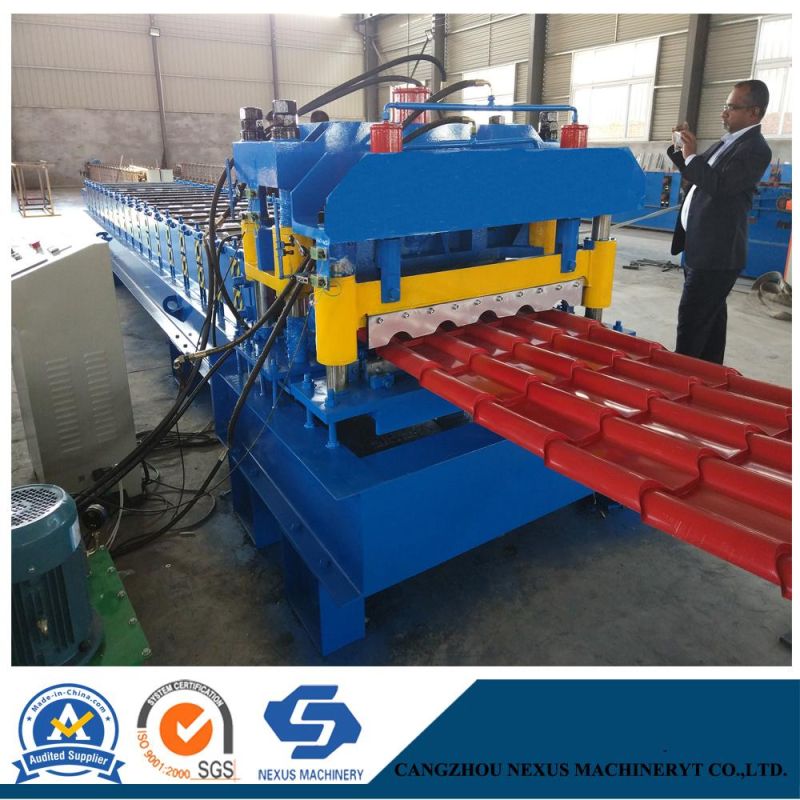

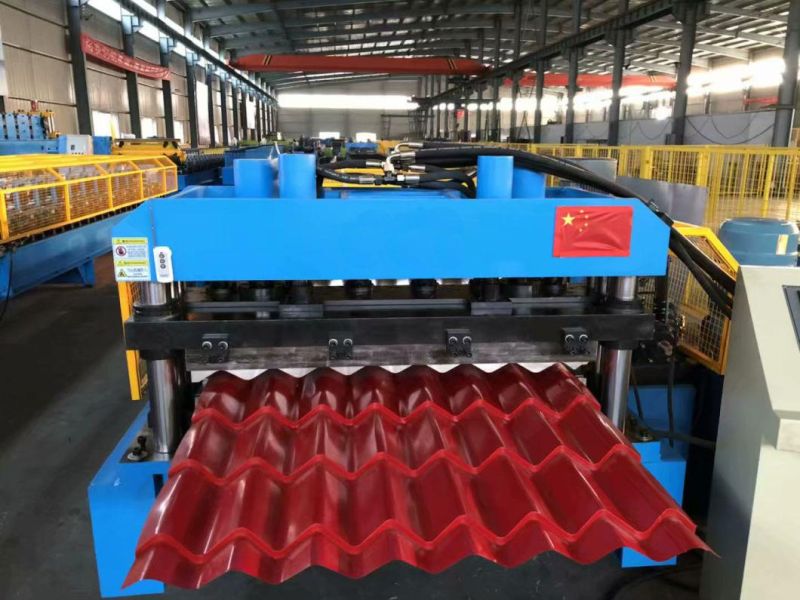

6. Photos of Canton Fair Metal Roofing Tile Sheet Roll Formed Machine/Glazed Tile Roll Forming Line for Reference:

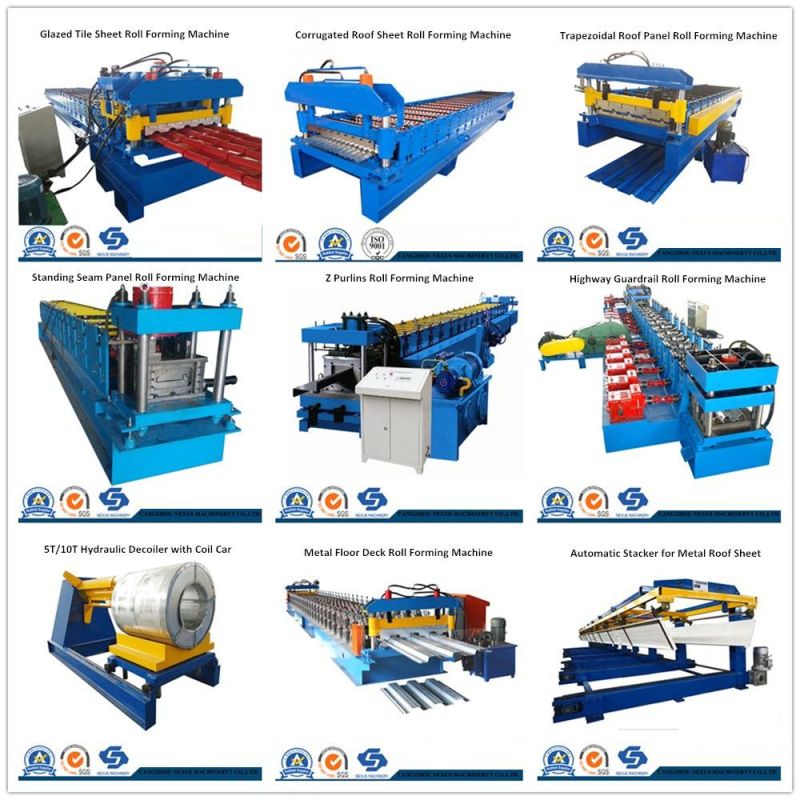

More Hot-Sale Products for your Choice:
