• Model NO.：NX1100
• Product Name：Russia Type Glazed Steptile Roofing Panel Machine
• Raw Material：PPGI ,Gl, Aluminum Sheet
• Thickness Range：0.3-0.8mm
• Machine Power：5.5kw+3kw
• Roll Forming Station：16 Stations
• Machine Weight：About 5 Tons
• Drive Type：Chain Transmission
• Shearing Type：Hydraulic
• PLC Operation：Touching Screen
• Warranty：12 Months
• Transport Package：Plastic Film & Steel Wire Fixed
• Specification：6500mm*1500mm*1500mm(L*W*H)
• Trademark：NEXUS MACHINERY
• Origin：China
• HS Code：8455221000
• Production Capacity：30 Sets , Months

 No.                   Item Specification    1    Steel coil Width

                       Max

1250/1220/1219/1000/914mm

 Material Ppgi/gi/gl/Alu-zinc Thickness

0.21-0.29mm

0.3-0.6mm

0.3-0.8mm

 HardnessNormal hardness/G550/HRB90   2       Forming Frame300-450mm Height Stations

As design of drawing

Main: 9-18 stations

 Rollers

High grade No 45# steel with

hard 0.05mm chromed

 ShaftHigh grade No 45# steel Diameter of shaft

As design of drawing

Main: 70-80mm

 Chain Main: 1-1.5inch   3    Control PLC control China/Taiwan/Japan/Germany brand Main motor Main: 3-11kw Language English or as your request    4   Cutting Cutter High grade Cr12 steel Cutting system Hydraulic Hydraulic pump Main: 3-7.5kw Cutter frame Steel plate welding    5   Decoiler Manual 5 Tons    6   Product Receiving table Manual

We can also talk and confirm other details before ordering. We can   give you suggestions.Choose us, own professional service.

4. Equipment list :


No.	Product Name	QTY
1	5T Manual decoiler	1
2	1100mm Russia Type Glazed StepTile Roofing Panel Roll Forming Machine  (Includes Hydraulic cutting, PLC computer, Electrical cabinet, Hydraulic system)	1
3	Passive Output table	2
Sum		4

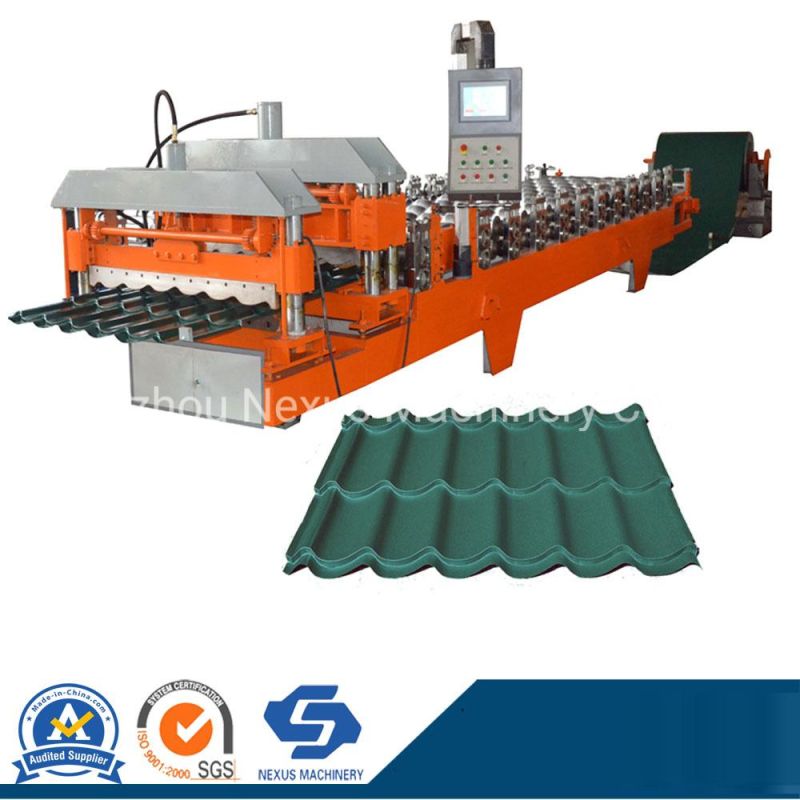

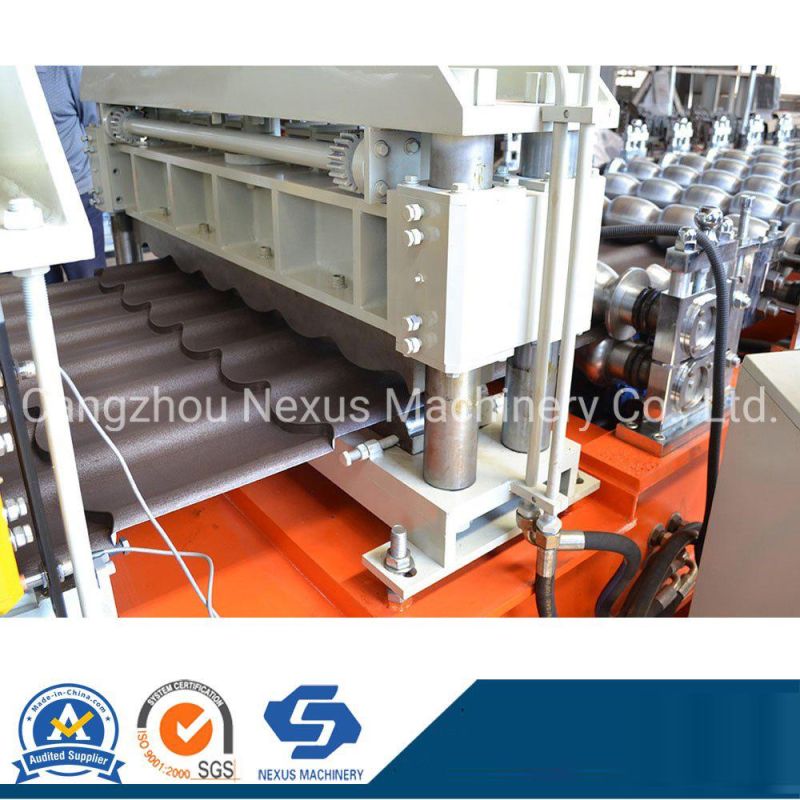

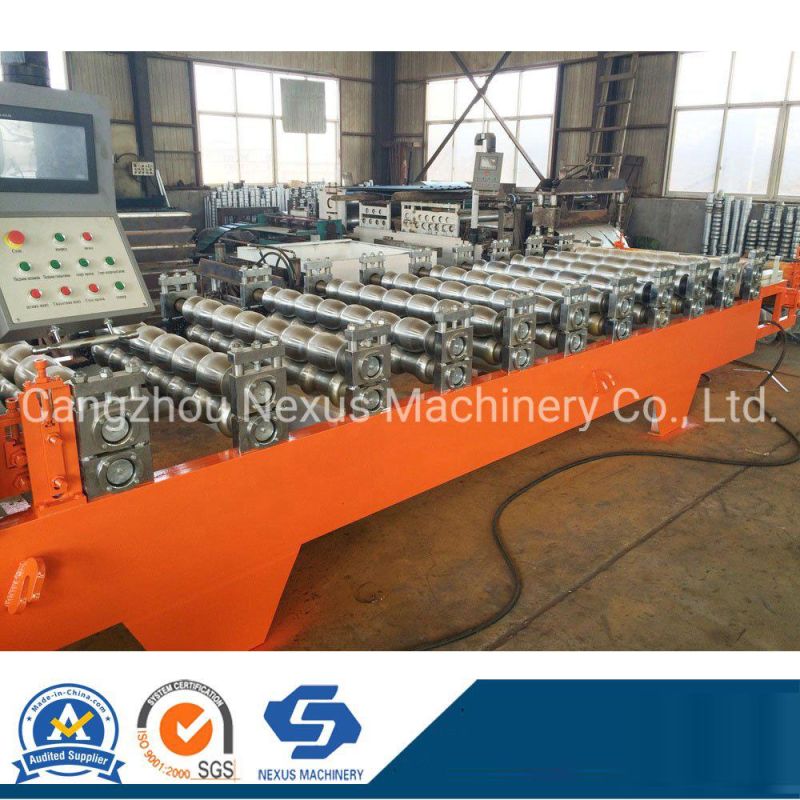

5. Photos of  1100mm Russia Type Glazed StepTile Roofing Panel Roll Forming Machine for Reference:







More Hot-Sale Products for your Choice:

ABOUT US:
Cangzhou Nexus Machinery Co.,Ltd is experienced manufacturer & exporter of cold roll forming machine with ISO quality system.
Our R&D department is staffed with senior engineers who has more than 20 years experience in metal forming machine industry, so we are able to assist customers with professional designing and solution.
Our range of products: roof tile roll forming machine, cladding roll forming machine, metal decking roll forming machines, C/U/Z/W/L steel purlin roll forming machine etc. We also can supply steel coils, roof panels to suit diverse requirements of our global customers.
Today, we have exported our machines to America, Chile, Mexico, Bolivia, Brazil, Colombia, Argentina, Ecuador, Honduras, Fiji, Papua New Guinea, Kuwait, Syria, Oman, Saudi Arabia, U.A.E, Nigeria, Tanzania,Ethiopia, Gana, Guinea,South Sudan, Algeria, Niger, Philippines,Indonesia,India, Azerbaijan and Kazakhstan.
We have rich experience for cold roll forming machine solution,competitive price and excellent service. We will continue to do our best to supply perfect products and service for customers. Invite you to contact us for further information.


FAQ:
1. How long the machine could be made?- Normally speaking, stacker machine could
be made within 45 working days. If you need machines in a hurry, we can make it for you less than a month.
2. How to visit your company?
-a.Fly to Beijing airport:   By high speed train From Beijing Nan to Cangzhou Xi (1 hour),
then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
3. Do you have after sales support?
-Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.
