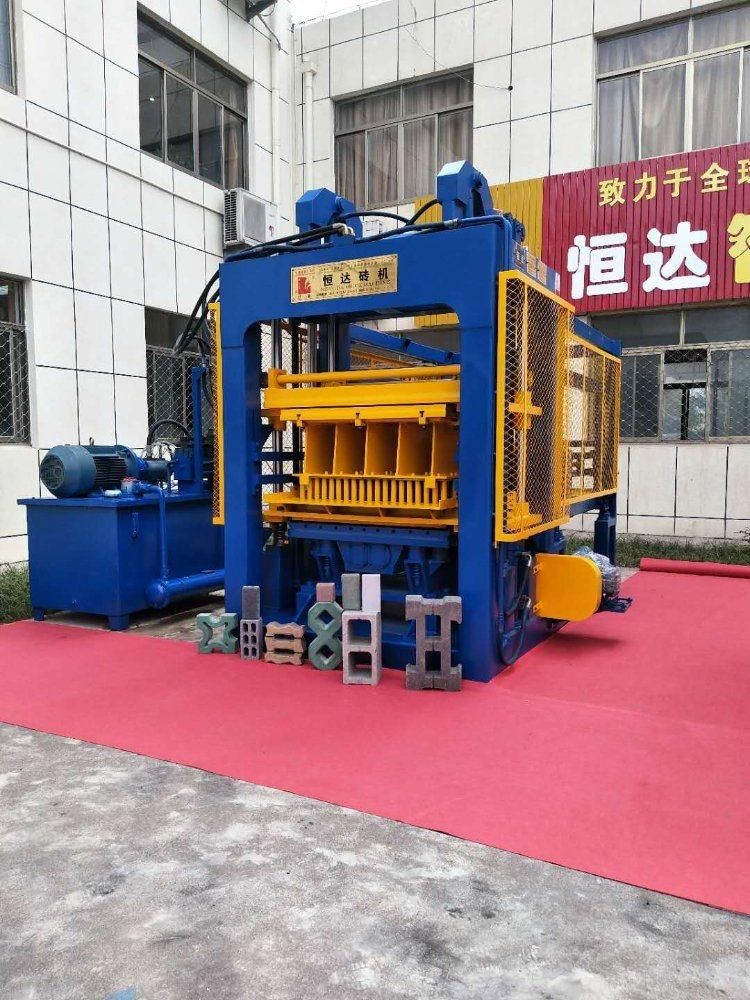

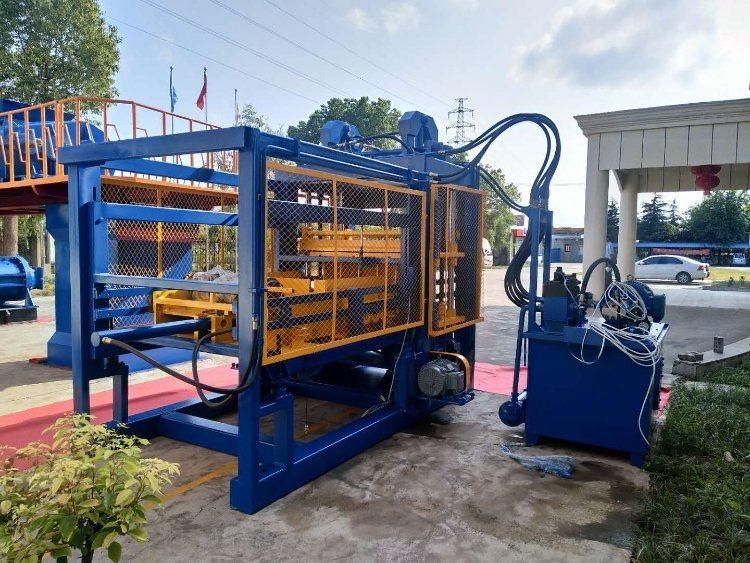

Hydraulic Automatic Cement Concrete Block Machine (QT10-15)
Nantong Hengda Non-Burned Machinery Engineering Co., Ltd.- Certification:CE, ISO
- Customized:Non-Customized
- Automatic Grade:Automatic
- Type:Vibration Molding
- Color:Blue
- Weight:15t
Base Info
- Model NO.:QT10-15
- Material:Steel
- Block Material:Cement, Sand, Stone
- Sales After Service:Lifetime
- Transport Package:Nude Packing
- Specification:ISO9001
- Trademark:HENGDA
- Origin:China(Mainland)
- HS Code:8474809090
- Production Capacity:Double Shifts Annual Capacity:165000m3
Description
Basic Info.
Model NO. QT10-15 Material Steel Block Material Cement, Sand, Stone Sales After Service Lifetime Transport Package Nude Packing Specification ISO9001 Trademark HENGDA Origin China(Mainland) HS Code 8474809090 Production Capacity Double Shifts Annual Capacity:165000m3Product Description
QT10-15 concrete block making machine is equipped with a frequency conversion vibration system. The system includes motors for top and bottom vibration generation, the paver block machine price utilizes the LG frequency converter. For reliable performance, the product is outfitted with LG PLC, as well as touch screen .Moreover, the hydraulic system of this paver block machine price is composed of integrated modular units from Germany and Italy.
The overall dimension (L x W x H):
5,200 x 2,300 x 2,960mm with facemix device
3,200 x 2,300 x2,960mm without facemix device
Concrete products: 50-300mm in height
Pallets size: 1,100x850mm
Main Technical Specifications of QT10-15 concrete block making machine
Dimension of host machine | 3500×2220×2850mm | Host machine power | 45.38KW |
Moulding area | 1025×810mm | Vibration force | 100KN |
Moulding period | 15-25S | Mixer model | JS750 |
The size of the pallet | 1350×900×30mm | General water Consumption | 12T/every day |
Weight of the host machine | 14T | ||
Voltage | 380V |
stacking area to arrange according your fact status.
(2) Production capacity
Size(LxWxH) | Pcs/Mould | Pcs/ Hr | Pcs/ 8 Hr |
400X100X200 | 20 | 3000-3600 | 24000-28800 |
400X150X200 | 14 | 2100-2520 | 16800-20160 |
400X200X200 | 10 | 1500-1800 | 12000-14400 |
400X250X200 | 8 | 1200 | 9600 |
240*115*53 | 54 | 8100-9720 | |
240*115*90 | 25 | 3750-4500 | |
Paver:200X100X60 | 35 | 5250 | 42000 |
Paver:200X165X60 | 20 | 3000 | 24000 |

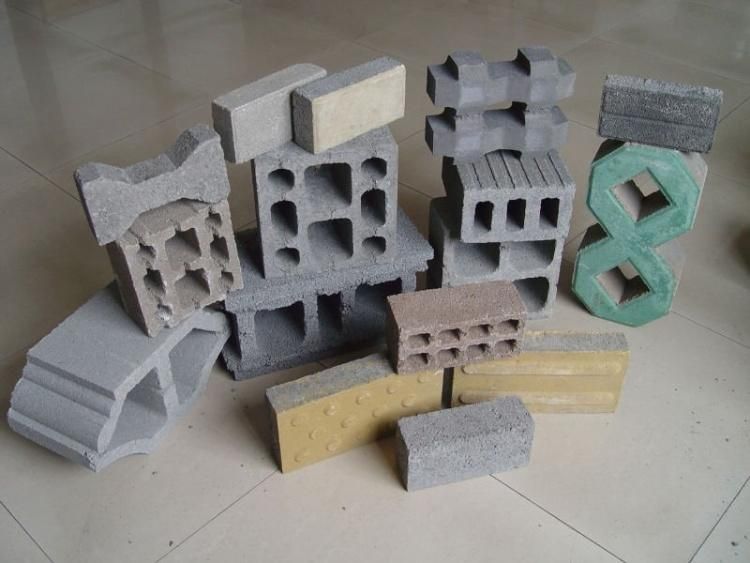

Block Samples

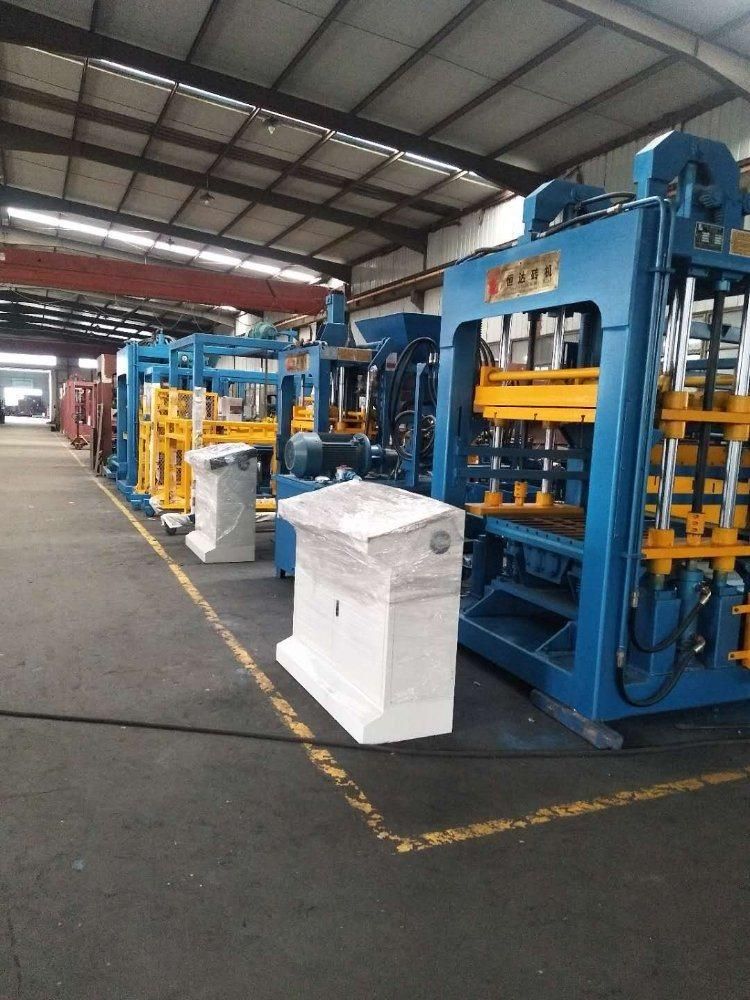

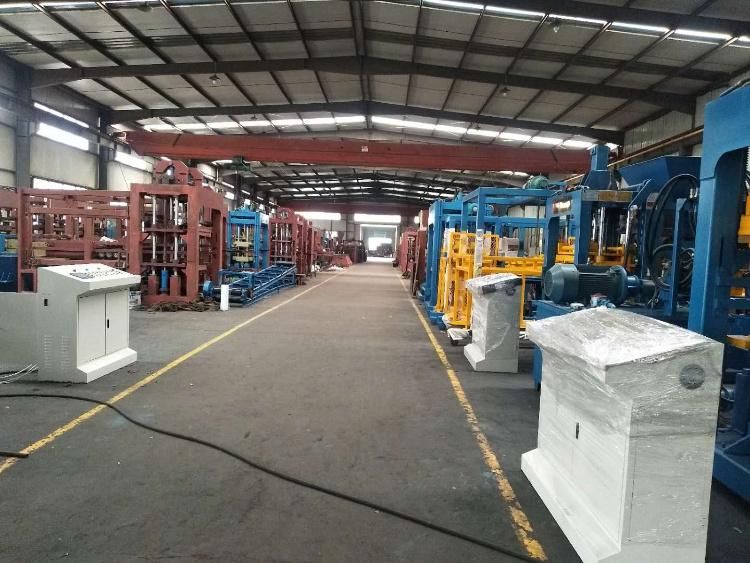

We are brick making machine and block making machine manufacturer, welcome to inspect our factory.
